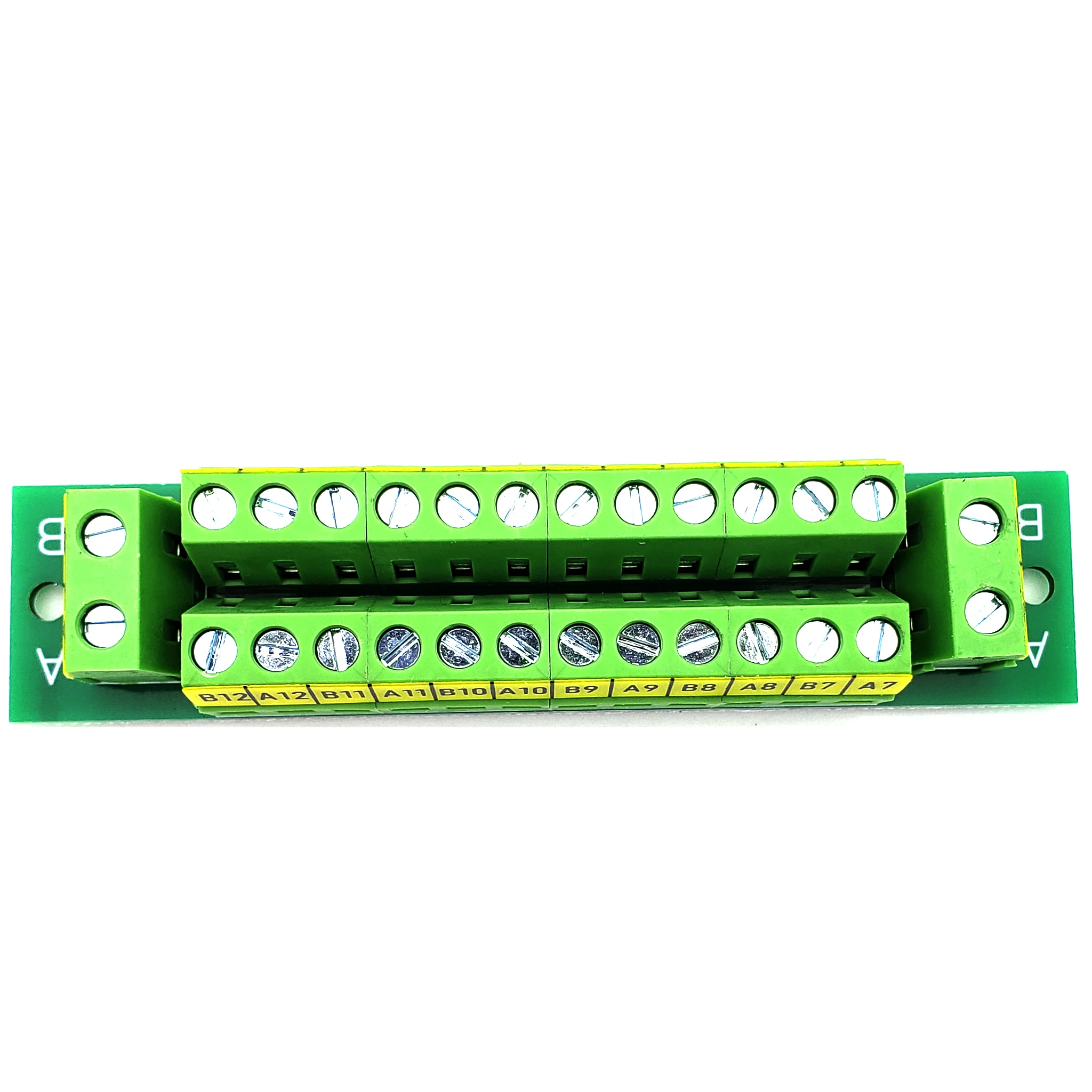

16A 2 x 12 Terminal Block for AC/DC Power Distribution
Reliable Power Distribution for Everyday Electrical Projects
The 16A 2 x 12 Terminal Block for AC/DC is a practical solution for safely and efficiently distributing power in home, hobbyist, and light industrial settings. With its easy screw-down terminals and robust build, this electrical terminal block is perfect for organizing connections to LED strips, sensors, automation devices, and other low-voltage equipment.
Key Features of the 16A Terminal Block
- High Current Capacity: Supports up to 16 Amps, making it a great choice for powering multiple devices that require substantial current.
- Dual Input Terminals: Features two input terminals for flexible power connections, allowing redundancy or multiple power sources for continuous operation.
- 12 Output Terminals: Connect up to twelve devices to a single source – ideal for larger projects that need organized power routing.
- AC/DC Compatibility: Designed for both AC and DC circuits, with a voltage rating up to 48V, offering versatility for various applications.
- Compact, Easy-to-Install Design: Fits easily into control panels or enclosures without taking up too much space; suitable for DIN rail mounting or panel installation.
Perfect for a Variety of Uses
This power distribution block is well-suited for home DIY projects, safe wiring of LED lighting systems, connecting sensors, and powering devices in automation systems. Its simple screw terminal design makes it user-friendly for everyday consumers and tinkerers alike.
Technical Specifications
| Current Rating | 16 Amps (total) |
| Voltage Rating | 48V AC or DC |
| Input Terminals | 2 (A and B) |
| Output Terminals | 12 (A1–B6 and A7–B12) |
| Terminal Pitch | 7.5mm (A/B), 5.0mm (A1–B12) |
| Wire Gauge Compatibility | 26 AWG to 12 AWG (0.13 mm² to 2.5 mm²) |
| Wire Strip Length | 7mm (0.276 inches) |
| Screw Specifications | M3 steel screws, Cr3+ Zn plated |
| Pin Header/Cage Material | Brass |
| Dimensions | Compact for DIN rail or panel mount |
| Certifications | Compliant with electrical safety standards |
| Product ID | VUPN6290 |
Why Choose This Dual Busbar Terminal Block?
- Reliable and safe electrical connections for your home or workshop
- Clear labeling and screw terminals for easy installation
- Durable design for long-lasting use in various environments
- Compatible with a wide range of wire sizes and electrical applications
Upgrade your next DIY, lighting, or automation project with the 16A 2 x 12 terminal block for AC/DC and enjoy easy, organized, and safe power distribution without the hassle.
