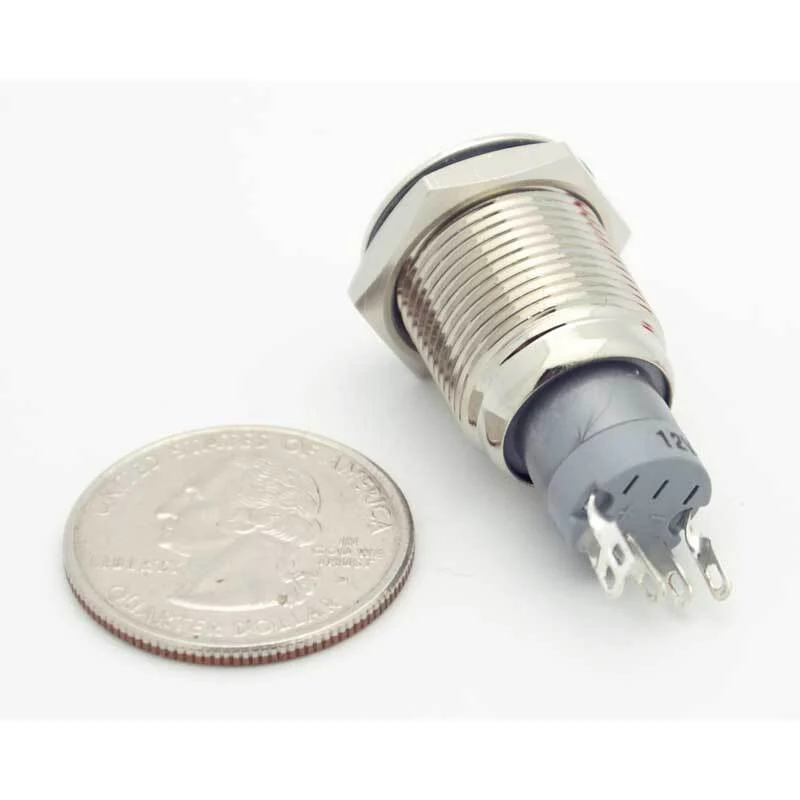

SPDT Sealed Illuminated Push Button Switch ON-OFF (Blue)

Easy-to-Use Blue Illuminated Push Button Switch

Upgrade your next project with this SPDT illuminated push button switch featuring a vivid blue LED ring. Designed for simple ON-OFF control, this sealed push button switch combines style and functionality for any DIY or panel mount application.

Waterproof and Durable – Built for the Elements

Don’t worry about dust or splashes—this IP67 waterproof push button switch is protected from the harshest environments. Its tamper-proof, flush-mounted design and rugged nickel-plated brass construction make it perfect for automotive, marine, and outdoor use.

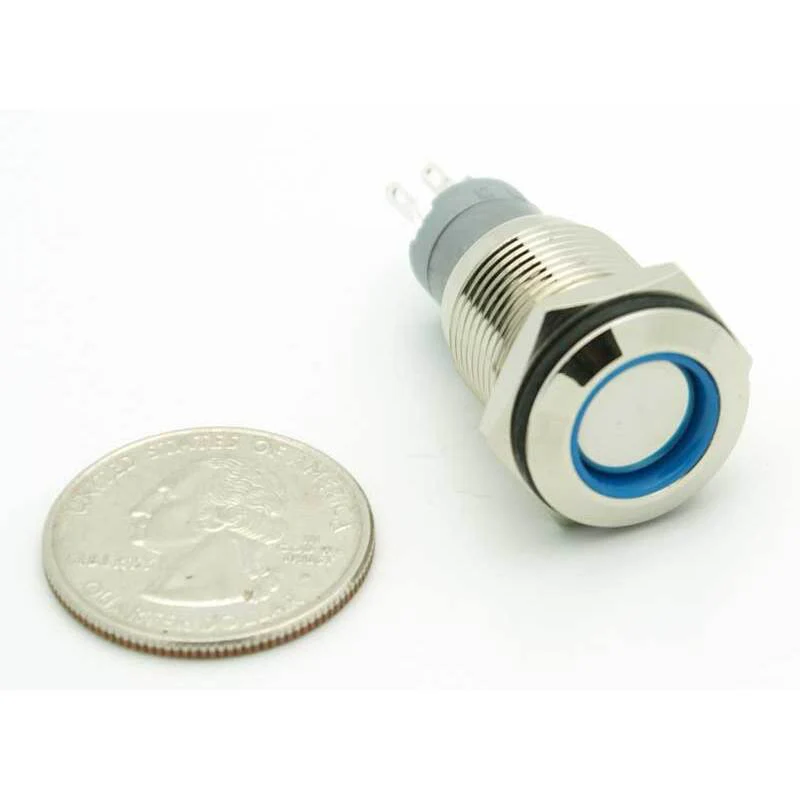

Bright Blue Illumination

The blue LED ring lights up at 12VDC, clearly indicating switch status. Great for dashboards, control panels, and custom electronics, this blue illuminated push button switch adds both visibility and a modern touch.

Simple ON-OFF Action

Featuring push-on push-off (latching) action, this switch is easy to operate. Just push to turn on, and push again to turn off. The Single Pole Double Throw (SPDT) design lets you control two circuits, expanding your project possibilities.

Product Specifications

• Switch Type: SPDT (Single Pole Double Throw), ON/ON Latching
• Rated: 3A @ 250VAC, 2A @ 24VDC
• LED Voltage: 12VDC (Blue)
• Mounting Hole: 5/8" (16mm)
• Max Panel Thickness: 0.50"
• Overall Length: 1.23"
• Electrical Life: 50,000 Cycles
• Contact Resistance: 50mΩ max (initial)
• Insulation Resistance: 1,000MΩ min @ 500VDC
• Dielectric Strength: 2,000V RMS 50~60Hz
• Operating Temperature: -20° to +70°C
• Protection: IP67 Waterproof
• Torque: 5~14Nm max (applied to nut)
• Operating Force: 5.5N max

Quality Materials for Long Life

• Busing & Button: Brass, Nickel Plated
• Contacts: Silver Alloy
• Nut: Nickel Plated Brass
• Base: PBT

What’s Included

• 1 x Blue Illuminated SPDT Push Button Switch
• Mounting Nut
• Sealing O-Ring
