50 Amp 12V DC Automotive Relay with Mounting Tab

Heavy-Duty 12V DC Relay for Automotive & DIY

This 50 amp 12V DC relay is a durable, high-current solution for vehicles and 12V projects that need more power than standard 30A or 40A relays. It features a plastic, non-conductive housing and a plastic mounting tab for easy, secure installation.

Why Choose This 50A Automotive Relay

• High-current capacity: ideal upgrade from 30A/40A relays
• SPDT (NO/NC) contacts: flexible control for multiple circuits
• Universal fit: drops into standard automotive relay sockets
• Easy mount: integrated tab for quick panel or bracket mounting

Socket Compatibility

Fits standard automotive relay sockets, including these Vetco options: CES-BRS-006 and CES-BRS-008.

Suggested Uses

• Auxiliary lighting and light bars
• Pumps, fans, and high-draw accessories
• Upgrading lower-amperage relay installations
• New 12V automotive or powersports projects

Technical Specifications

Coil Voltage	12V DC
Contact Configuration	SPDT (Normally Open & Normally Closed)
Normally Open Rating	50A at up to 14V DC
Normally Closed Rating	40A at up to 14V DC
Housing	Plastic, insulated, non-conductive
Mounting	Plastic mounting tab (panel/bracket friendly)
Socket Fit	Standard automotive relay sockets (e.g., CES-BRS-006, CES-BRS-008)

Notes

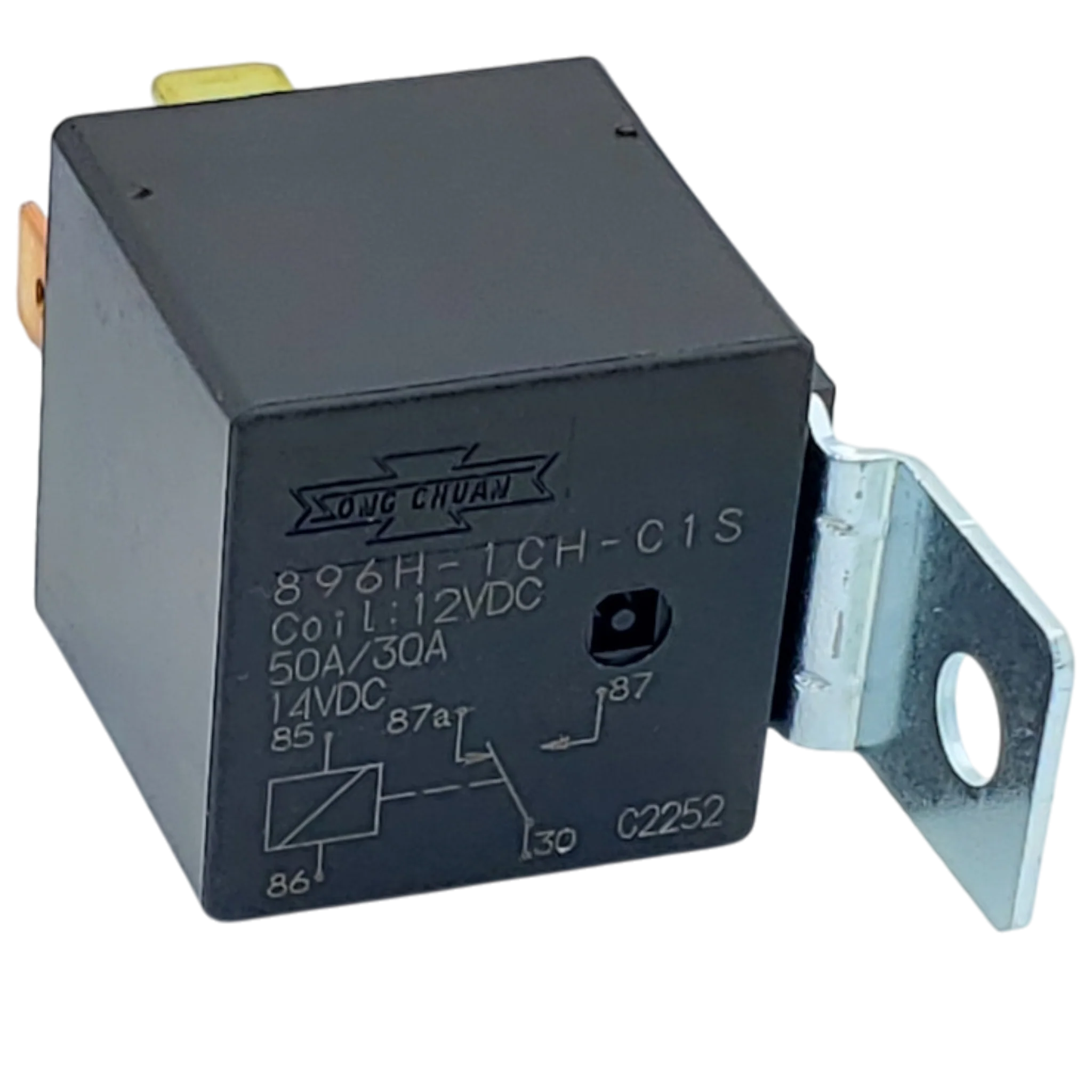

Use appropriately sized wiring and fusing for 50A loads. This relay is a great replacement for existing units, an upgrade from lower-amp relays, or a dependable choice for new builds. You may receive either a plastic tab or a metal tab unit. The metal tab units are epoxy sealed for moisture and dust resistance. We have many more metal tab units in stock than plastic tab. See images. Please let us know of your preference.
