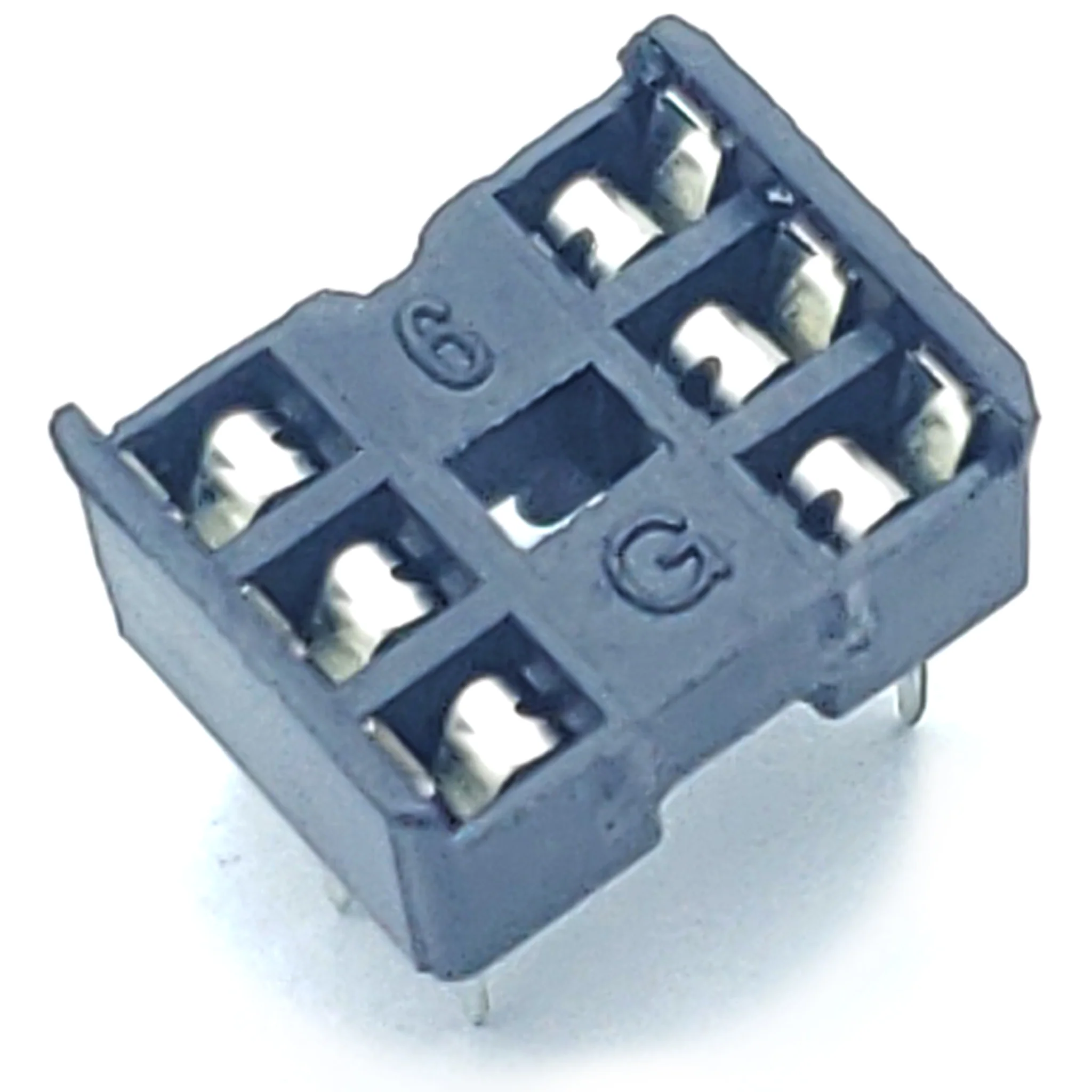

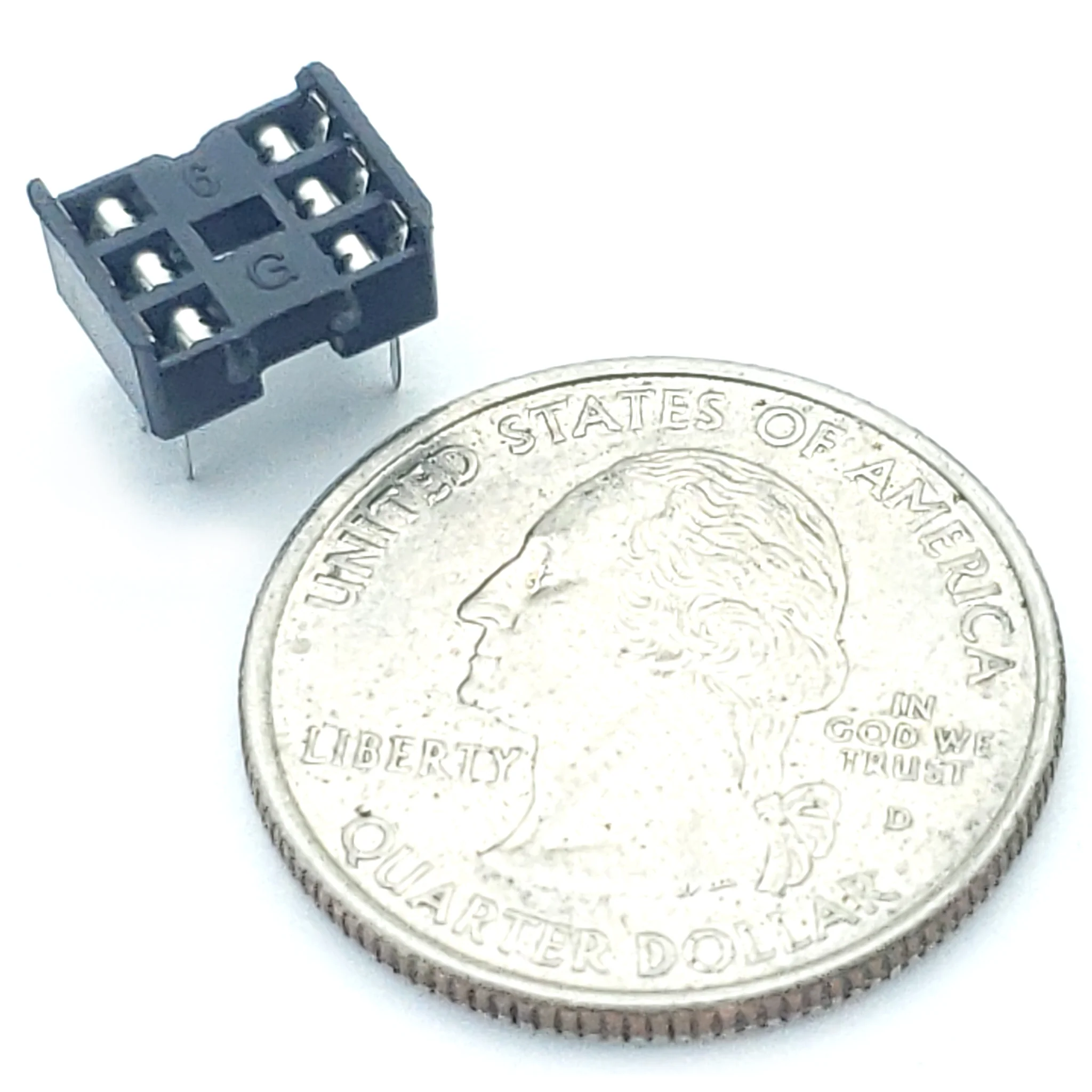

6-Pin IC Socket for Hobbyists and Everyday Electronics
Easy, Reliable Connections for Your Projects
The Vetco 6-Pin IC Socket is the perfect choice for anyone looking to mount 6-pin integrated circuits securely and with ease. Designed for everyday consumers, DIY enthusiasts, and electronics hobbyists, this 6-pin IC socket simplifies prototyping, assembly, and repairs by allowing you to insert and remove IC chips without soldering them directly to your board.
6-Pin IC Socket Features
- Standard Dimensions: Compatible with most 6-pin DIP ICs thanks to a 2.54mm (0.1") pin pitch and 7.62mm (0.3") row-to-row spacing.
- Dual-Wipe Contacts: Keeps your connection strong and secure, ensuring reliable electrical performance with every use.
- Through-Hole Mounting: Makes soldering easy and boosts durability on your PCB.
- Compact Profile: A 2.9mm pin length allows for discreet and low-profile installations.
Designed for All Your Electronic Needs
- Prototyping & Development: Quickly swap ICs in and out during testing without damaging your board.
- Educational Projects: Perfect for classrooms and beginners—reuse sockets and chips again and again.
- Maintenance & Repair: Replace faulty ICs easily without resoldering, extending your PCB’s lifespan.
- DIY Electronics: Build flexible and robust circuits with components that are easy to update and upgrade.
Technical Specifications
| Product Name | 6-Pin IC Socket |
|---|---|
| SKU | VUPN2566 |
| Number of Pins | 6 |
| Pin Pitch | 2.54mm (0.1") |
| Row-to-Row Spacing | 7.62mm (0.3") |
| Pin Length | 2.9mm |
| Contact Type | Dual-Wipe Contact |
| Mounting Type | Through-Hole |
| Body Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Plating | Tin over Nickel |
| Operating Temperature | -55°C to +125°C |
| Compliance | RoHS Compliant |
Why Choose Vetco’s 6-Pin IC Socket?
Enjoy peace of mind knowing your integrated circuits are protected and easy to replace. With robust dual-wipe contacts and a precision fit, this 6-pin IC socket meets the needs of both casual tinkerers and dedicated makers. Experience reliable connections for all your electronic projects today!
