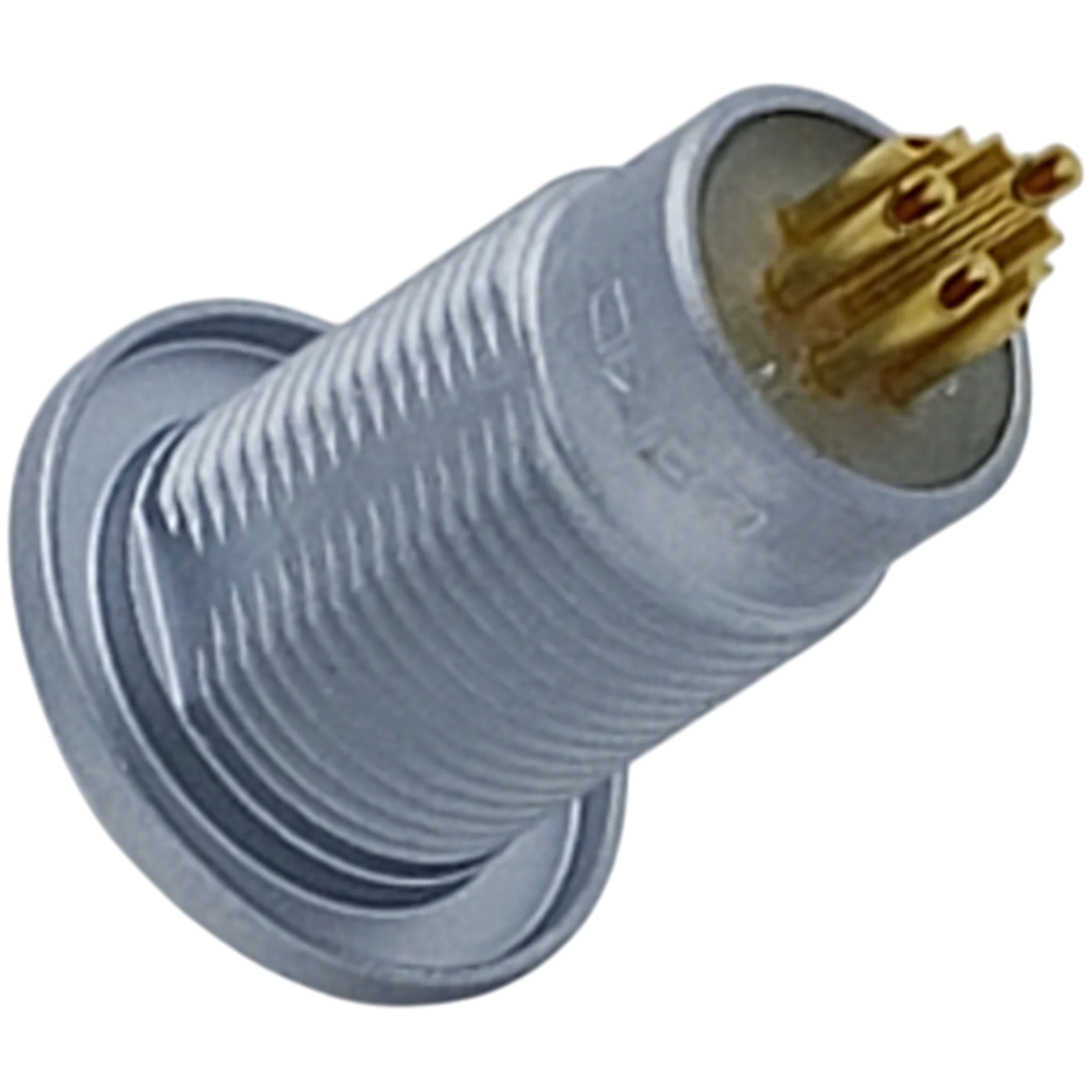

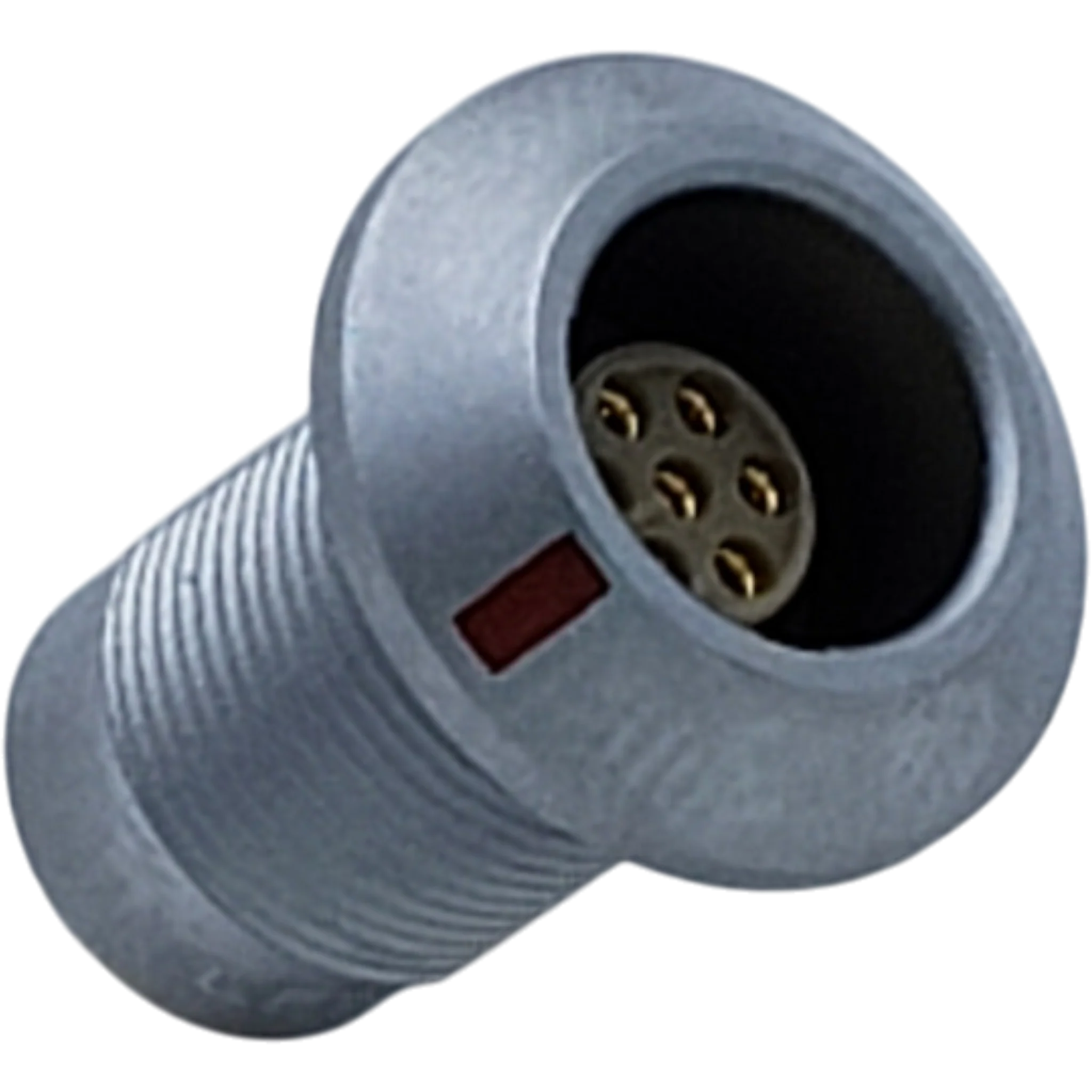

LEMO B Series 7-Contact Fixed Receptacle

A 7-contact panel-mount fixed receptacle with a push-pull self-latching system that remains watertight even when unmated. The LEMO B Series 7-Contact Fixed Receptacle (part number HGC.0B.307.CLLP) provides secure, sealed connections for demanding environments.

Secure Push-Pull Self-Latching Connections

Mechanical vibration and accidental cable pulls can ruin a critical connection. This LEMO connector utilizes a push-pull self-latching mechanism to ensure the plug stays mated to the receptacle until intentionally released by the user. The 2 keys (alpha=90) alignment system prevents cross-mating in dense panels where multiple connectors sit side-by-side. Built with a chrome-plated brass shell and a nickel-plated brass latch sleeve, the housing resists wear during repeated mating cycles.

Watertight Integrity for Vacuum and Panel Mounts

Sealing matters when routing cables through bulkheads or custom enclosures. The HGC.0B shell style is designed as a fixed receptacle with nut fixing, offering IP68-equivalent watertight protection when unmated. This makes it highly suitable for vacuum-tight environments and panel mounting requiring watertight integrity. Operating across a massive -55°C to +250°C temperature range, the internal insulator material meets UL 94 / V-0/1.5 flammability standards for demanding installations.

Key Features of the LEMO 7-Pin Receptacle

• Push-pull self-latching system prevents accidental disconnects
• 7 female solder cup contacts
• Watertight when unmated (IP68 equivalent)
• 2 keys (alpha=90) for precise physical alignment
• Chrome-plated brass housing with nickel-plated latch sleeve

Technical Data

• Rated Current: 3.0 A (Note: Some distributor specifications list 2.5 A)
• Test Voltage (Contact-Contact): 1.1 kV DC
• Test Voltage (Contact-Shell): 1.0 kV DC
• Operating Temperature: -55°C to +250°C
• Wire Size: 34 - 28 AWG
• Approvals: UL 94 / V-0/1.5 (Insulator material)

Indoor Keyed Applications and Panel Retrofits

Fits into custom enclosures requiring sealed multi-pin connections. Use it for indoor keyed applications, custom test equipment interfaces, or aerospace harness prep where a vacuum-tight panel feedthrough is required. Whether you are building custom diagnostic boxes or retrofitting industrial control panels, this 7-contact female solder cup interface accepts 34 to 28 AWG wire.

Combines a 3.0 A current rating, IP68-equivalent unmated sealing, and a rugged brass shell. Integrates directly into the LEMO B Series ecosystem.

What's Included: 1 LEMO B Series 7-Contact Fixed Receptacle. LEMO part number HGC.0B.307.CLLP.
