BNC Female Chassis Mount Connector

Reliable BNC Female Chassis Mount Connector for Easy Installations

Upgrade your electronics projects or repairs with this high-quality BNC female chassis mount connector. Designed for secure and consistent RF connections, this connector is perfect for anyone looking to add or replace a BNC panel mount connector in their equipment.

Product Features

• Chassis Mount Style: Fits 3/8" diameter mounting holes for universal compatibility in panels and enclosures.
• Durable Construction: Nickel plated body for corrosion resistance and long-lasting performance.
• High-Quality Contacts: Gold plated brass or copper conductors ensure great signal transfer and minimize loss.

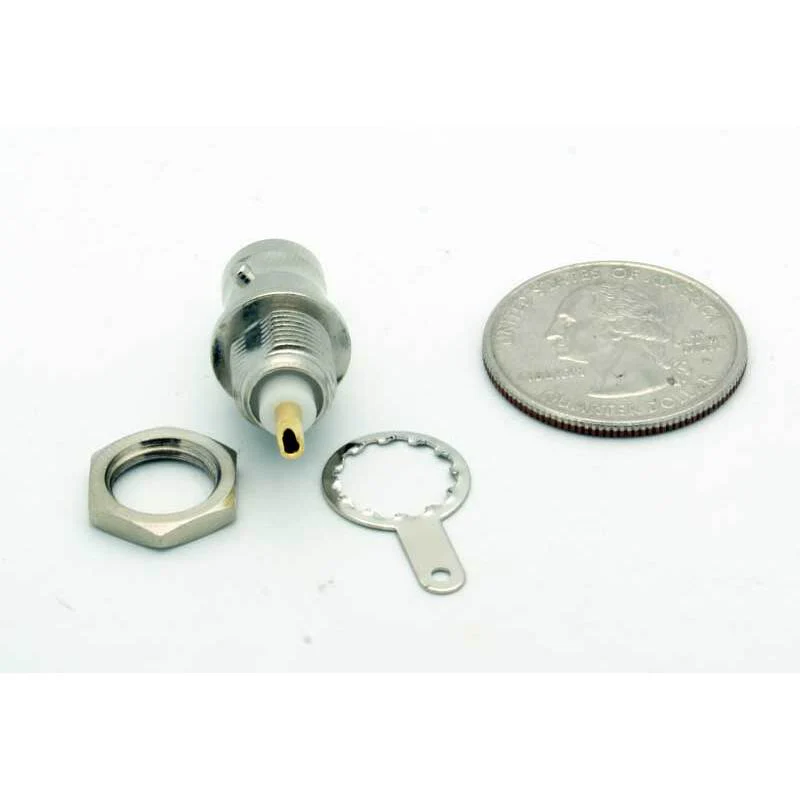

• Easy Installation: The built-in solder cup makes wiring simple and secure. All required mounting hardware is included.
• Non-Isolated: Direct connection for straightforward ground continuity in most applications.

Technical Specifications

• Connector Type: BNC Female Chassis Mount
• Mounting Hole Diameter: 3/8" (0.375")
• Overall Length: 1.08"
• Body Diameter: 0.375"
• Body Material: Nickel plated
• Contact Material: Gold plated brass or copper
• Isolation: Non-isolated
• Qty: 1 connector per package
• Product ID: LP-BNC-25-DGN

Applications

This BNC female chassis connector is ideal for use in custom audio/video panels, RF and test equipment, security camera systems, and more. Its BNC solder connector design makes it suitable for DIY projects and all skill levels.

How to Install

1. Drill a 3/8" diameter hole in your chassis or panel.
2. Place the connector through the hole from the front or rear side, as needed.
3. Solder your cable’s center conductor and shield to the provided cups on the rear of the connector.

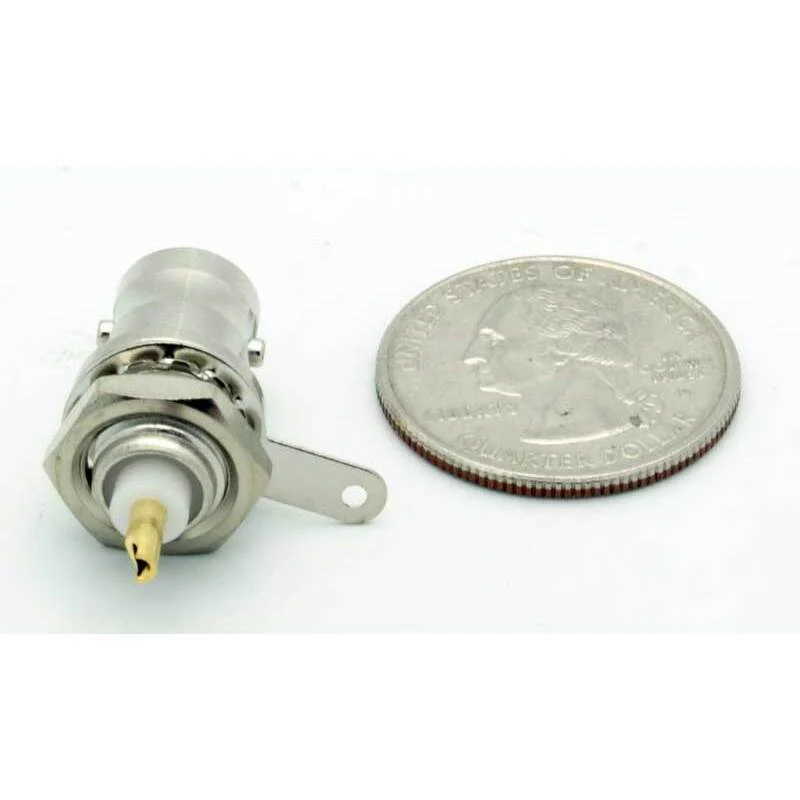

4. Secure with the included mounting hardware for a solid, professional finish.
