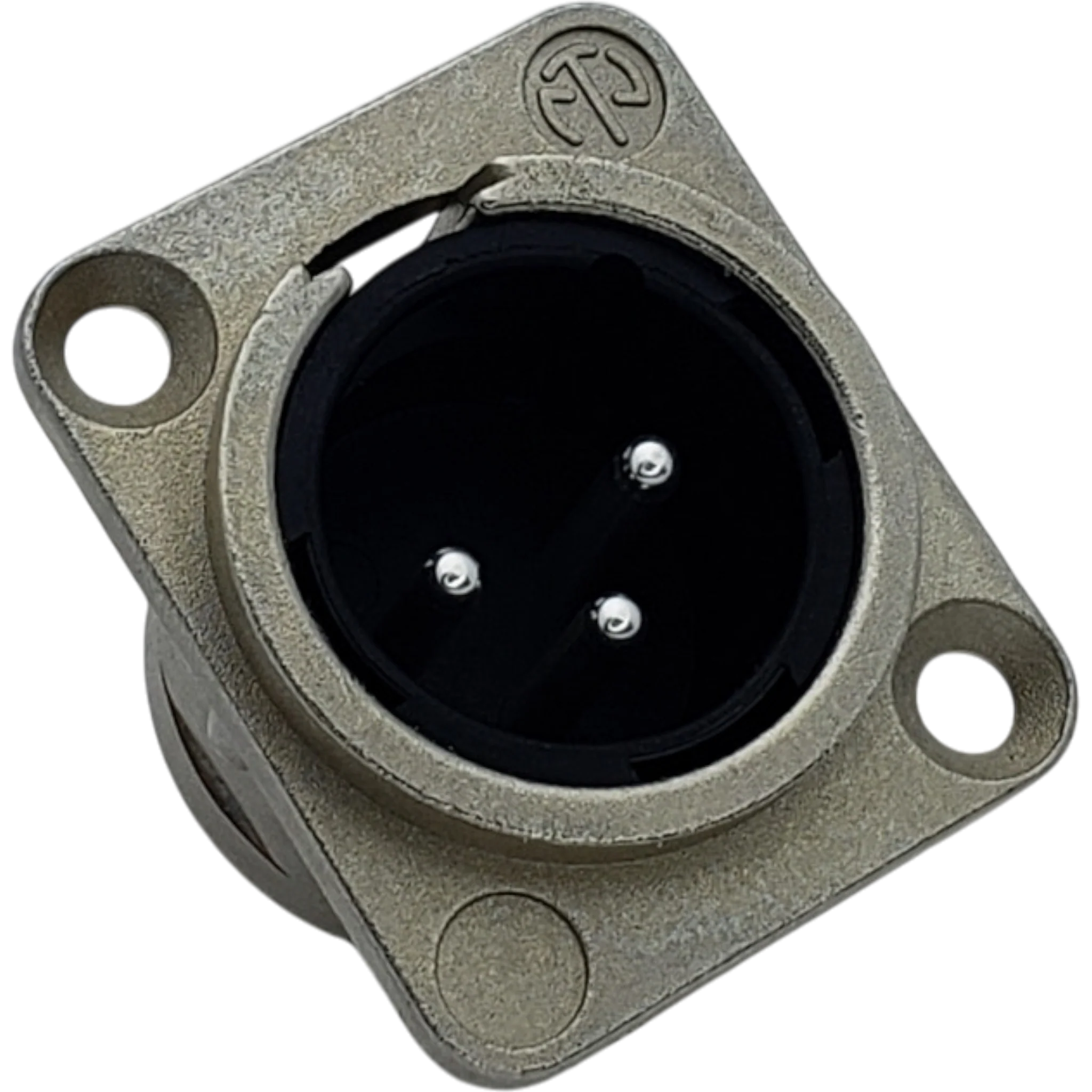

Neutrik XLR Male 3 Pin Panel Mount Connector with Solder Contacts Silver

Reliable Male XLR Panel Mount Connector for Audio and Electronic Projects

This 3-pole male XLR panel mount receptacle is a dependable choice for audio equipment, custom panels, broadcast gear, intercom systems, and other electronic builds that need a secure XLR connection. Designed with a standard D-size metal body, it fits common 24 mm panel cutouts and offers a professional, durable mounting solution for new designs or replacement work.

The NC3MD-L-1 features solder contacts for strong, permanent wire termination and a rugged nickel-plated metal housing built for long-term use. With silver-plated contacts and a robust latch lock design, this male XLR chassis connector is well suited for applications where reliable signal transfer and solid mechanical fit matter.

Durable D-Size XLR Panel Mount Receptacle

This XLR panel mount connector uses Neutrik’s universal D-size chassis format, making it a practical option for equipment panels, rack units, stage boxes, wall plates, and custom audio enclosures. The rugged metal shell helps protect the connector during regular use, while the front-mount design makes installation straightforward.

The robust D metal shell is paired with a zinc diecast body and nickel shell plating for strength and corrosion resistance. A steel latch lock helps keep mating connectors securely in place during operation.

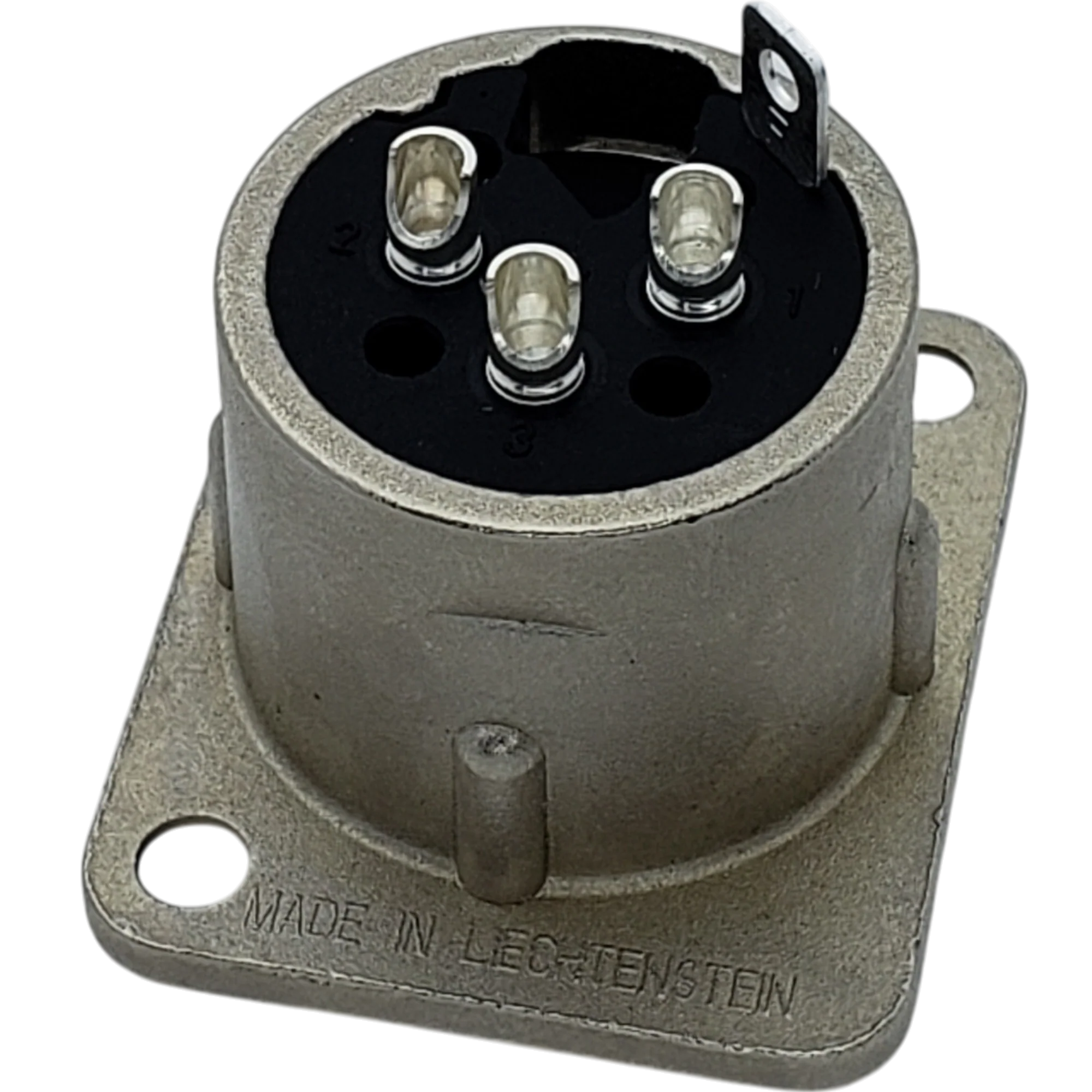

Solder Cup XLR Connector for Secure Wiring

If you prefer a dependable hard-wired connection, this male XLR receptacle uses solder contacts for clean and stable terminations. That makes it a strong fit for installers, repair technicians, audio hobbyists, and OEM equipment builders who want a classic soldered connection instead of push-in or PCB-mounted styles.

This 3-pin XLR receptacle is part of a panel mount series that uses solder cups on 3-pole through 7-pole versions, giving it flexibility across a wide range of professional and consumer equipment designs.

Electrical Performance for Demanding XLR Applications

Beyond its durable construction, this male XLR chassis connector also offers strong electrical performance. It has capacitance between contacts of ≤ 4 pF, contact resistance of ≤ 5 mΩ, dielectric strength of 1.5 kVdc, and insulation resistance greater than 10 GΩ initially. Each contact is rated for up to 16 A, with a rated voltage of less than 50 V.

These specifications make it a solid choice for low-voltage signal applications where connector quality, consistency, and dependable contact performance are important.

Built for Repeated Use in Audio and Electronics Equipment

The NC3MD-L-1 is designed for long service life, with a rated lifetime of more than 1000 mating cycles. It features insertion force and withdrawal force ratings of ≤ 20 N, helping provide a secure fit without excessive effort during connection and disconnection.

The connector uses a polyamide insert, brass contacts, a zinc diecast shell, and silver-over-nickel contact plating for a balance of durability, conductivity, and everyday reliability.

Technical Details of the NC3MD-L-1 XLR Receptacle

Connection type: XLR
Gender: Male
Mounting style: Front mount chassis receptacle
Chassis shape: D-size
Panel cutout: Standardized 24 mm D-size cutout
Wiring: Solder contacts
Locking device: Latch lock
Housing finish: Nickel
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Brass (CuZn35Pb2)
Shell material: Zinc diecast (ZnAl4Cu1)
Insert material: Polyamide (PA 6.6 30 % GR)

UL Recognized XLR Chassis Connector

This XLR panel mount series is a UL recognized component and complies with IEC 61076-2-103. It carries a UL 94 HB flammability rating, meets IEC 68-2-20 solderability requirements, and is rated IP40. The operating temperature range is -30 °C to +80 °C, allowing it to perform across a wide variety of indoor equipment environments.

A Practical 3-Pin Male XLR Receptacle for Repairs, Builds, and Upgrades

Whether you are replacing a worn connector, building a custom audio panel, or designing equipment that needs a dependable 3-pin male XLR panel mount connection, this receptacle offers the durability and fit expected from a quality metal-body chassis connector. Its combination of solder termination, nickel-plated shell, silver-plated contacts, and standard D-size form factor makes it a practical and versatile option for many audio and electronic applications.
