200V 40A Full-Wave Bridge Rectifier - Square 4-Tab Design

Reliable Power Conversion for Everyday Projects

This 200V 40A bridge rectifier is designed for dependable AC to DC power conversion in a wide range of electronics and DIY projects. Featuring a robust square 4-tab package, this high-current bridge rectifier is perfect for hobbyists, repair technicians, and anyone in need of a reliable single-phase rectifier diode.

Easy to Install and Built to Last

The square, 4-tab design makes installation simple and secure, fitting easily into most standard enclosures and heatsink setups. Its tough construction is ideal for power supplies, motor controls, battery chargers, inverters, and more.

Key Features and Technical Specs

• Type: Single-phase bridge rectifier
• Maximum Repetitive Reverse Voltage (V_RRM): 200V
• Maximum Continuous Forward Current (I_O): 40A

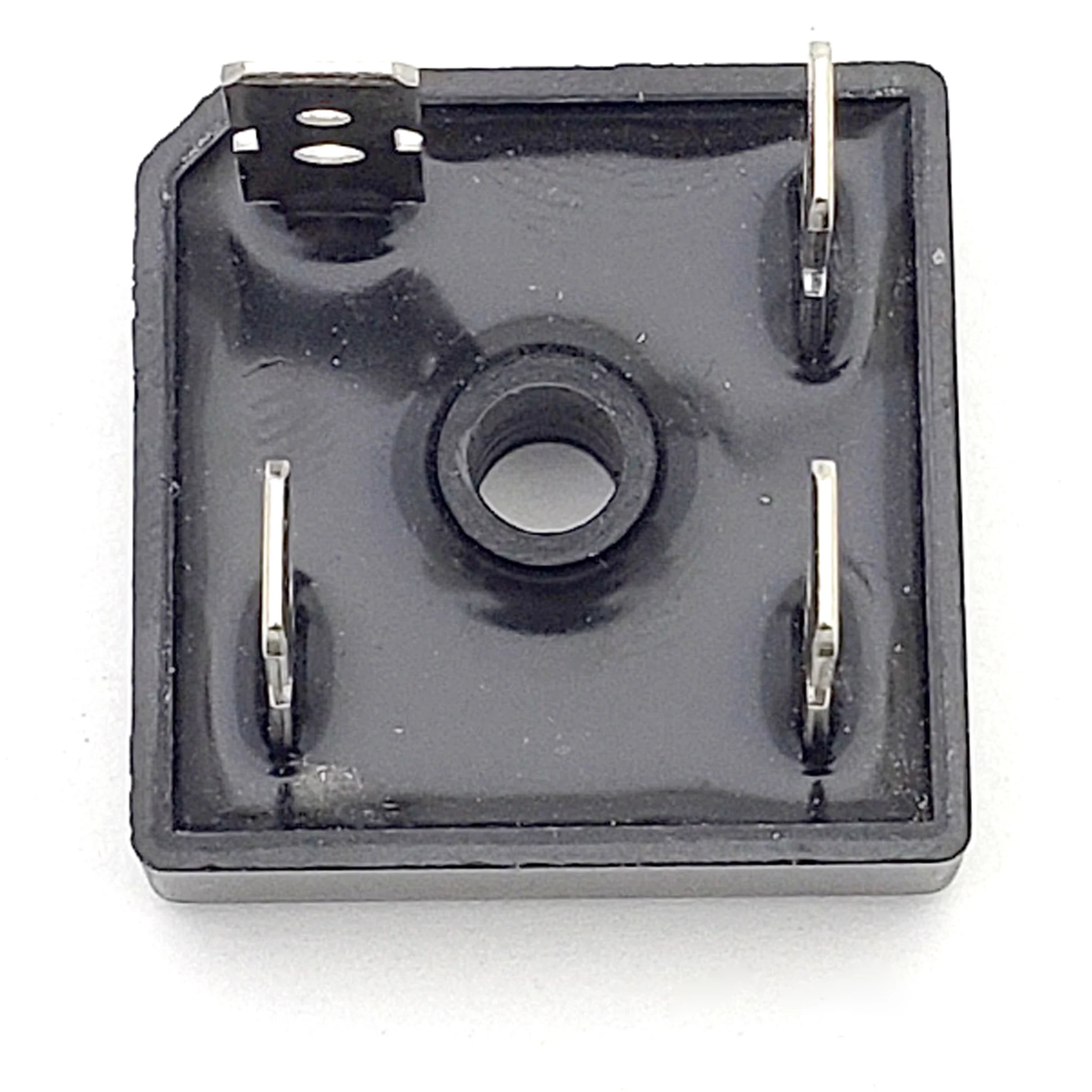

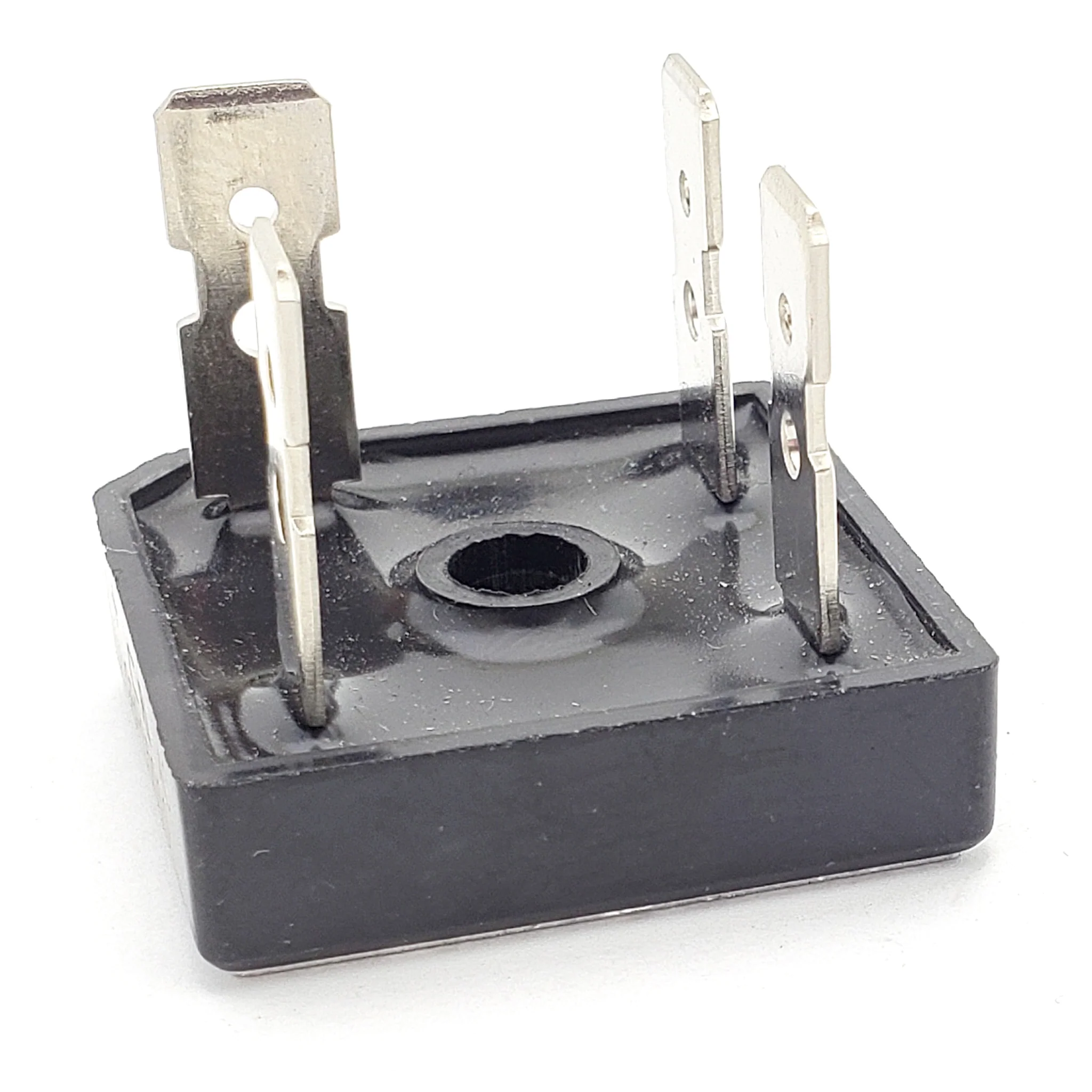

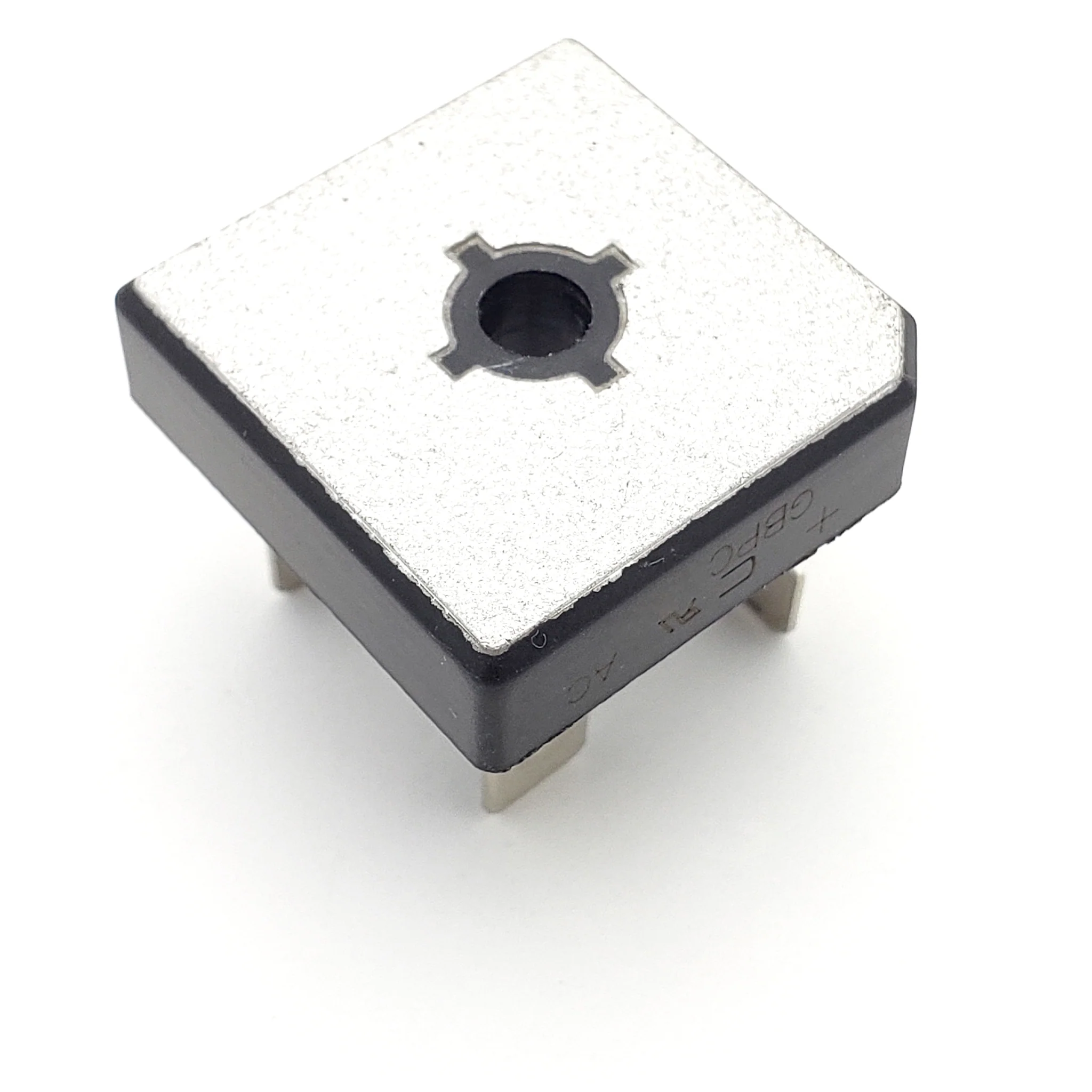

• Design: Square 4-tab package for easy installation
• Quantity per package: 1 rectifier
• Official Vetco Part Numbers: VET5340, WW5340, GBPC4010, KBPC3510
• Previous part number: NTE5340

Applications

• Perfect for upgrading or replacing rectifiers in power supplies
• Great for DIY electronics, repair, and maintenance projects
• Works with battery chargers, inverters, and DC motor controls
• Handles demanding jobs where high current and reliability are a must

Why Choose This 200V 40A Bridge Rectifier?

This full-wave bridge rectifier balances high performance and simplicity, making AC to DC conversion easy for everyone. It delivers smooth, reliable DC output—helping you power your circuits with confidence. No matter if you call it a 200V 40A bridge rectifier, a high-current bridge rectifier, or simply the NTE5340 equivalent, Vetco’s offering is a smart, dependable choice for your next project.

Need help figuring out if this rectifier fits your circuit? Contact our team for guidance!

This part is the equivalent replacement for the following:

NTE5340, KBPC4010, 250JB20, 30HB100, 30HB200, 30HB50, 35MB05A, 35MB10A, 35MB20A, 36MB01B, 36MB02B, 36MB05A, 36MB10A, 36MB20A, 3A-MDA-3500, 3A-MDA-3501, 481-0009, 481-0009(GREMLIN), 4820-0000-001, 5A-9050, 679-1(BRIDGE), 679-2, 680-1(BRIDGE), 680-2, B20/15-35, B40/35-35, B80/70-35, BP35-005, BP35-01, BP35-02, BR3500, BR3501, BR3502, BR3505, BR351, BR352, BR90A, BR91A, BYW60, BYW61, BYW62, CBR35-010, CBR35-010P, CBR35010P, CBR35-020, CBR35-020P, CM3500, CM3502, DB3500, DB3500P, DB3501 (Minor mechanical difference exists, but device will fit most applications.), DB3501P, DB3502, DB3502P, E-00602-002, E-00602-007, ECG5340 (Minor mechanical difference exists, but device will fit most applications.), FB3500, FB3500L, FB3501, FB3501L, FB3502, FB3502L, FP14005, FP14010, FP14020, FPI4005, FPI4010, FPI4020, GBPB3502 (Minor mechanical difference exists, but device will fit most applications.), GBPC35-005 (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), GBPC35005 (Minor mechanical difference exists, but device will fit most applications.), GBPC35005M, GBPC35005W (Minor mechanical difference exists, but device will fit most applications.), GBPC35-01 (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), GBPC3501 (Minor mechanical difference exists, but device will fit most applications.), GBPC3501M, GBPC3501W (Minor mechanical difference exists, but device will fit most applications.), GBPC35-02 (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), GBPC3502, GBPC3502M, GBPC3502W (Minor mechanical difference exists, but device will fit most applications.), KBF35-005, KBF35-01, KBF35-02, KBH005, KBH02, KBPB3502, KBPC3500, KBPC35-005, KBPC35005, KBPC35-01, KBPC3501, KBPC35-02, KBPC3502, MB1212A35V10, MB12A10V05, MB12A10V10, MB12A10V20, MB12A35V05, MB12A35V10, MB12A35V20, MB3505 (Minor mechanical difference exists, but device will fit most applications.), MB351 (Minor mechanical difference exists, but device will fit most applications.), MB352 (Minor mechanical difference exists, but device will fit most applications.), MBP3505, MBP351, MBP352, MDA-3500, MDA3500 (Minor electrical difference exists, but device will function in most applications.), MDA-3501, MDA3501 (Minor electrical difference exists, but device will function in most applications.), MDA3502 (Minor electrical difference exists, but device will function in most applications.), MDA3550 (Minor electrical difference exists, but device will function in most applications.), MDA3551, MP14005, MP14010, MP14020, MPI4005, MPI4010, MPI4020, MPI5005 (Minor electrical difference exists, but device will function in most applications.), MPI5010 (Minor electrical difference exists, but device will function in most applications.), MPI5020 (Minor electrical difference exists, but device will function in most applications.), NBS35-200, NBS35-50, NL25-200, NTE5340, PA05, PA10, PA20, PKBPC35/02, SA12A05, SA12A10, SA12A20, SB3505(BRIDGE), SB3505G(BRIDGE), SB3505GM(BRIDGE) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), SB3505M(BRIDGE) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), SB351(BRIDGE), SB351G(BRIDGE), SB351GM(BRIDGE) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), SB351M(BRIDGE) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), SB352(BRIDGE), SB352G(BRIDGE), SB352GM(BRIDGE) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), SB352M(BRIDGE) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), SBR10A05, SBR10A1, SBR10A2, SBR6A05, SBR6A1, SBR6A2, SDA990-1, SDA990-2, SDA990-3, SK3650, SK9099, SK9100, SK9101, SK9101/5340
