SMB Male 3 Piece Crimp Connector for RG-316 Coax Cable
Easy-to-Use SMB Male Connector for RG-316 Cable
This SMB male crimp connector is designed for quick and secure cable connections at home or on the go. It's perfect for RG-316 coaxial cable and uses a convenient 3-piece assembly that ensures a reliable fit every time. If you’re looking for an affordable SMB connector for DIY projects or quick repairs, this gold-plated option gives you professional results without the complexity.
Features and Benefits of the 3-Piece Crimp Connector

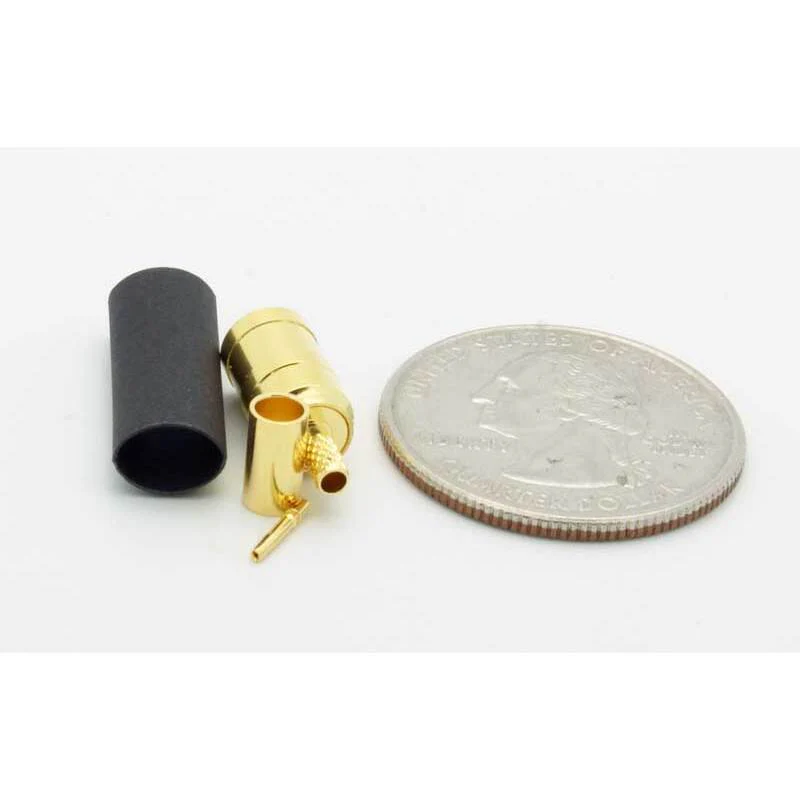

- 3 Piece Design: Includes center pin, main body, and ferrule for easy installation.
- Gold-Plated Contacts: Brass or copper conductors provide low signal loss and excellent corrosion resistance for clear signal transmission.
- DIY Friendly: No special tools required beyond a basic soldering iron and standard coax crimp tool.
- Compact & Inline: Line mount style fits neatly into your coax setups.
- Includes Heatshrink: Extra protection and a professional finish for your connections.
How to Install the SMB Male 3-Piece Crimp Connector
- Strip the RG-316 coaxial cable to expose the center conductor and shield.
- Solder the center pin onto the core (center conductor) of the coax.
- Slide the connector body over the pin and cable.
- Position the ferrule over the cable shield and crimp securely using a coaxial crimping tool.
- Apply the included heatshrink over the connection for added strain relief and insulation.
This easy-to-install SMB male connector is great for custom cable assemblies, repairs, and RF projects at home.
Technical Specifications
- Connector Type: SMB male (crimp style, inline/line mount)
- Fits Cable Type: RG-316 coaxial cable
- Assembly: 3 piece (center pin, main body, ferrule)
- Contact Plating: Gold plated
- Includes: Heatshrink for protection
- Quantity: 1 connector per package
- Product ID: pan-smb-2606
Why Choose This SMB Male Crimp Connector?
This high-quality, gold-plated SMB male crimp connector offers both performance and ease of use for everyday installations. It's ideal for hobbyists, home RF setups, and anyone needing a reliable, easy-to-install coax connector solution.
