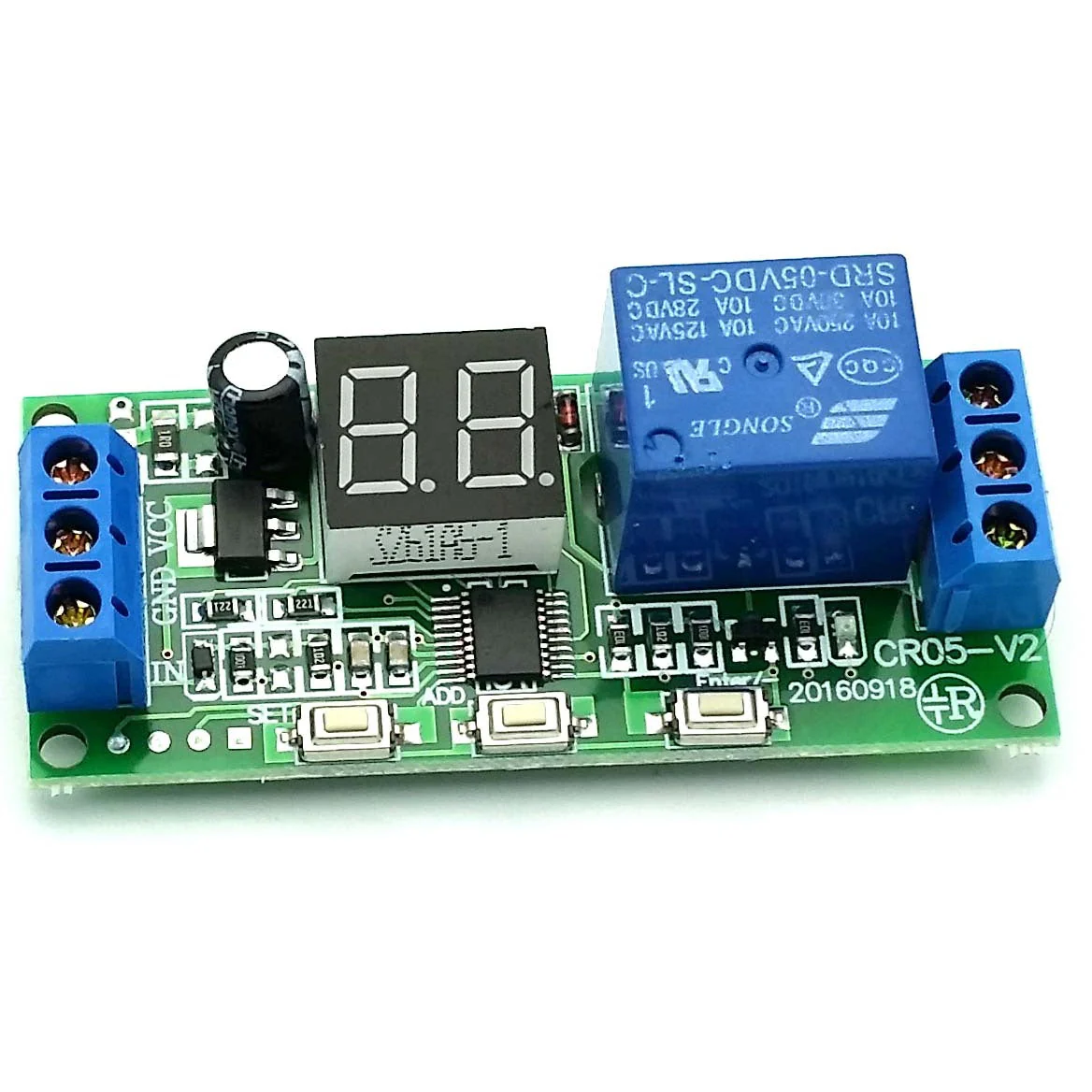

Programmable Relay Timer – 10A Contact, SPDT, 5V/12V/24V DC Coil

Easily Automate with a Programmable Relay Timer

Take control of your electronics and automation projects with this versatile programmable relay timer. Ideal for home automation, DIY projects, hobby electronics, alarms, and more, this relay makes it simple to set precise timing events without complex wiring or programming knowledge.

Key Features: Timer Relay with Multiple Operating Modes

• Available in 5V DC, 12V DC, and 24V DC coil versions to match your power supply needs
• For DC Operation ONLY No AC version of this relay is available
• SPDT output – Single Pole Double Throw for maximum control flexibility
• 10A contact rating – Suitable for switching lights, fans, motors, and other devices
• Multi-function programmable timing – Set for timed on-then-off, off-then-on, or repeat (cycle) operation
• Wide timing range: Adjust delays from as little as 0.1 seconds up to 99 hours
• External trigger input – Activate the timer from an external switch or signal
• LED display for easy programming and status checks

Setup Instructions

Intuitive buttons and a display make delay and mode selection quick and simple. Downloadable instructions are available for setup: Manufacturer's Operation Manual | Manufacturer's Modes of Operation Guide. | ChatGPT Written Instruction Sheet

Please note: We carry these at the request of our customers, but are not experts on their use. We will not be able to give any assistance installing or configuring these modules. The instruction sheets linked above are your best option for learning to use and configure these modules.

Technical Specifications

• Voltage Options: 5V DC (Part Number: VUPN2758), 12V DC (VUPN2759), 24V DC (VUPN2760)
• Contact Rating: 10A
• Contact Type: SPDT (Single Pole Double Throw)
• Timing Range: 0.1 seconds to 99 hours (adjustable)
• Repeat Cycle Option: Yes (endless loop capable)
• Trigger: Can be externally triggered
• Display: Yes (for programming and status)
• Dimensions: 0.69" (17.54mm) L x 2.56" (65.05mm) W x 1.11" (28.1mm) H
• Mounting Hole Centers: 0.91" (23.16mm) apart (side to side), 2.37" (28.67mm) (end to end)
• Mounting Hole Diameter: 0.117" (3mm)
• Measurements are approximate and may be subject to change.

Perfect for Everyday Automation Needs

Whether you’re setting up a timed lighting system, automating equipment, or building a custom project, this adjustable timer relay offers reliable, flexible performance. Its combination of a user-friendly interface, versatile relay functionality, and strong 10A contacts make it the go-to choice for consumers and hobbyists.
