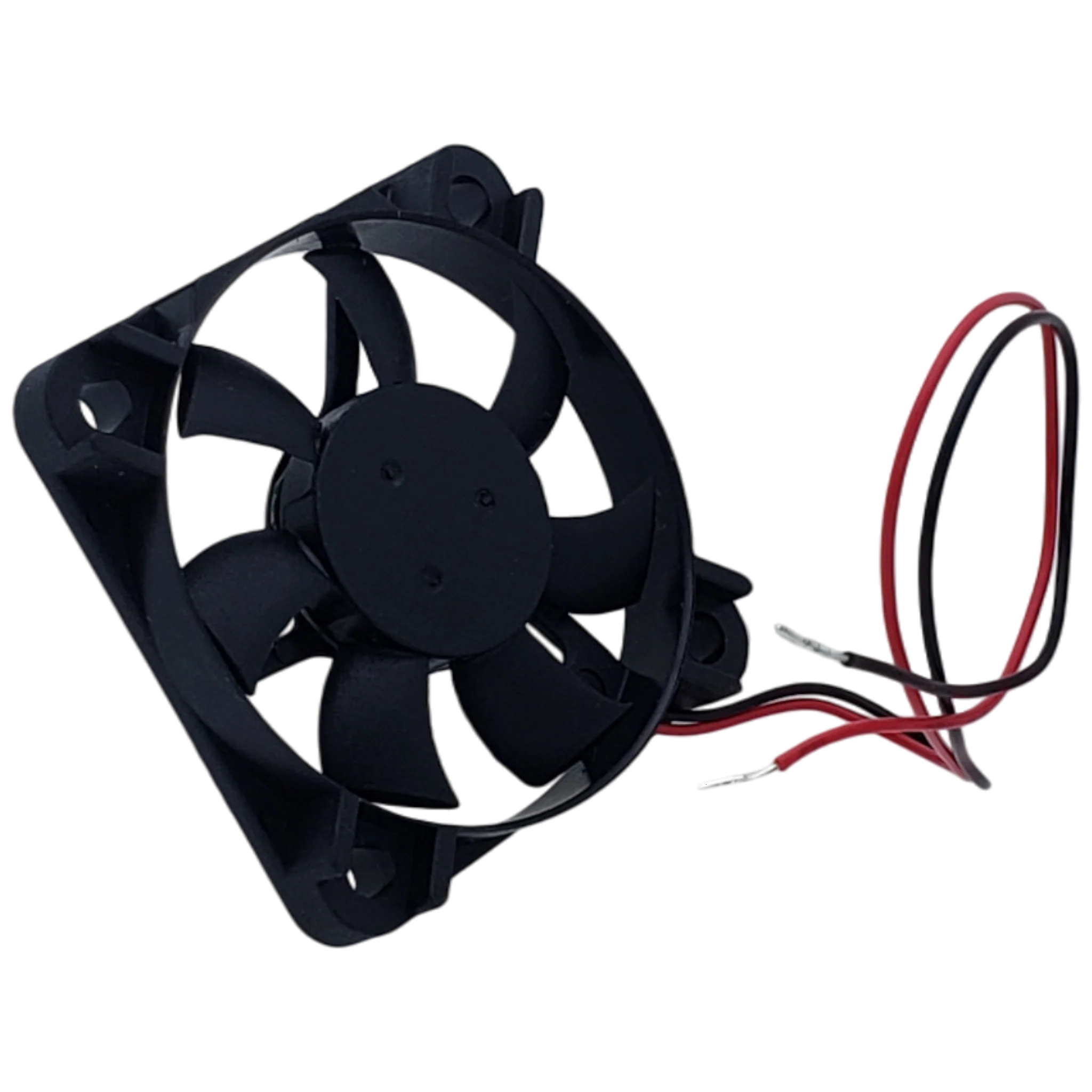

Sunon MagLev 5V DC Axial Fans
The Sunon MagLev 5V DC Axial Fan utilizes a Vapo-bearing motor for high-reliability cooling in a tight 40x40x6.9mm footprint. Delivering 5.9 CFM of airflow while drawing just 87mA, this ultra-slim fan keeps thermals under control in space-constrained electronics without draining your power budget. Great for microcontroller projects, Raspberry Pi and other projects that require cooling at 5V DC.
Low-Friction Cooling with Sunon MagLev Technology
Traditional sleeve bearings wear out, and ball bearings generate excess mechanical noise. Sunon's Vapo-bearing magnetic levitation system suspends the rotor, eliminating physical friction between the shaft and bearing during operation. This prevents the mechanical wobble that develops in older fans, translating to a longer lifespan and a consistent 29.9 dBA noise floor even after thousands of hours of continuous use.
Key Features of the MF40060V1-000U-A99
- Magnetic levitation Vapo-bearing for reduced friction and acoustic stability.
- Ultra-slim 6.9mm profile designed for tight enclosures and low-clearance chassis.
- Wide operating voltage range from 2.5V to 5.5V DC.
- Low 440 mW power consumption for battery-operated builds.
- Standard 2-wire lead termination for direct soldering or custom crimping.
Technical Data
- Rated Voltage: 5V DC
- Operating Voltage Range: 2.5V DC to 5.5V DC
- Current Rating: 87 mA
- Power Consumption: 440 mW
- Rated Speed: 7000 RPM
- Air Flow: 5.9 CFM (0.165 mÂł/min)
- Static Pressure: 0.10 in H2O (24.9 Pa)
- Noise Level: 29.9 dBA
- Dimensions: 40 x 40 x 6.9 mm
- Bearing Type: Vapo-Bearing (MagLev)
- Termination: 2 Wire Leads
- Cross-Reference: Often serves as a functional equivalent for MF40060V1-1000U-A99
Applications in Embedded Systems & Portable Devices
At under 7mm thick, this 40mm fan slides into enclosures where standard 10mm or 20mm thick fans physically cannot fit. Use it to pull heat off single-board computers, cool custom embedded systems, or maintain airflow across voltage regulators in portable devices. The wide 2.5V to 5.5V operating range means it spins up reliably even as battery voltages sag under load. If you are maintaining older equipment, this unit frequently serves as a functional equivalent for the MF40060V1-1000U-A99, keeping legacy hardware running without requiring enclosure modifications.
What's Included: 1 Sunon MagLev 5V DC Axial Fan. Sunon part number MF40060V1-000U-A99. (Lot code 112893 11A).
