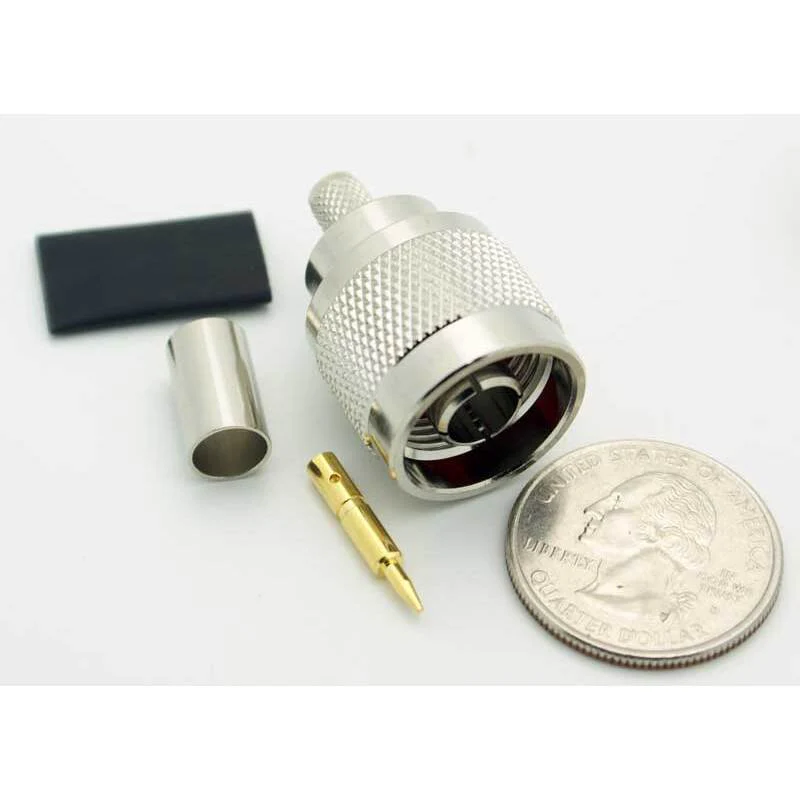

N Male 3 Piece Crimp Connector for LMR-240 Coax Cable

Reliable N Male Connector for LMR-240 Cable

This N Male 3 Piece Crimp Connector is designed for easy, secure installation on LMR-240 coaxial cables. Perfect for RF projects, antennas, and broadcast setups, this connector provides a professional-grade connection with minimal signal loss.

Features and Benefits

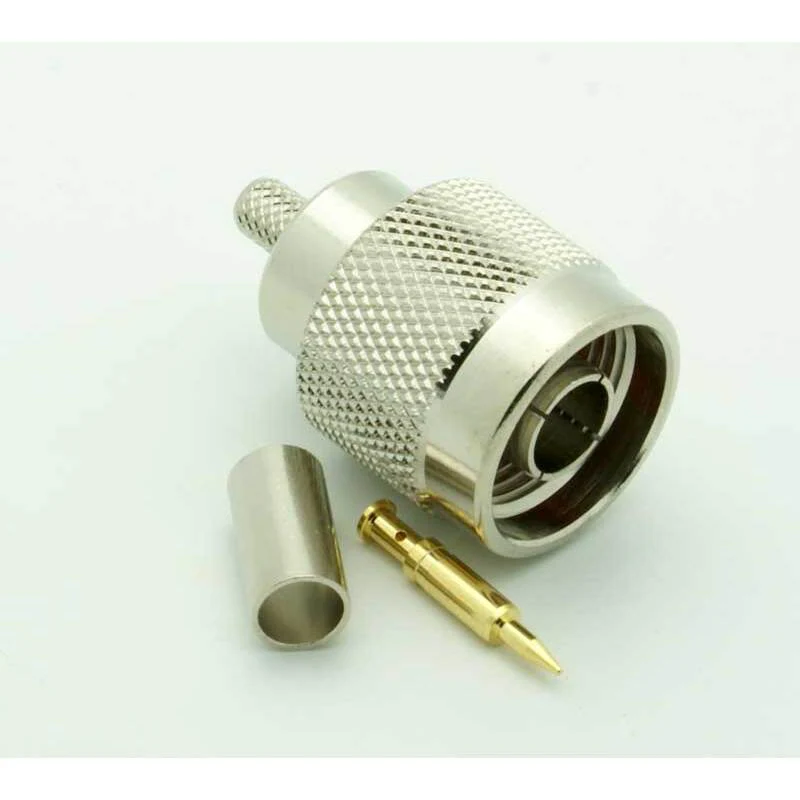

• Three-Piece Design: The center pin is soldered onto the center conductor, and the connector is then crimped onto the coax using the included ferrule for a stable and low-loss connection.
• Durable Construction: Quality nickel-plated body for corrosion resistance and long-term durability.
• Easy Grip: Knurled grips make installation and removal simple and secure.
• High-Quality Conductors: Gold-plated brass or copper center pin for excellent conductivity and reliable signal integrity.

Technical Specifications

• Connector Type: N Male (crimp style)
• Compatible Cable: LMR-240 coaxial cable
• Body Material: Nickel-plated
• Pin Material: Gold-plated brass or copper
• Design: 3-piece with solder center pin and ferrule for crimping
• Dimensions: 1.40" (Length) x 0.79" (Diameter)
• Quantity: 1 connector per package

Simple Installation Instructions

1. Strip your LMR-240 cable according to standard coaxial prep guidelines.
2. Solder the gold-plated center pin onto the center conductor of the cable.
3. Slide the ferrule over the cable, then insert the cable and center pin into the connector body.
4. Crimp the ferrule securely onto the connector using the appropriate crimp tool.

Applications

• RF coaxial cable assemblies
• Antennas and wireless networks
• Base stations and communication equipment
• Broadcast and instrument setups
