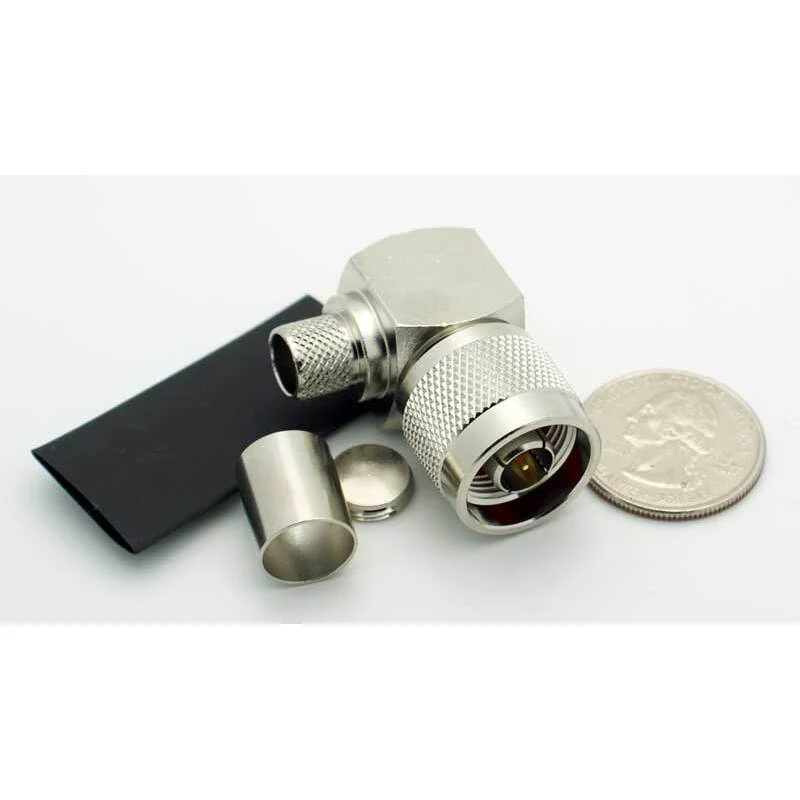

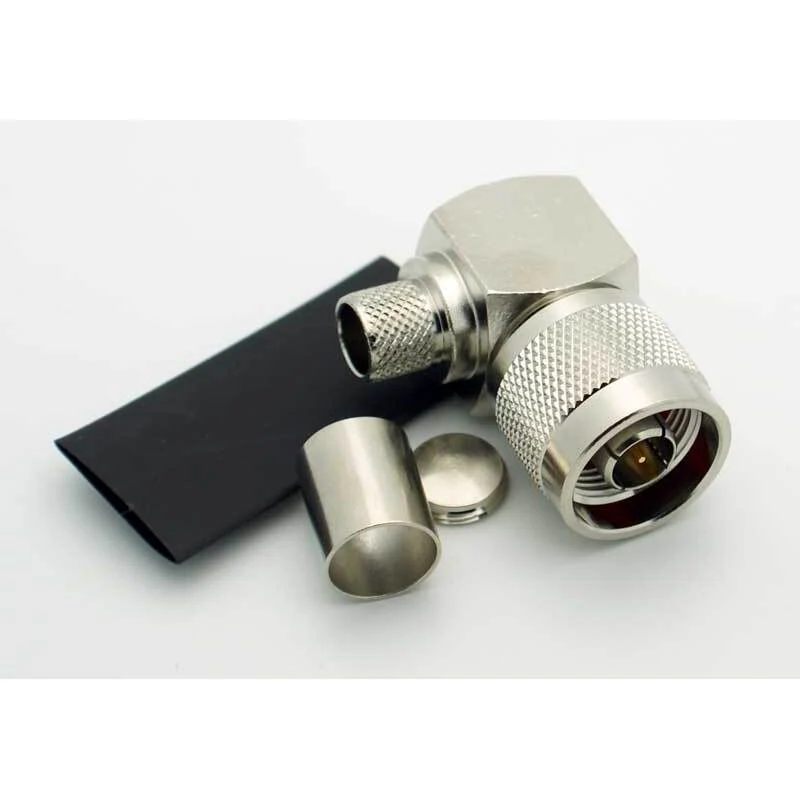

N Male Right Angle 3-Piece Crimp Connector for LMR-400 Coax Cable
Easy Connection for LMR-400 Coax
This N Male Right Angle Crimp Connector is designed for quick and secure connections on LMR-400 coaxial cables. Featuring a convenient right angle design, it's perfect for tight spaces and clean cable routing in home setups, RVs, WiFi antennas, and custom projects.

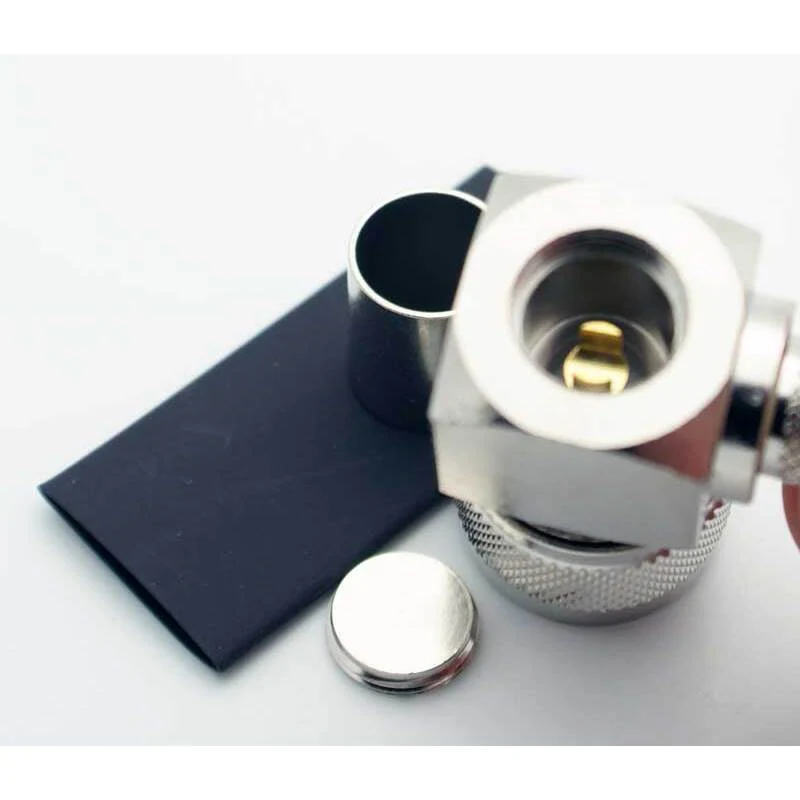

Simple 3-Piece Crimp Design
The 3-piece construction makes installation straightforward. The center pin is soldered to the center conductor of your LMR-400 coax cable, then the connector is crimped using the included ferrule for a solid, reliable hold. The final step is snapping on the small cap to cover the soldered joint. This ensures both durability and signal clarity. The fixed pin design means the pin cannot be removed from the connector, making assembly easy for anyone.
Durable Build for Consistent Performance
- Nickel plated with knurled grips for easy handling and strong corrosion resistance
- Gold plated brass or copper conductors for excellent signal transfer and low loss
- Designed specifically for LMR-400 coaxial cable
Technical Specifications
- Type: N Male connector, right angle, crimp style
- Compatible Cable: LMR-400
- Connector Design: 3-piece (center pin, main body, ferrule)
- Connection: Solder center pin, crimp ferrule
- Conductor Material: Gold plated brass or copper
- Plating: Nickel (body)
- Dimensions: 1.42" Long x 1.36" Tall x 0.79" Diameter
- Quantity: 1 connector per package
- Product ID: TES_436949
How to Use
- Strip your LMR-400 coax cable to expose the center conductor and shield.
- Solder the center pin onto the coax center conductor.
- Slide the connector body onto the cable, ensuring proper fit.
- Crimp the ferrule securely with an appropriate crimp tool.
- Place the cap over the soldered pin connection for a finished look.
Perfect for Home and Hobby Projects
Whether you’re upgrading your home WiFi, assembling amateur radio gear, or installing video cable runs, this N Male Right Angle Crimp Connector for LMR-400 delivers reliable connections every time.
