SMA Male 3-Piece Crimp Connector for LMR-400 Coax Cable

Easy-to-Install SMA Male Crimp Connector for LMR-400

This SMA male 3-piece crimp connector is designed for quick and reliable termination of LMR-400 coaxial cable. Perfect for creating your own custom coax cables at home, this inline connector ensures a secure RF connection for antennas, routers, and other RF devices.

Quality Construction & Performance

Featuring robust nickel-plated construction, this SMA male connector offers durability and corrosion resistance. The gold-plated brass or copper conductors help provide excellent signal integrity and reliable long-term performance.

3-Piece Design for Secure Connection

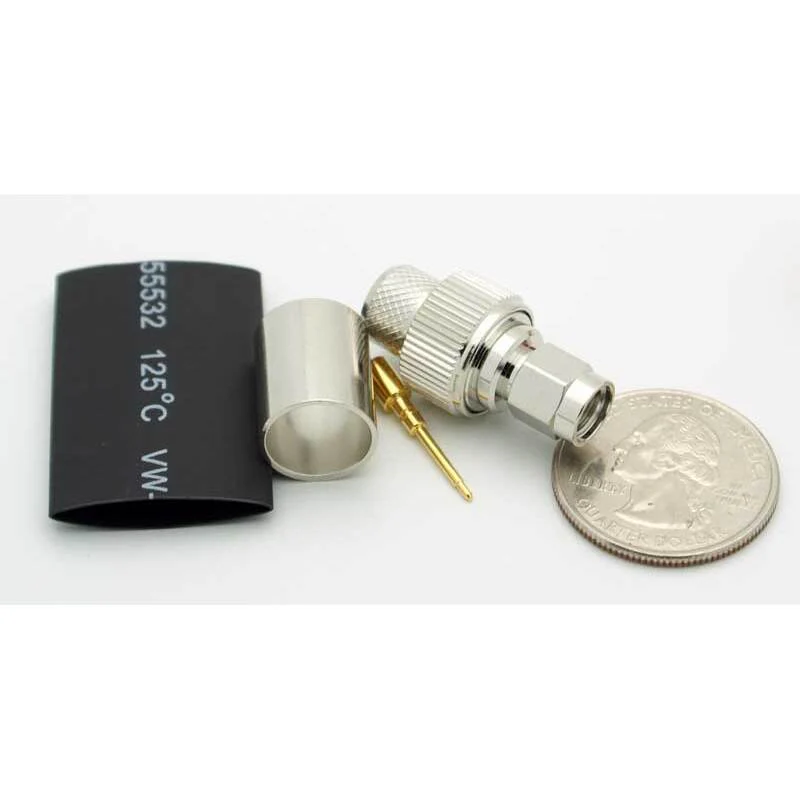

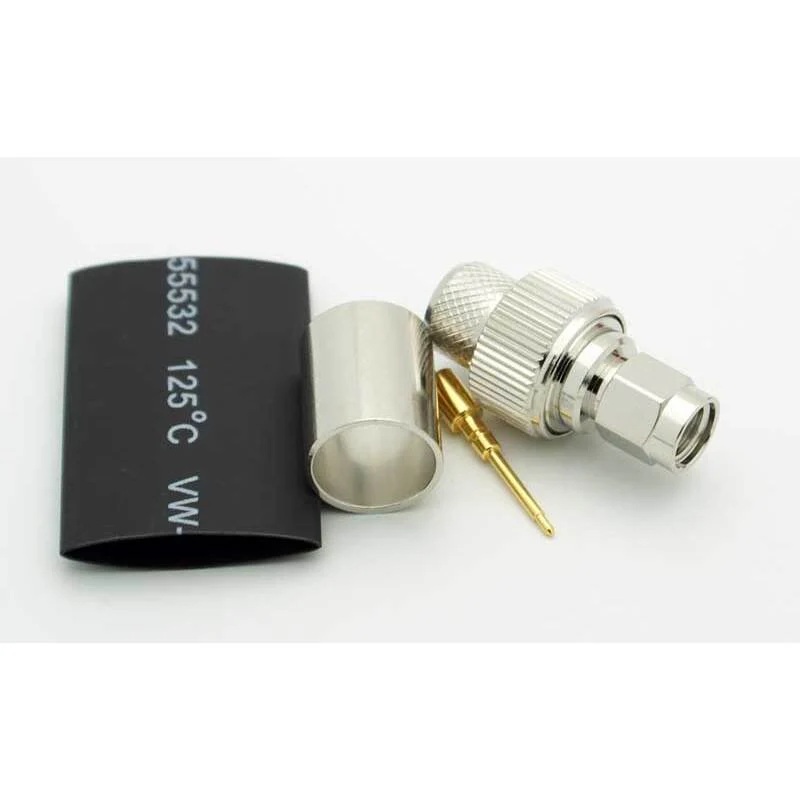

The 3-piece design includes a solder-on center pin, main connector body, and a crimp-on ferrule matched specifically for LMR-400 cable. Just solder the center pin to your cable’s conductor, crimp on the ferrule, and enjoy a solid, professional-grade RF connection.

Specifications

• Type: SMA male crimp connector (3-piece)
• Cable Compatibility: LMR-400 coaxial cable
• Mount Style: Inline / line mount
• Material: Nickel-plated body; gold-plated brass or copper conductors
• Overall Dimensions: 1.40" Long x 0.57" Diameter
• Quantity: 1 connector per package

How to Use

1. Strip your LMR-400 coax cable to expose the center conductor and shield.
2. Solder the center pin from the 3-piece connector onto the center conductor.
3. Slide the main connector body and ferrule onto the cable.
4. Crimp the ferrule using a compatible crimp tool for a secure, lasting fit.

This SMA male 3-piece crimp connector for LMR-400 is ideal for DIY RF projects, home networking, and reliable antenna installations. Enjoy easy installation and quality connections every time.
