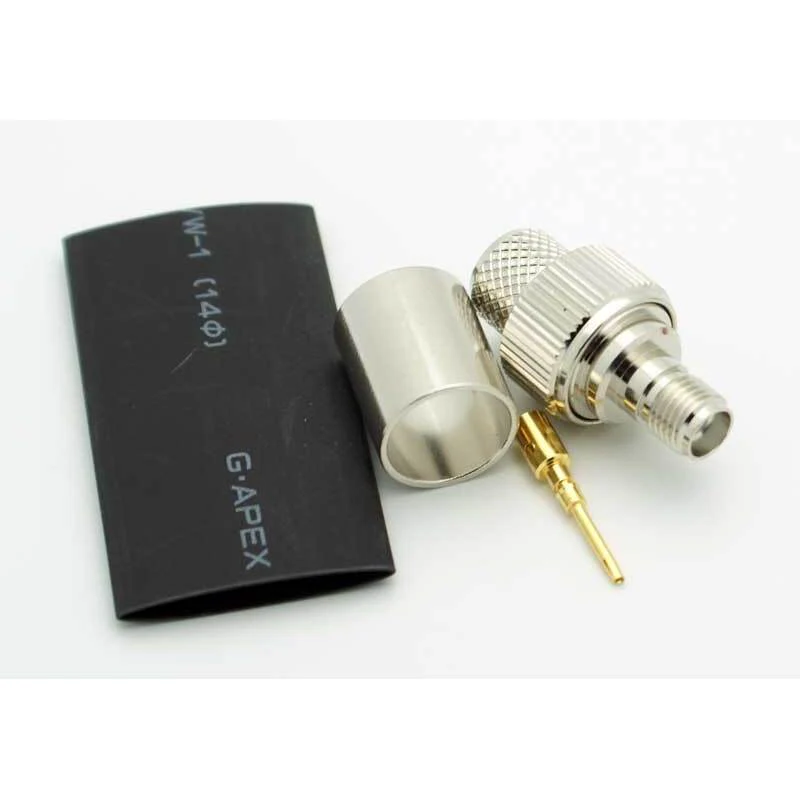

SMA Female 3 Piece Crimp Connector for LMR-400 Coax

High-Quality SMA Female Crimp Connector for LMR-400 Coaxial Cable

This SMA female 3 piece crimp connector is designed for easy installation on LMR-400 coaxial cable. Perfect for amateur radio, Wi-Fi setups, and other RF applications, this inline/line mount SMA female connector is both reliable and simple to use, making it ideal for everyday consumers and DIY enthusiasts.

Features and Benefits

• Compatibility: Crimps directly onto LMR-400 coax cable.
• 3 Piece Design: The center pin is soldered to the center conductor, then the connector is secured with the provided crimp ferrule for a solid, professional connection.
• Durable Construction: Constructed with a quality nickel plated body and gold plated brass or copper conductors for optimal signal transfer and corrosion resistance.

Technical Specifications

• Connector Type: SMA female crimp connector
• Cable Compatibility: LMR-400 Coaxial Cable

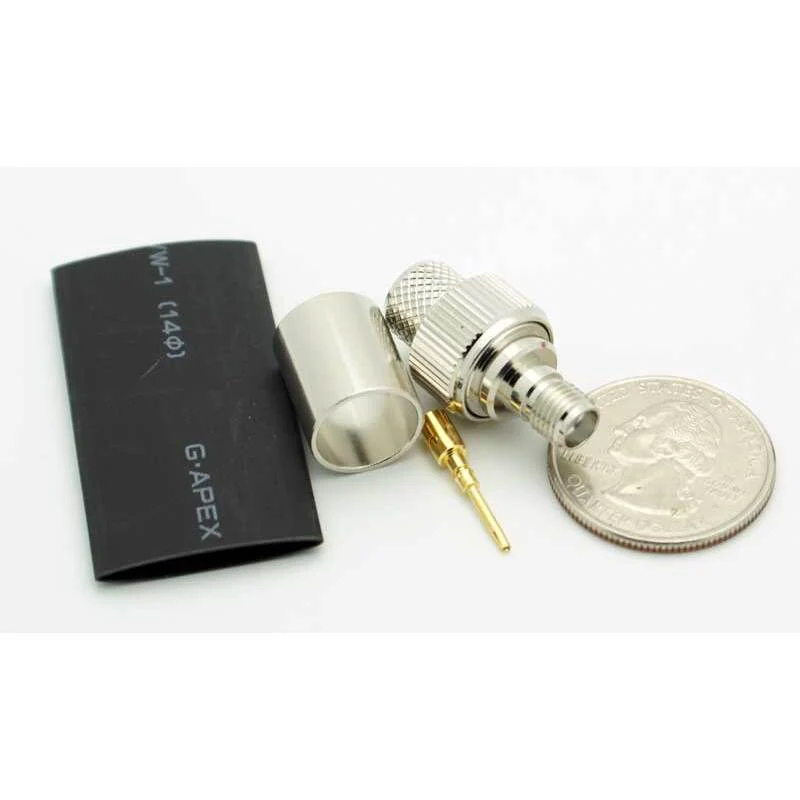

• Design: 3 piece (body, center pin, crimp ferrule)
• Body Material: Nickel plated
• Contact Material: Gold plated brass or copper
• Overall Length: 1.40"
• Diameter: 0.57"
• Quantity: 1 connector per package

Easy Installation Instructions

1. Strip the LMR-400 coaxial cable to expose the center conductor and braid according to standard wiring diagrams.
2. Solder the center pin onto the center conductor of the coax.
3. Slide the connector body over the pin, position the ferrule over the braid, and use a crimp tool to securely fasten the connector to the cable.

Perfect for a Range of RF Projects

This SMA female crimp connector for LMR-400 cable is a great solution for anyone working with antennas, RF adapters, Wi-Fi routers, cellular equipment, or test setups. The easy-to-use design means you will get professional results with standard tools at home.
