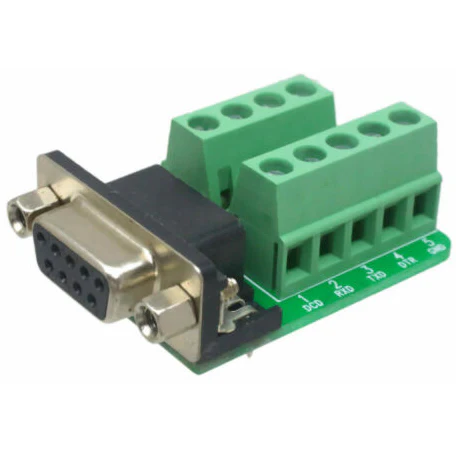

DB9 Female Breakout Board to Terminal Block Adapter

Easy Wiring for DB9 Connections

Our DB9 breakout board female offers a simple way to convert a DB9 connector to screw terminals, making wiring and prototyping easier than ever for everyday users and DIY electronics enthusiasts. No soldering is required—just insert your wires and tighten the screws.

Versatile DB9 to Terminal Block Adapter

This DB9 female breakout adapter is perfect for connecting RS-232 serial devices, CNC machines, PLCs, and custom cable projects. The DB9 to screw terminal adapter allows quick changes, repairs, or custom wiring for a wide variety of electronics and industrial devices.

Features and Technical Data

• Connector Type: DB9 female (9-pin D-sub)
• Terminal Block: 9 screw terminals—one for each DB9 pin
• Pinout: All 9 pins individually brought out to labeled terminals
• Wire Size: Accepts 16-28 AWG wire
• Board Dimensions: Approximately 53mm x 33mm x 18mm
• Case Material: Durable PCB with pre-installed terminal block
• Mounting Holes: For easy installation in your enclosure or panel
• Product ID: VUPN1023

Quick and Reliable DB9 Female Breakout

This DB9 connector breakout board makes troubleshooting or creating custom serial cables fast and straightforward. Labeled terminals let you avoid guessing or checking pin diagrams, while the robust screw clamp terminals ensure a secure and reliable connection every time.

Applications

• RS-232 communication projects
• Prototyping and testing serial devices
• Industrial automation equipment
• CNC controls and PLCs
• Custom cable and adapter creation

Why Choose This DB9 Female to Terminal Block?

This DB9 terminal block adapter is an ideal solution for hobbyists, students, and professionals who need an easy way to break out serial connections without hassle. Enjoy quick setup, clear labeling, and robust connections—without the need for soldering or special tools.
