$398.98The Story
All Meisei Tools units are Made In The U.S.A.!
Â

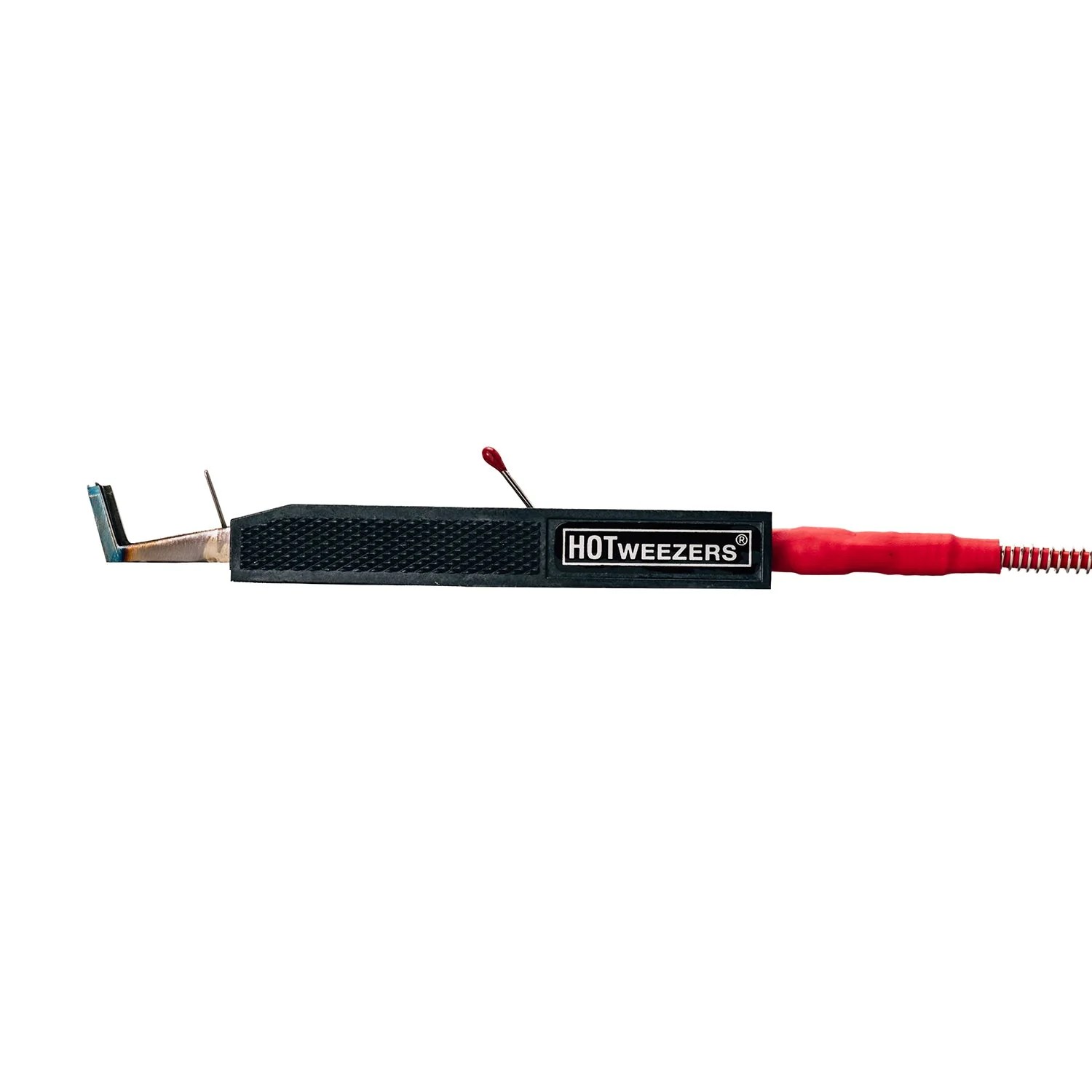

The HOTWEEZERS®
Â

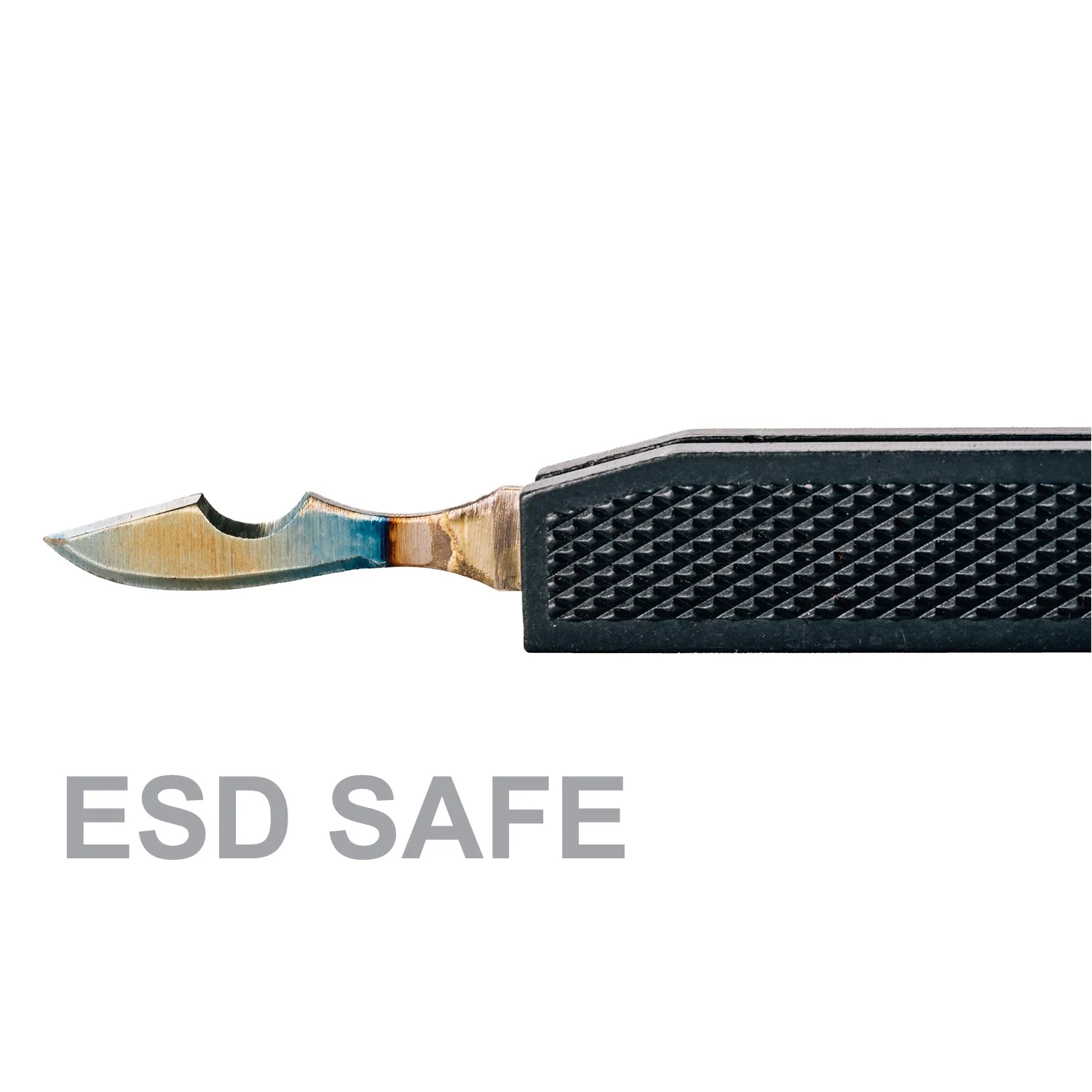

Meisei’s HOTWEEZERS® is a unique, lightweight hand instrument that is shaped like a pair of tweezers with an angled head. Depending on the model, the stripping blade of the HOTWEEZERS® has six different gauge holes ranging from AWG 36 to 18 to match the diameter of the wire or cable’s core metal conductor (or no holes, if a larger/different gauge is needed). HOTWEEZERS® rapidly achieve user-selected temperatures (up to 1,500° F) allowing the user to melt through wire casings and insulation without damaging the underlying conductor.
Product Features
- Heating element is completely sealed in a high-temp alloy preventing oxidation and improving heat transfer efficiency
- Precision blade alignment ensures defect-free stripping
- Stripping head will not distort nor lose alignment
- Mere 15° blade rotation motion required reducing potential conductor distortion
- Built in adjustable strip length gauge
- No maintenance required
Specifications
- Length: 4.5 inches
- Weight: 2 ounces (57g)
- Power cord: 3’ standard (optional 4’ and 6’ lengths are available)
- Temperature Range: 300° F to 1,500° F
- Power Output:
- 7 Series: Up to 12 volts
- Hole Sizes:
- 7B: AWG 28, 26, 24, 22, 20, 18
- ESD Protection:
- 7 Series: Yes, meets the requirements of MII-STD-2000A
__________________________________________________________________________________
The Meisei Power Supply
The Meisei HOTWEEZERS® are powered by Meisei Power Supplies. The Power Supplies have a solid, compact design to minimize space on the workbench with adequate heft to remain stationary during use. The Power Supplies are custom designed and built inhouse by Meisei to ensure the precise specifications are maintained to optimize the performance of Meisei HOTWEEZERS® hand units.
Â
Product Features
- On/Off switch
- Power indicator light
- Analog temperature control
- Unique hand unit holder that activates idle mode and decreases temperature
- User-replaceable fuse
- Grounded three-prong plug to satisfy OSHA requirement
Â
M-20 Specifications
- Dimensions: 3” x 5¾” x 5“
- Weight: 3 lbs (1.35 kg)
- Voltage: 100v, 115v or 225v
- Power Consumption: Up to 46 watts
- ESD Safe: Yes
__________________________________________________________________________________
What does this listing include (what do you get):
-You get the card board box it comes in.
-You get the base station power supply unit: M-20 (ESD Safe)
-You get the tweezer stripper attachment: 7B (ESD Safe)
-Power cord (attached to base unit)
Â
PLEASE NOTE: Meisei Tools has released a new digital unit (the M-30) and new hand tools that supersede and replace this unit. While this unit, and the old hand tools are still currently being produced and sold, they will be discontinued in the future, in favor of the new Digital M-30 series unit. The new M-30 supports both ESD and Non-ESD operations (depending on the tool used). We do not have a timeline for any product discontinuation yet. Additionally, nothing is officially announced or discontinued yet. We just know that, at some point in the future, this will happen. You can use your old hand tools on the new M-30 unit with the adapters listed below. Note that these adapters are not included by default. Add the ones you need to your cart! Need help? Email us, we are experts on Meisei products and can help you get set up.
ADAPTERS:

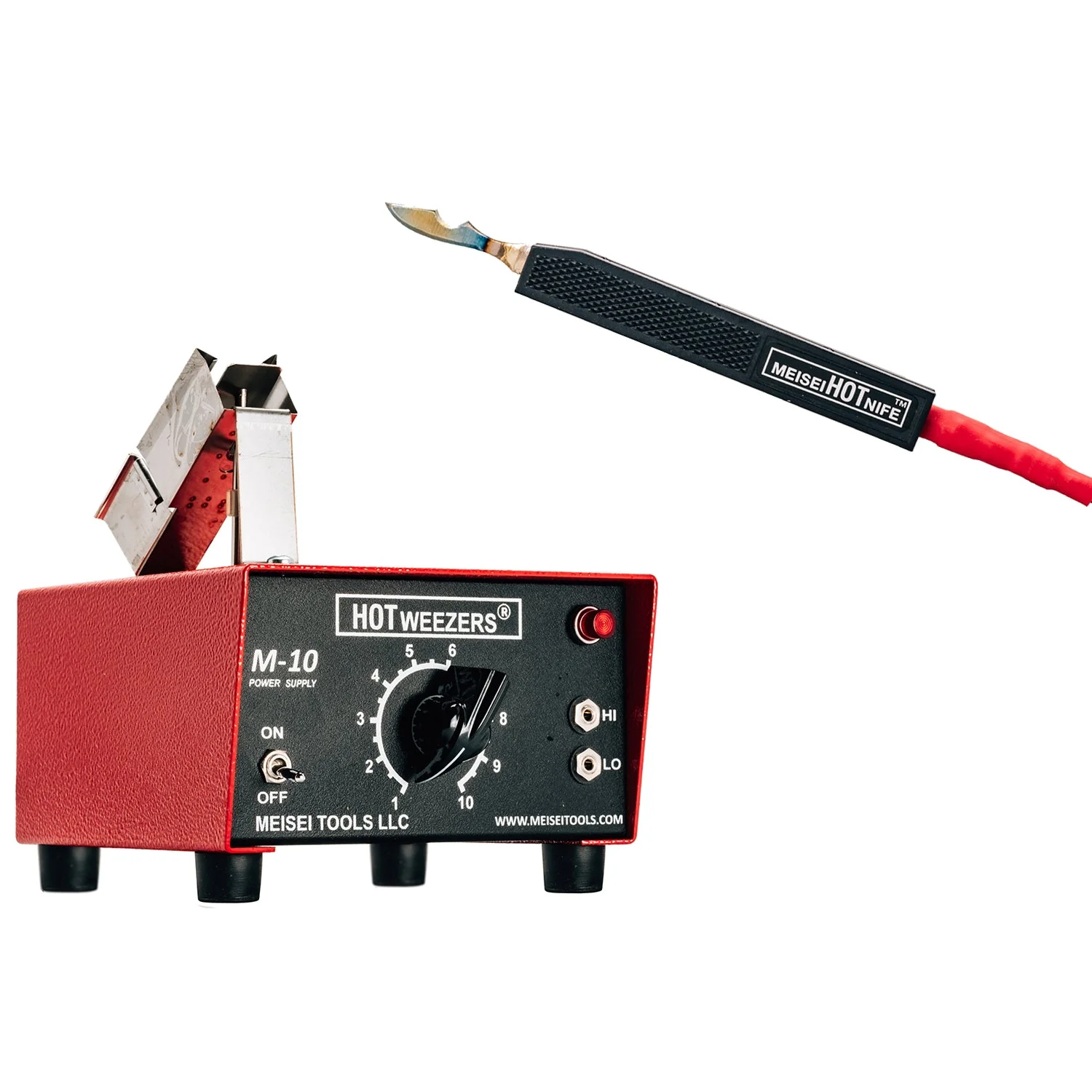

VUPN2722 - Lets You Use New M-30 Tools On Old M-10 Base (NON-ESD Safe)
VUPN2723 - Lets You Use Old M-10 Tools On New M-30 Base (NON-ESD Safe)
VUPN2724 - Lets You Use Old M-20 Tools On New M-30 Base (ESD-SAFE)
VUPN2721 - Lets You Use New M-30 Tools On Old M-20 Base (ESD-SAFE)
Â
To all Military, Government and Defense purchasers; these items are Made In The U.S.A. and our cage code is 9SZN9. We are always able to quickly provide a quote. Additionally, we are able to manually directly process credit card payments if your organization disallows the use of the Shopify Payments system. We are here to help, feel free to email or call us.
