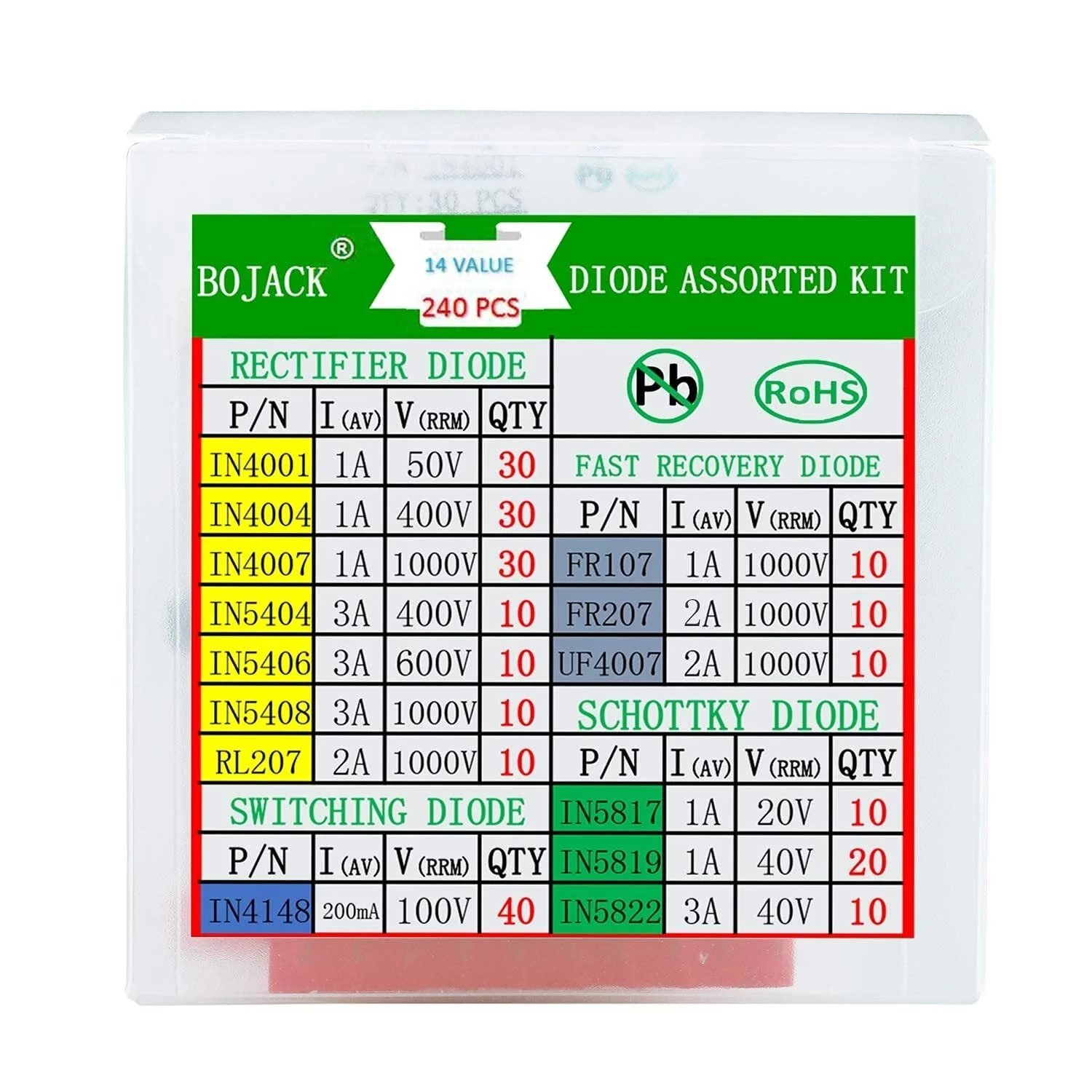

14 Value Diode Assortment Kit – 240 Piece Set

All-in-One Diode Assortment Kit for Electronics Projects

This diode assortment kit includes 240 pieces in 14 popular values, making it the perfect choice for hobbyists, electronics beginners, and DIY repairs. Each diode is carefully selected for reliability in everyday applications, breadboarding, prototyping, and electronics maintenance. Whether you are assembling a starter diode kit or restocking your workbench, this electronics diode kit has you covered.

Comprehensive Range of Diode Values

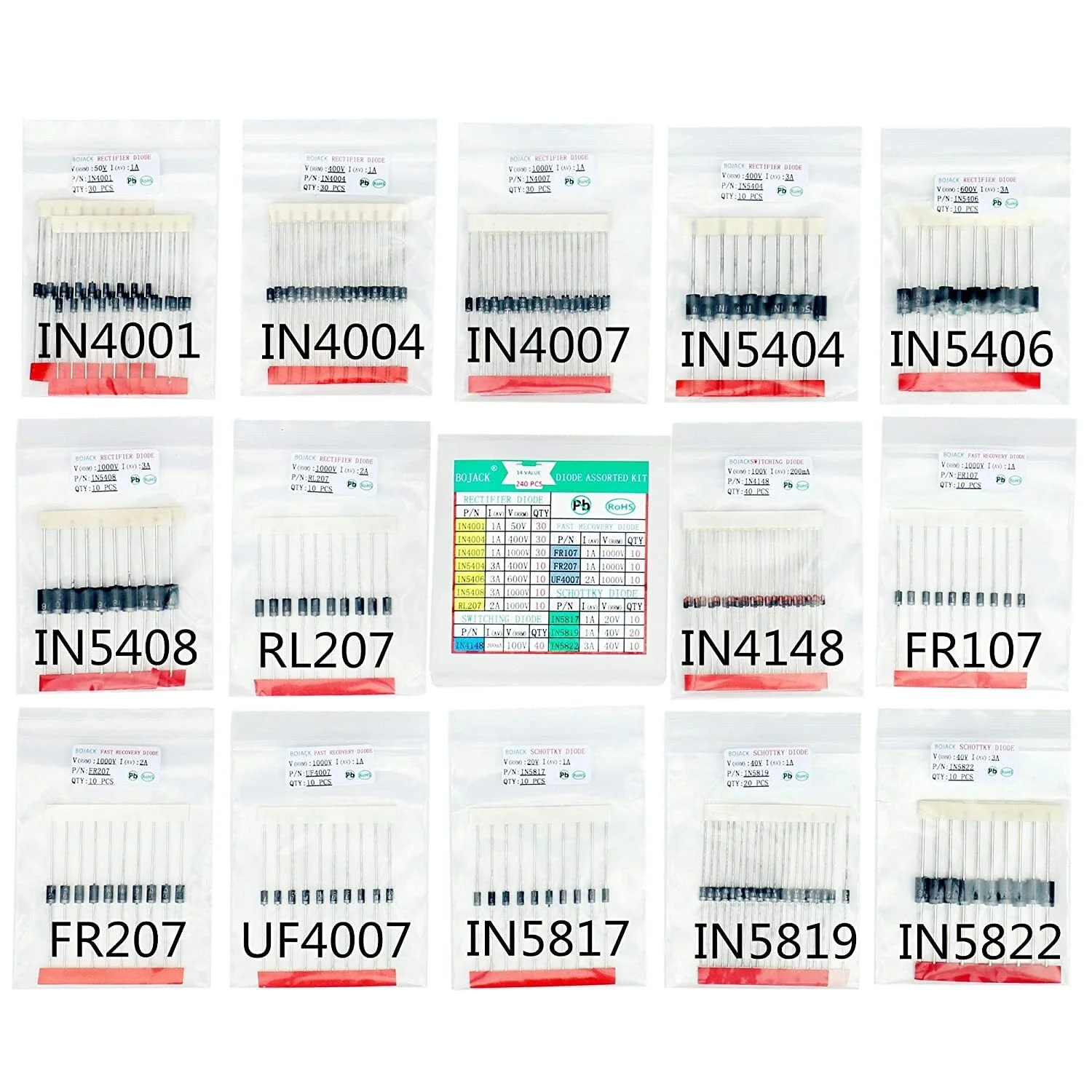

Get the diodes you need for almost any electronics project with this assorted diodes kit:

• Rectifier Diodes:
  • 30 × 1N4001 (1A, 50V)
  • 30 × 1N4004 (1A, 400V)
  • 30 × 1N4007 (1A, 1000V)
  • 10 × 1N5404 (3A, 400V)
  • 10 × 1N5406 (3A, 600V)
  • 10 × 1N5408 (3A, 1000V)
  • 10 × RL207 (2A, 1000V)
• Fast Recovery Diodes:
  • 10 × UF4007 (1A, 1000V)
  • 10 × FR107 (1A, 1000V)
  • 10 × FR207 (2A, 1000V)
• Schottky Diodes:
  • 10 × 1N5817 (1A, 20V)
  • 20 × 1N5819 (1A, 40V)
  • 10 × 1N5822 (3A, 40V)
• Switching Diodes:
  • 40 × 1N4148 (200mA, 100V)

Great for anyone building circuits, repairing equipment, or expanding their component assortment collection.



Easy to Use & Convenient Storage

This diode variety pack comes organized in a handy storage box with clear labeling, making it simple to find the right component for your task. Each value is separated for quick selection and inventory management. Perfect for personal electronics kits, classrooms, or workshop use.

Applications & Usage Tips

Diodes are essential components for one-way current control, protecting circuits, voltage rectification, and signal switching. This component assortment kit is ideal for:

• Basic rectification in power supplies
• Reverse polarity protection
• High frequency and fast switching circuits
• General electronics repair and prototyping
• Educational electronics labs

To use: Identify the diode type you need, insert it into your circuit according to the polarity (marked by the band), and solder or plug into a breadboard as required. Always check voltage and current ratings for your application.



Why Choose Vetco’s Diode Assortment Set?

With 14 of the most-used diode values and 240 pieces, this electronics repair diode kit offers excellent value and convenience. All pieces are industry-standard part numbers for compatibility with most electronics projects. Vetco Electronics stands behind our parts with quality you can trust and expert support for all skill levels. Perfect for anyone working with electronics components at home, in class, or in the lab.
