6 Pin Waterproof Connector – 25 Amp, Male/Female Pair with Cap

Reliable 6 Pin Waterproof Connector for Outdoor and Marine Use

This 6 pin waterproof connector is perfect for outdoor, marine, and industrial projects requiring a dependable connection. With an IP68 rating, it keeps your electrical connections safe from water, dust, and harsh weather. Designed for 25 amp loads, this heavy-duty waterproof connector is ideal for powering lights, equipment, or motors in challenging conditions.

Easy-to-Use Solder-Type Male and Female Connector Pair

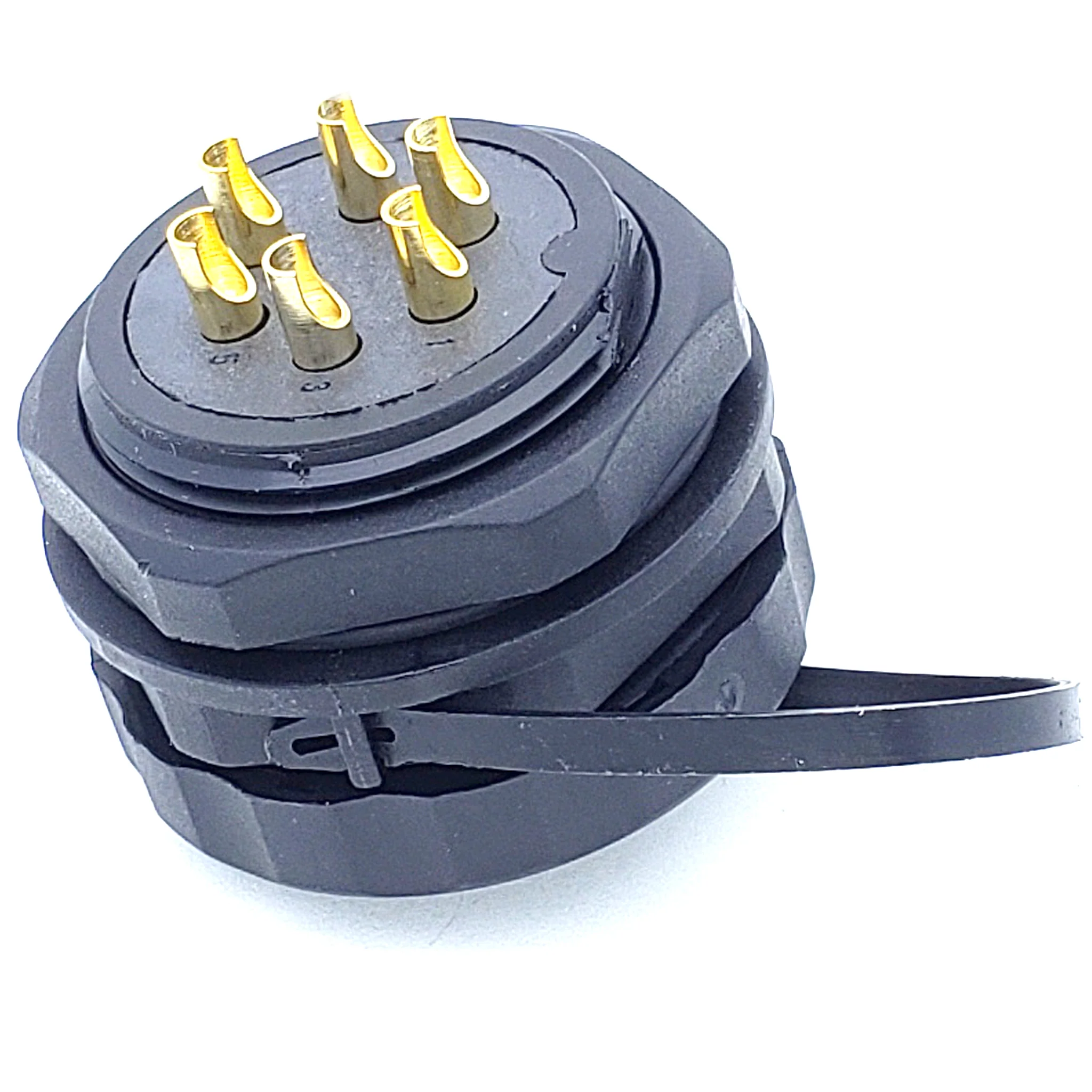

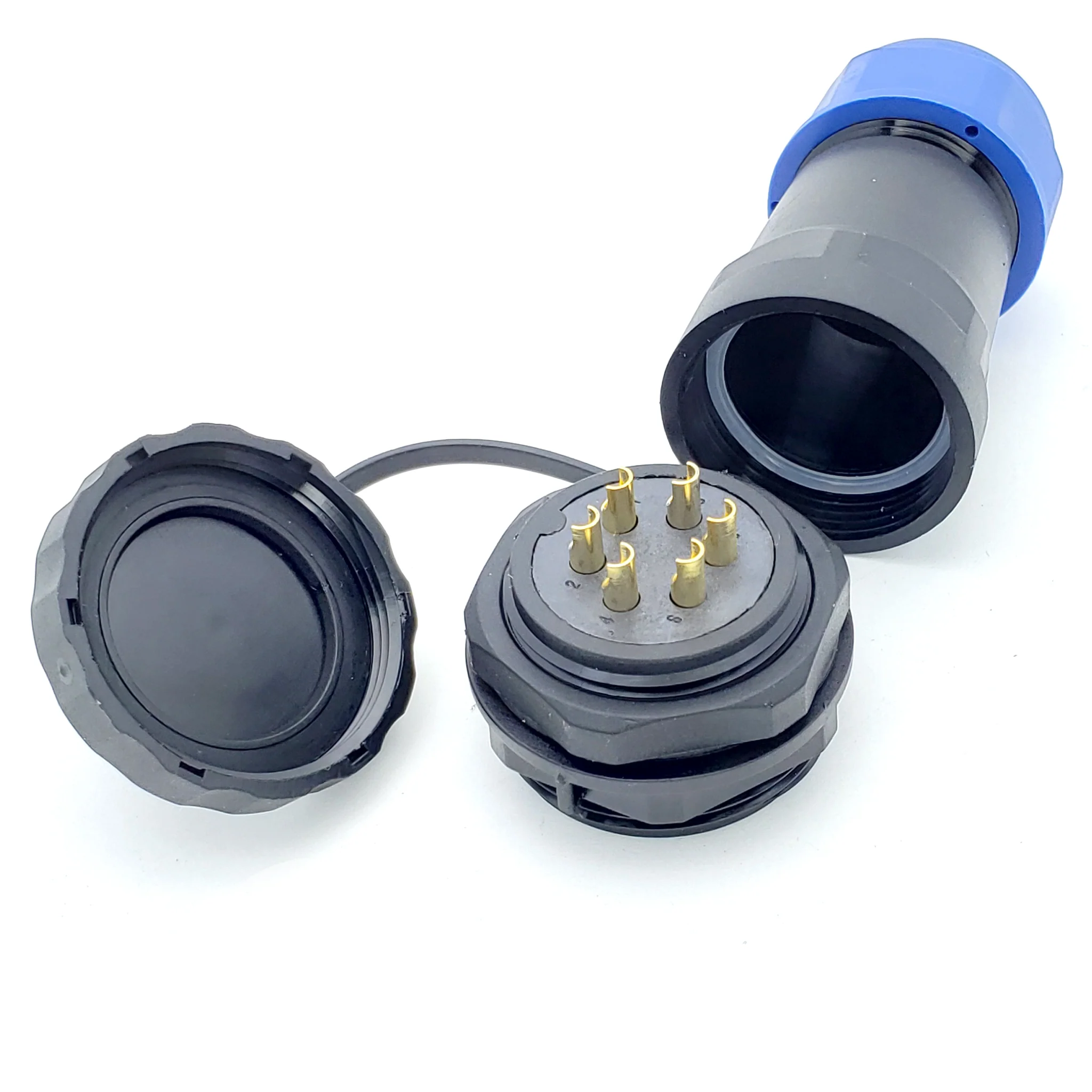

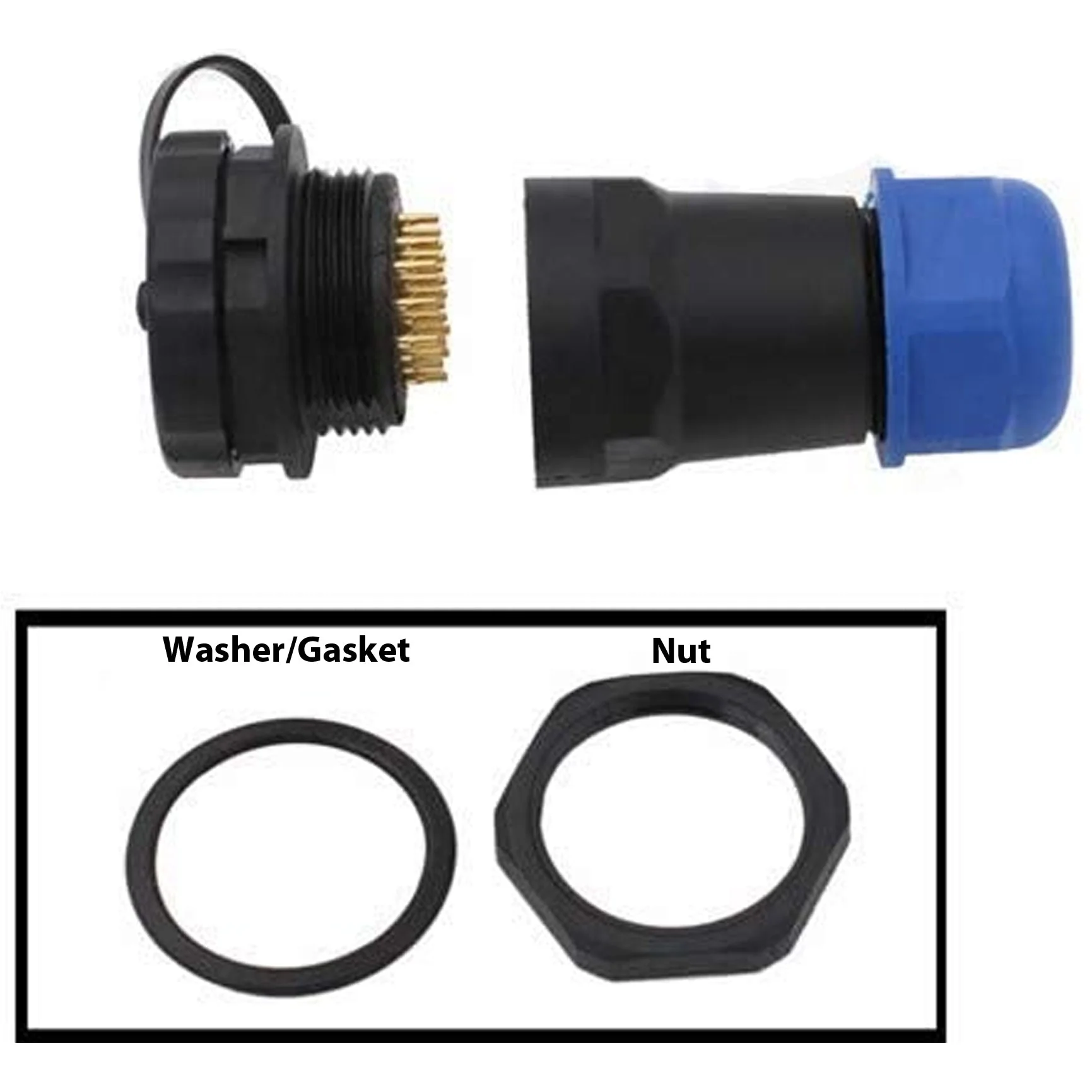

Installation is straightforward. Each connector comes with gold-plated solder cups on the rear for secure, reliable wire attachment. Simply solder your wires to the cups and connect the male and female ends with the threaded coupling. The package includes a waterproof/dustproof cap for extra protection when the connector is not in use.

Built for Tough Environments

• IP68 Rated: Fully waterproof and dustproof for outdoor and marine environments
• Material: Shell made from thermoplastic Nylon66 (fire resistance V-0), insert made from thermoplastic PPS (max temperature 260℃)
• Panel Cutout Diameter: 29mm
• Cable Outer Diameter Range: 12–15mm
• Contact Material: Brass with gold plating for corrosion resistance and excellent conductivity
• Termination: Solder-type connections for security and dependability
• Mating Cycles: Over 500 connection/disconnection cycles
• Temperature Range: -40°C to +100°C
• Shock & Vibration Tested: Rated for operation under vibratory and shock loads

Perfect for Any Weather – Indoors or Outdoors

This marine-grade, heavy-duty connector is a top choice for boats, trailers, RVs, outdoor signs, and industrial equipment. Its weatherproof design and strong construction guarantee safe performance in rain, snow, or direct sun. Thanks to the threaded coupling system, your connections stay tight and secure even under tough conditions.

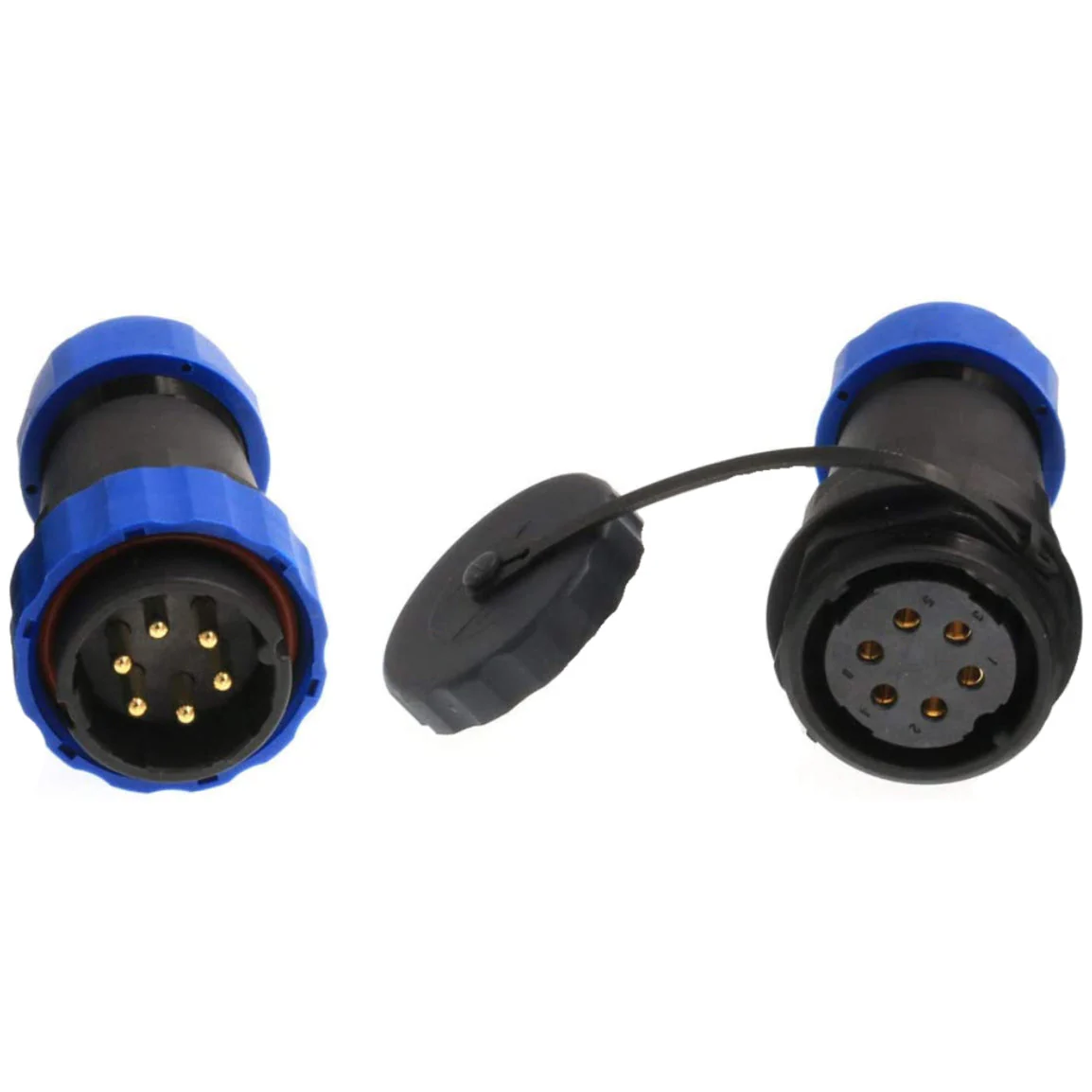

What’s Included

• 1 cable plug with male pins
• 1 cable plug with female pins
• 1 waterproof / dustproof cap

Model: HE29 | Product ID: VUPN1943
