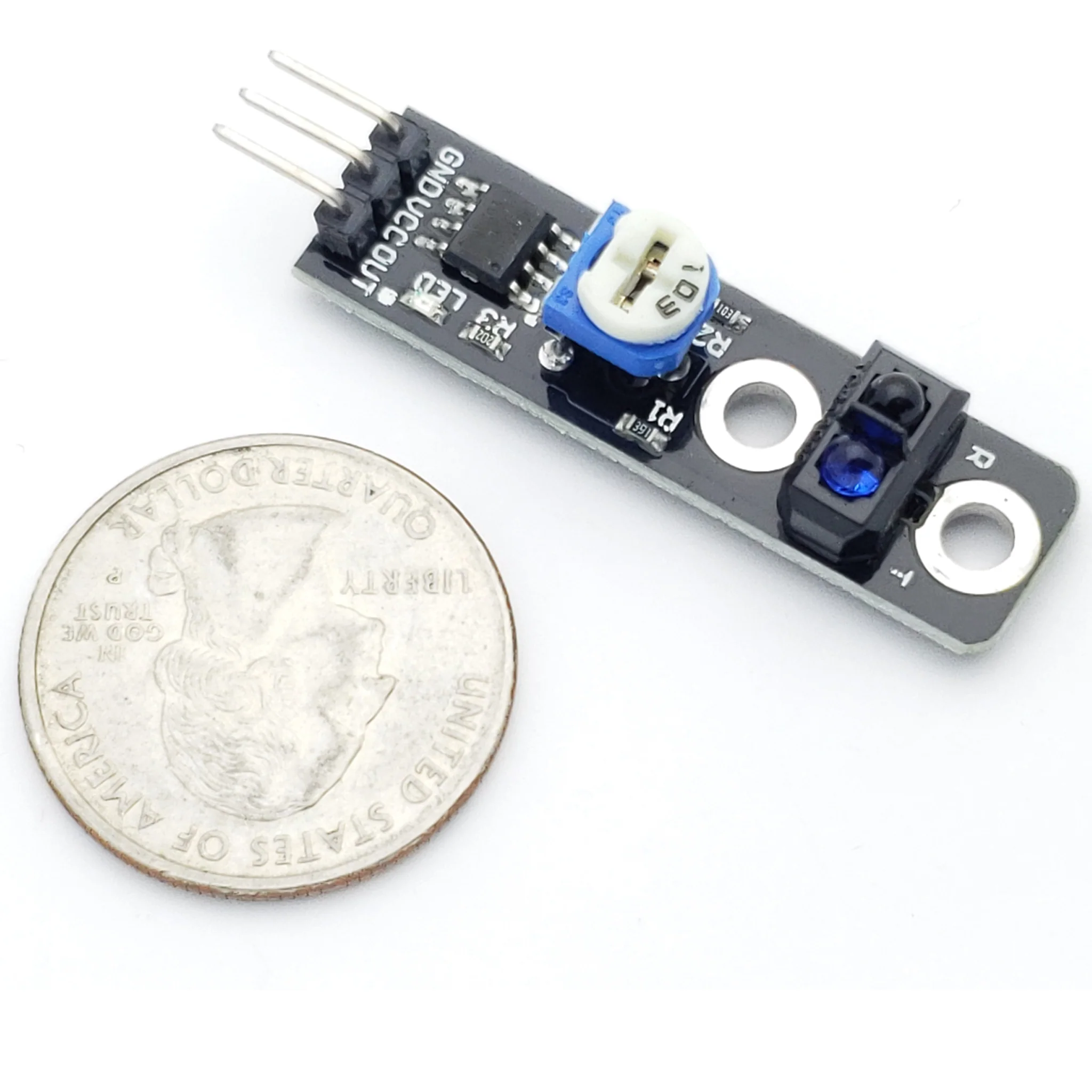

Line Following Sensor for Arduino – Reflectivity Detection Made Simple

Easy Line Tracking for Your Arduino Projects

The Reflectivity / Line Following Sensor for Arduino is the perfect solution for adding line tracking and reflective surface detection to your DIY projects. Designed for beginners and hobbyists, this sensor module makes it easy to build a line following robot or monitor wheel rotation using your Arduino.

How the Reflectivity Sensor Works

This module uses an infrared emitter and detector pair to sense how much light a surface reflects. When the reflected light intensity passes a set threshold, the sensor outputs a digital HIGH signal. The sensitivity is easily adjustable with the onboard potentiometer, letting you fine-tune the sensor for different surfaces or lighting conditions.

Simple Arduino Connection

Connecting the line following sensor is straightforward. Just use three wires: V+ (5VDC), GND, and a digital output pin on your Arduino board. The module uses the reliable LM393 comparator chip to ensure accurate and stable detection.

Perfect for DIY Robots and More

• Line Following Robot: Quickly add line tracking capability to your robot using black tape or a painted path.
• Rotation Detection: Apply a white mark on a wheel or motor shaft to count rotations and monitor speed.
• Adjustable Sensitivity: Easily set the detection threshold to match your project needs.

Technical Specifications

• Operating Voltage: 5V DC
• Output: Digital HIGH/LOW signal
• Adjustable sensitivity via onboard potentiometer
• Detection Method: Infrared emitter and detector pair
• Comparator IC: LM393
• Dimensions: Compact and easy to fit in small projects
• Wiring: V+ (5V), GND, Signal Output

What’s Included

• 1 x Reflectivity / Line Following Sensor for Arduino
  (Product ID: VUPN6320)

Unlock new possibilities for your Arduino projects with this affordable, easy-to-use line following sensor module.
