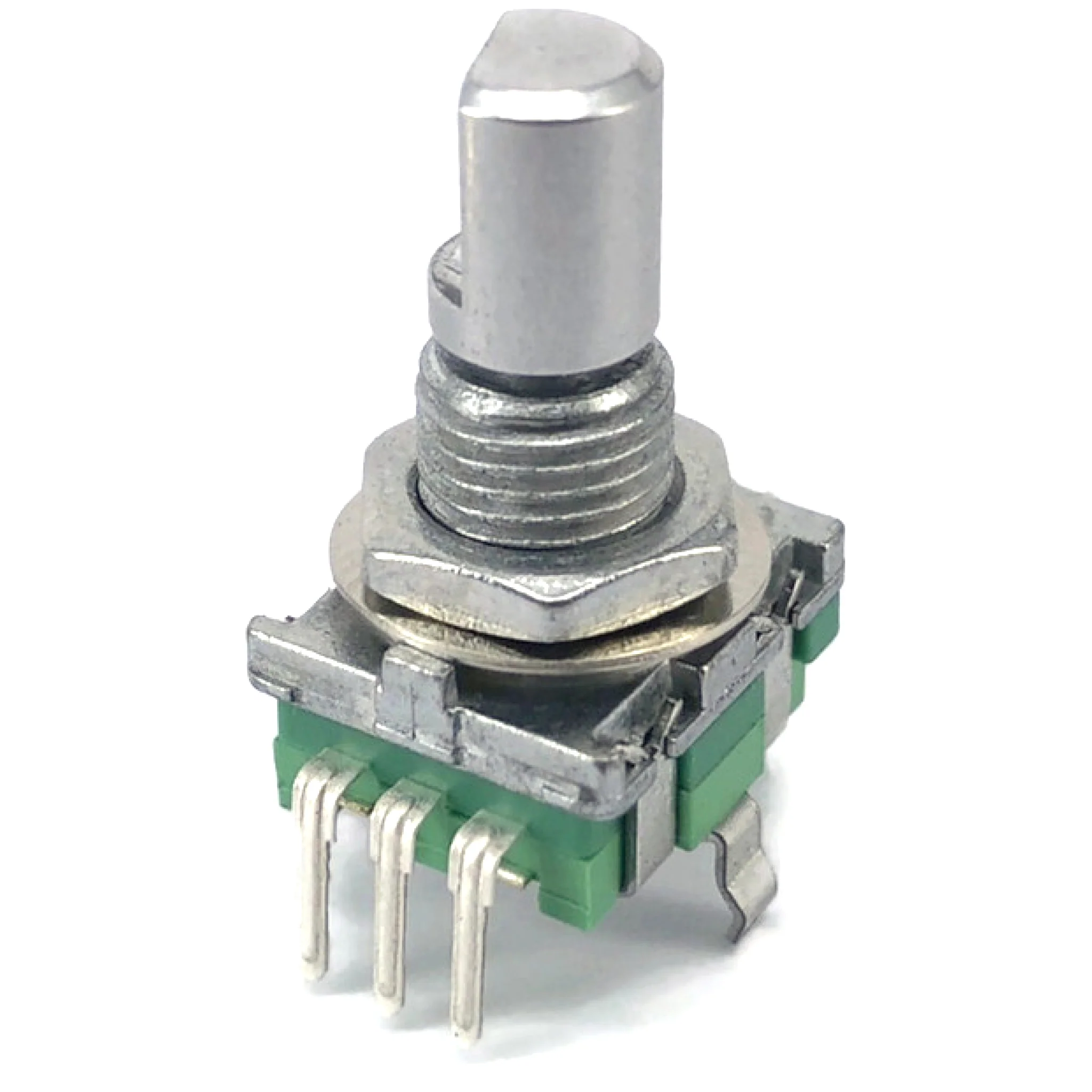

Rotary Encoder with Push Button Switch – 20-Detent, 360° Rotation
Easy-to-Use Rotary Encoder for Projects and Repairs
This rotary encoder with push button switch is perfect for a wide range of electronics projects and control panels. Featuring smooth 360-degree rotation and a satisfying 20-detent feedback, this rotary encoder makes selection and adjustment easy for everyday consumers, hobbyists, and tinkerers.
Product Features
- 20-Detent Incremental Rotary Encoder: Delivers crisp tactile feedback with each step, ensuring precise control for menu navigation or volume adjustment.
- Built-in Push Button: Integrated SPST momentary normally-open push switch for additional input control – great for “select” functions or resetting values.
- 360-Degree Rotation: Allows infinite turning in either direction for flexibility in adjusting your device’s settings.
Technical Specifications
- Pulses per Rotation: 20
- Shaft Diameter: 6mm
- Shaft Length: 10mm
- Overall Dimensions: 15mm (L) x 12mm (W) x 25mm (T)
- Rated Voltage: 5VDC
- Mounting Hole Size: 7mm
- Includes Mounting Hardware: Washer and nut for secure installation
Wiring and Controls
- 2-pin side: Connects to the SPST push button switch
- 3-pin side: Rotary encoder signal outputs and ground
- Side tabs: For mounting and added stability
Applications and Compatibility
This rotary encoder with push button switch works well with Arduino, Raspberry Pi, and other microcontrollers. Use it to add user-friendly rotary input to your DIY electronics, audio gear, robotics, 3D printers, and more.
Previously known under part number: VUPN7453
