2 Position Phoenix Connector Jack – PCB Mount

Reliable 2 Position PCB Mount Connector

Upgrade your next electronic project with this user-friendly 2 position Phoenix connector jack. Designed for easy installation on circuit boards, this PCB mount connector offers a secure and pluggable solution for connecting pairs of wires – perfect for hobbyists, makers, and everyday consumers.

Easy-to-Use Phoenix Connector for Circuit Boards

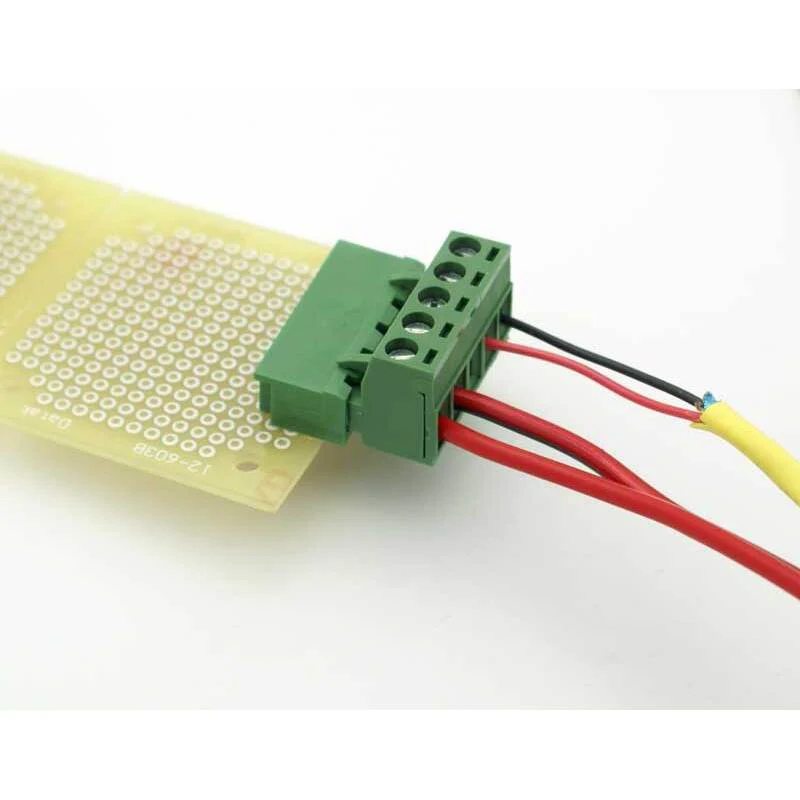

This horizontal Phoenix connector PCB mount features solder pins set at a standard 0.2" (5.08mm) center spacing, making it a great fit for prototype boards and standard PCB layouts (also compatible with 0.1" spaced protoboards). The 90° angled design keeps your wiring neat and parallel to the PCB, allowing for simple assembly and rework.

Key Features and Benefits

• Mates with Phoenix Connector Terminal Plugs – Enables easy plug/unplug wire connections, no tools required.
• Durable Construction – Tin-plated brass contacts and quality polyamide housing for long-term performance.
• Safe and Certified – Rated at 15A @ 300V, UL Listed & CSA Certified for safety and reliability.
• Flexible Applications – Commonly called "Euro Terminal Blocks" or "Euro-Mag Terminal Blocks." Suitable for DIY, home projects, or custom electronics.

Technical Specifications

• Manufacturer: Philmore
• Manufacturer Part Number: 13-2802
• Positions: 2
• Mounting: Horizontal PCB Mount, 90° angle
• Center Spacing: 0.2" (5.08mm)
• Recommended PCB Hole Size: 0.055" (1.4mm) (use #55 drill bit)
• Contact Material: Tin Plated Brass
• Housing Material: Type 6/6 Polyamide 94V-0
• Current Rating: 15A
• Voltage Rating: 300V
• Operating Temperature: -40°C to 105°C (-40°F to 221°F)
• Certifications: UL Listed, CSA Certified

Why Choose a 2 Position Phoenix Connector for Your Project?

This two position Phoenix connector jack is built for simple and secure PCB integration. Whether you need a PCB mount 2 position terminal block connector for home automation, audio projects, or general electronics, it allows for easy, tool-free wire changes. Enjoy cleaner setups and reliable connections every time with this convenient Phoenix connector for circuit boards.
