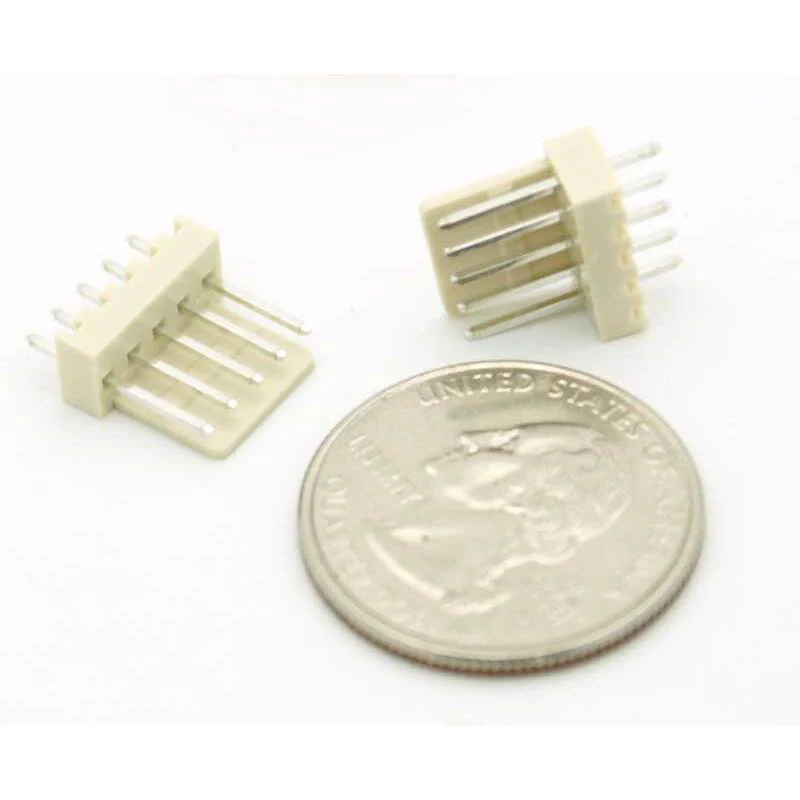

5 Pin 0.1" Polarized Locking Male Header – 2 Pack

Reliable 5 Pin Male Header for Easy PCB Connections

The 5 pin 0.1" polarized locking male header from Philmore (part number 70-4805) is a versatile and easy-to-use connector perfect for everyday electronics projects. Designed for quick soldering onto a standard PCB with 0.1 inch (2.54mm) pin spacing, this connector offers a secure and reliable connection for any DIY or hobbyist project.

Key Features of the Polarized Locking Header Connector

• Polarized Locking Mechanism: Safe and secure connection—prevents accidental unplugging; a tab and indentation design ensures only the correct orientation fits.
• Breadboard Compatibility: Square pins make it a perfect fit for breadboards and prototyping boards, ideal for quick testing.
• High Current Rating: Reliable performance with a maximum current rating of 5A AC/DC, making it suitable for both power and signal applications.
• Durable Materials: Brass, tin-plated contacts for strong electrical conductivity, plus tough Nylon 66 housing for longevity.
• Interchangeable: Fully compatible with Molex KK series connectors and other standard 5 pin 0.1" header connectors.

Technical Specifications

• Manufacturer: Philmore
• Manufacturer Part Number: 70-4805
• Package Quantity: 2 male headers
• Pin Spacing: 0.1" (2.54mm) on center
• PCB Hole Diameter: 0.03"
• Max PCB Thickness: 0.063" (1.6mm)
• Voltage Rating: 250VAC/DC
• Current Rating: 5A AC/DC
• Withstand Voltage: 1000VAC for 1 minute
• Insulation Resistance: 1000MΩ
• Operating Temperature Range: -25°C to +85°C
• Contact Material: Brass, tin plated
• Housing Material: Nylon 66, UL 94V-2

Perfect for Everyday Projects and Repairs

Use this 5 pin 0.1 inch polarized locking male header for all your PCB wiring, power supply, machinery, or data connection needs. It’s a favorite for electronics hobbyists and tinkerers looking for a reliable, solderable, and breadboard-compatible header connector.

Looking for a replacement or upgrade? These headers are interchangeable with Molex KK series connectors and are trusted for both new builds and repairs. Sold in a convenient 2-pack so you always have a spare on hand.
