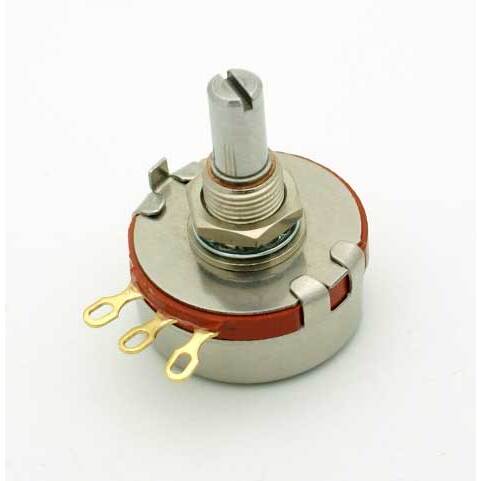

2.5K 2 Watt Linear Taper Potentiometer

Easy-to-Use 2.5K Ohm Linear Taper Potentiometer

Upgrade your electronic projects with this high-quality 2.5K 2 Watt linear taper potentiometer. Perfect for audio, hobby, and repair applications, this potentiometer gives you smooth, precise control with a single turn.

Durable Build for Everyday Use

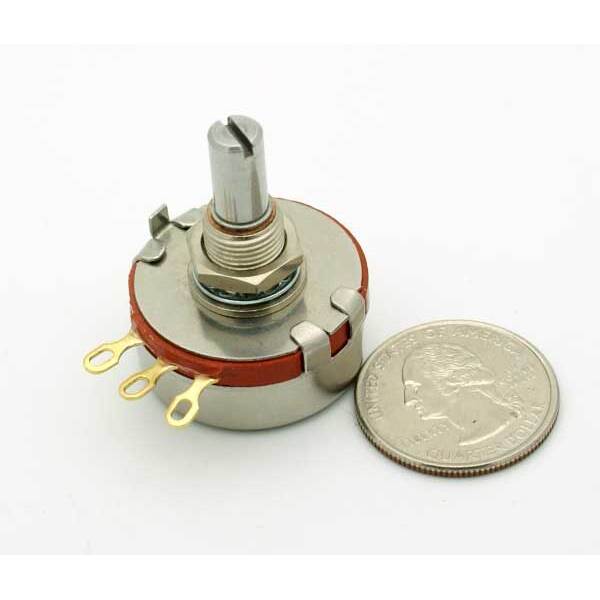

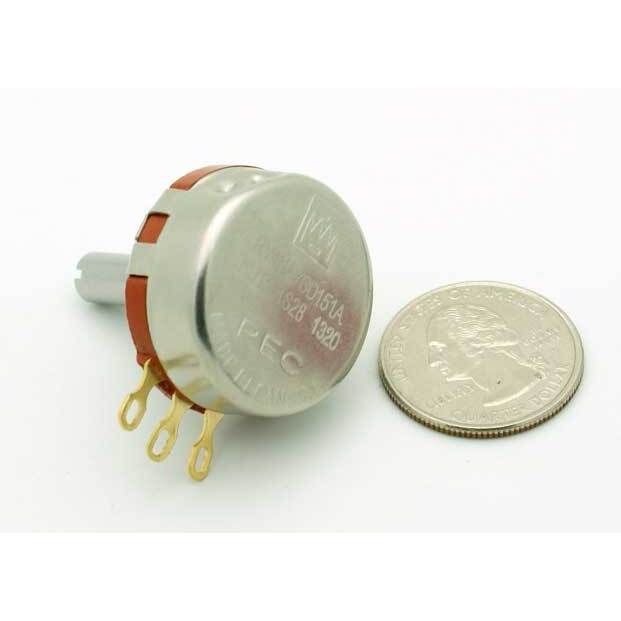

This panel mount potentiometer is built to last, featuring a stainless steel round shaft and sturdy housing. The gold-plated solder eyelet terminals guarantee reliable connections and resist corrosion, while the carbon resistive element offers long-lasting performance.

Easy Installation and Versatile Fit

• Panel mount design: Fits standard 3/8" mounting holes with included nut and lock washer
• Locating tab: Helps prevent unwanted rotation during use (can be folded or removed)
• Shaft: 1/4" diameter, 7/8" length with a 0.065" deep split for anti-rotation flanges on your knobs

Reliable Performance and Specifications

• Resistance: 2.5 KΩ (2,500 Ohm)
• Power Rating: 2 Watt
• Tolerance: ±10%
• Turns: Single-turn (314° rotation)
• Mounting Style: Panel mount, 3/8"

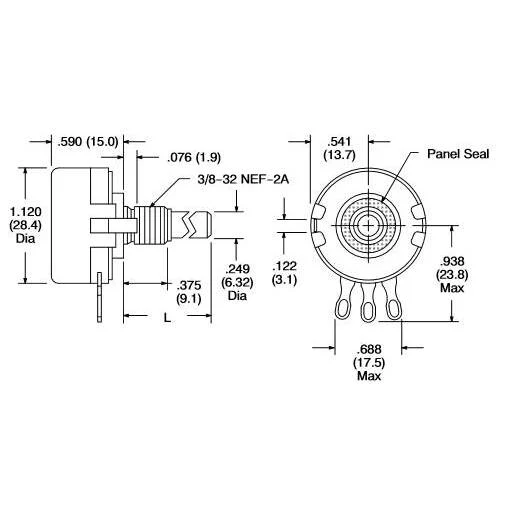

• Size: 1.12” diameter x 0.536” height (body)
• Termination: Gold-plated solder eyelets
• Resistive Material: Hot molded carbon
• Cycle Life: Rated for 25,000 cycles
• Meets or exceeds: MIL-R-94, QPL Listed

What’s Included

• 1 x 2.5K Ohm 2 Watt linear taper potentiometer (NTE 501-0007 / PEC KU2521S28)

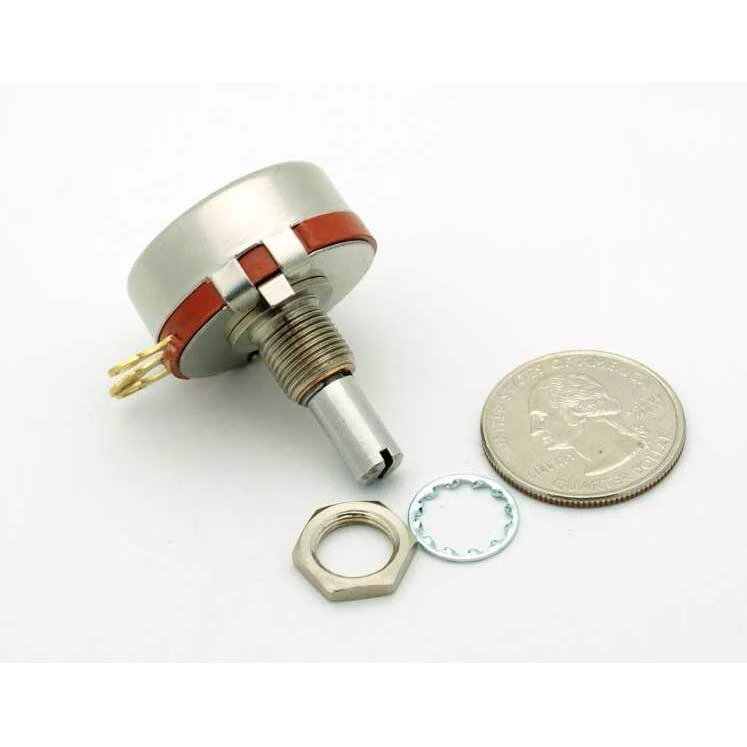

• Mounting nut and lock washer

Documentation

For more detailed information, see the Datasheet (pdf download).
