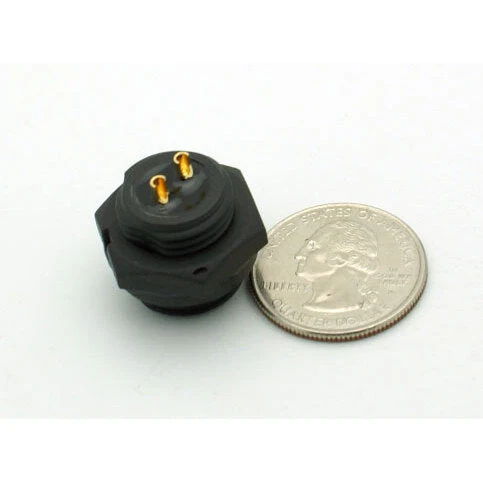

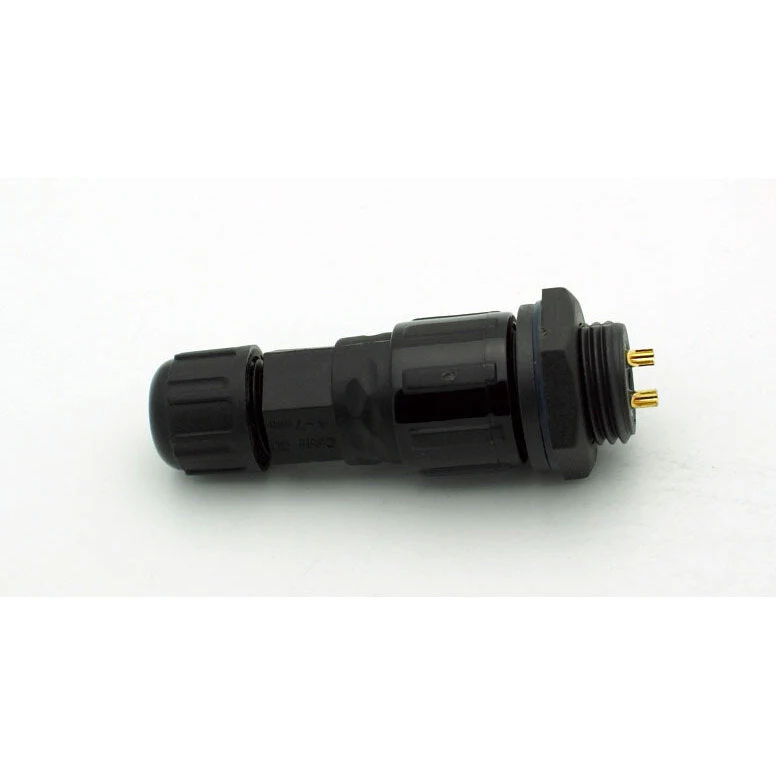

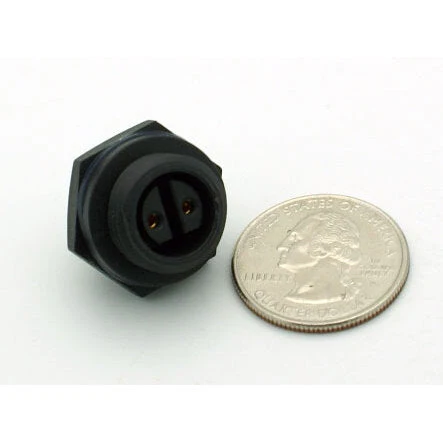

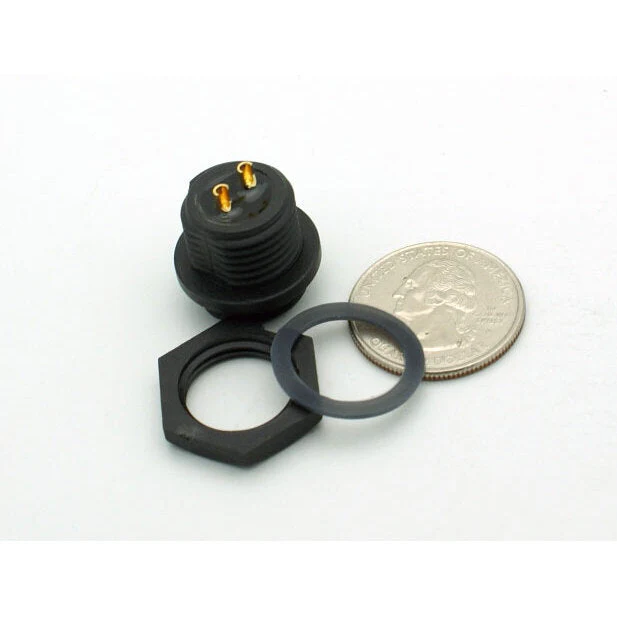

2-Pin Female Chassis Mount Waterproof Connector (18-24 AWG)
Reliable Waterproof Electrical Connector for Marine, Automotive, and Industrial Use
This 2-pin female chassis mount waterproof connector is designed to make electrical connections easy, safe, and secure. With a field installable design, this panel mount waterproof connector ensures reliable connections without the need for messy sealants or extra tapes. Perfect for marine applications, automotive repairs, outdoor lighting, industrial equipment, and any situation where moisture protection is a must.
Easy Installation and Secure Fit
No special tools required! Simply use a soldering iron and wire cutters to connect your wires—no extra chemicals or waterproofing materials needed. The connector uses internal compression gaskets and o-rings, along with a positive locking threaded ring, to form a watertight and vibration-resistant seal. Connect with confidence, knowing your connections will stay dry and strong, even in tough environments.
Key Features & Benefits
- Field installable and simple to assemble
- Ideal for 18-24 AWG wire sizes
- Supports power transmission up to 10 Amps and 300 Volts
- IP68 rated for full waterproof performance
- Durable construction with a 500 mating cycle mechanical life
- Suits cable diameters 3.5mm–6.8mm
- Functions in extreme temperatures: -45°C to 105°C
- Perfect for panel or chassis mounting; just a 16mm cutout required
Technical Specifications
| Number of Pins: | 2 |
| Rated Current (at 40°C): | 10 Amps |
| Voltage Rating: | 300 Volts |
| Wire Gauge Supported: | 18-24 AWG |
| Cable Size Range: | 3.5mm - 6.8mm Diameter |
| Environmental Protection: | IP68 |
| Mechanical Life: | 500 Mating Cycles |
| Operating Temperature: | -45°C to 105°C |
| Max Panel Thickness: | 5mm |
| Panel Cutout: | 16mm |
| Dimensions: | 16.0mm Diameter x 18.0mm Long |
| Product ID: | VUPN8229 |
What's Included
- 1 x 2-Pin Female Chassis Mount Waterproof Connector
Upgrade your next project with this dependable and easy-to-use 2-pin panel mount connector—built for all your waterproof, outdoor, or heavy-duty wiring needs.
