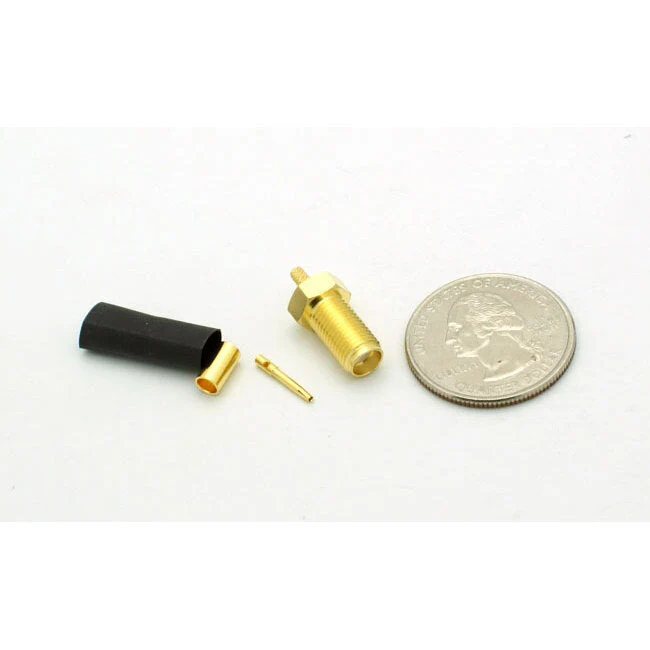

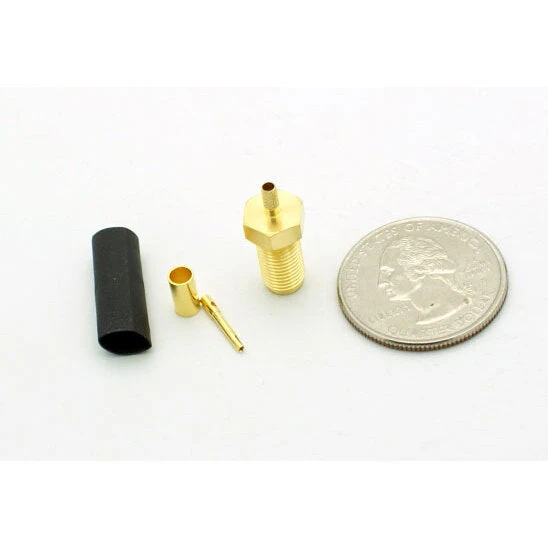

SMA Female 3 Piece Crimp Connector for RG-316 Coax Cable
Easy-to-Use SMA Female Crimp Connector for RG-316
Looking for a reliable way to connect your RG-316 coaxial cable? This SMA female crimp connector makes installation simple and secure. Designed for everyday users, it’s perfect for home electronics projects, antennas, Wi-Fi, and DIY repairs.
High-Quality 3-Piece SMA Female Connector Design
This SMA female 3-piece crimp connector for RG-316 features a sturdy gold-plated construction for strong signal quality and corrosion resistance. The 3-piece design means the center pin is soldered to the center conductor, and the main body is crimped to the cable using the included ferrule—offering firm, long-lasting connections every time.
Fits RG-316 Coaxial Cable
Specially sized for RG-316 coax, this SMA female connector ensures a tight and dependable fit. It’s great for RF, Wi-Fi, and custom cable assemblies where secure, professional results matter.
Panel Mountable with Included Hardware
Versatile installation options let you use this connector as an inline crimp or a panel mount. A nut and lock-washer are included, making mounting to panels or project boxes quick and easy.
Product Features and Specs
- Manufacturer: Pan Pacific Enterprises
- Manufacturer Part Number: SMA-2717
- Connector Style: SMA female, crimp type, 3-piece design
- Cable Compatibility: RG-316 coaxial cable
- Contact Material: Gold-plated brass or copper
- Dimensions: 0.79" Long x 0.16" Diameter
- Includes: Ferrule, nut, and lock-washer
- QTY: 1 connector per package
How to Install Your SMA Female Crimp Connector
- Strip your RG-316 coaxial cable to expose the center conductor and shielding.
- Solder the connector’s center pin to the exposed center conductor of the cable.
- Slide the ferrule onto the cable, then insert the cable into the connector body.
- Crimp the ferrule to secure the connector to the cable.
- (Optional) Use the nut and lock-washer if you’re mounting the connector to a panel.
This SMA female crimp connector for RG-316 coax is ideal for anyone needing a straightforward, high-quality RF connection solution at home or in the workshop.
