2-Pin Mic Connector Male/Female Pair – Heavy Duty GX25

Easy-to-Use, Heavy-Duty 2-Pin Mic Connector

Looking for a reliable and extra-large 2-pin mic connector for high current and voltage applications? This heavy-duty GX25 connector pair is built for demanding jobs. Perfect for anyone who needs dependable, high-amperage connections at home, in the garage, or on the job site.

Key Features of the GX25 2-Pin Male/Female Mic Connector

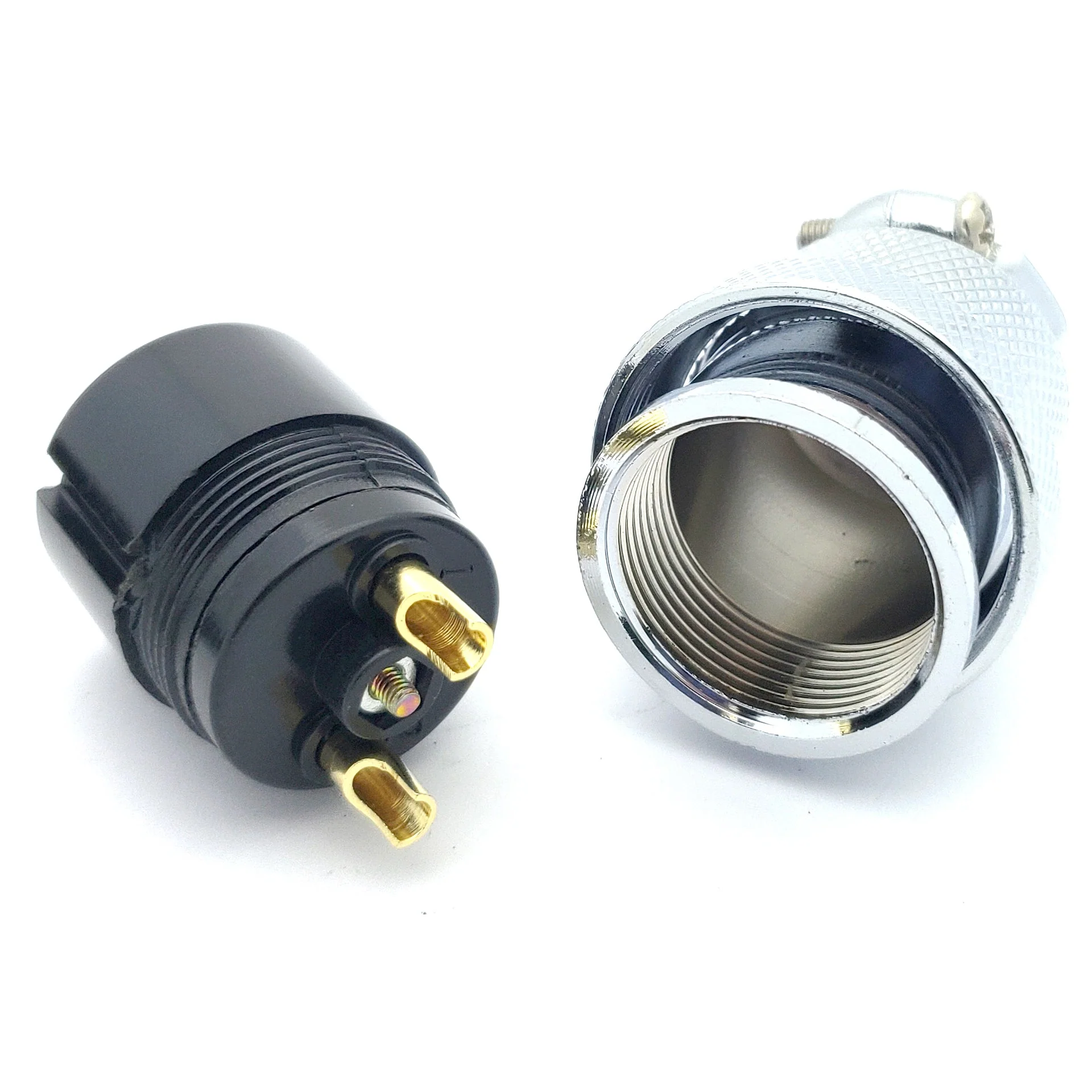

• Sturdy male/female pair with solid metal pins for a secure, long-lasting connection
• Handles up to 20A and 300V AC or DC — ideal for power, audio, and hobby projects
• Extra-large size for robust installs and easy handling
• Polarity keying prevents incorrect or reverse polarity insertion
• Simple solder cup style wiring for secure and fast installation
• Comes complete with mounting hardware (screws, washers, and nuts) and a protective rubber cap

Heavy-Duty Construction for High-Power Projects

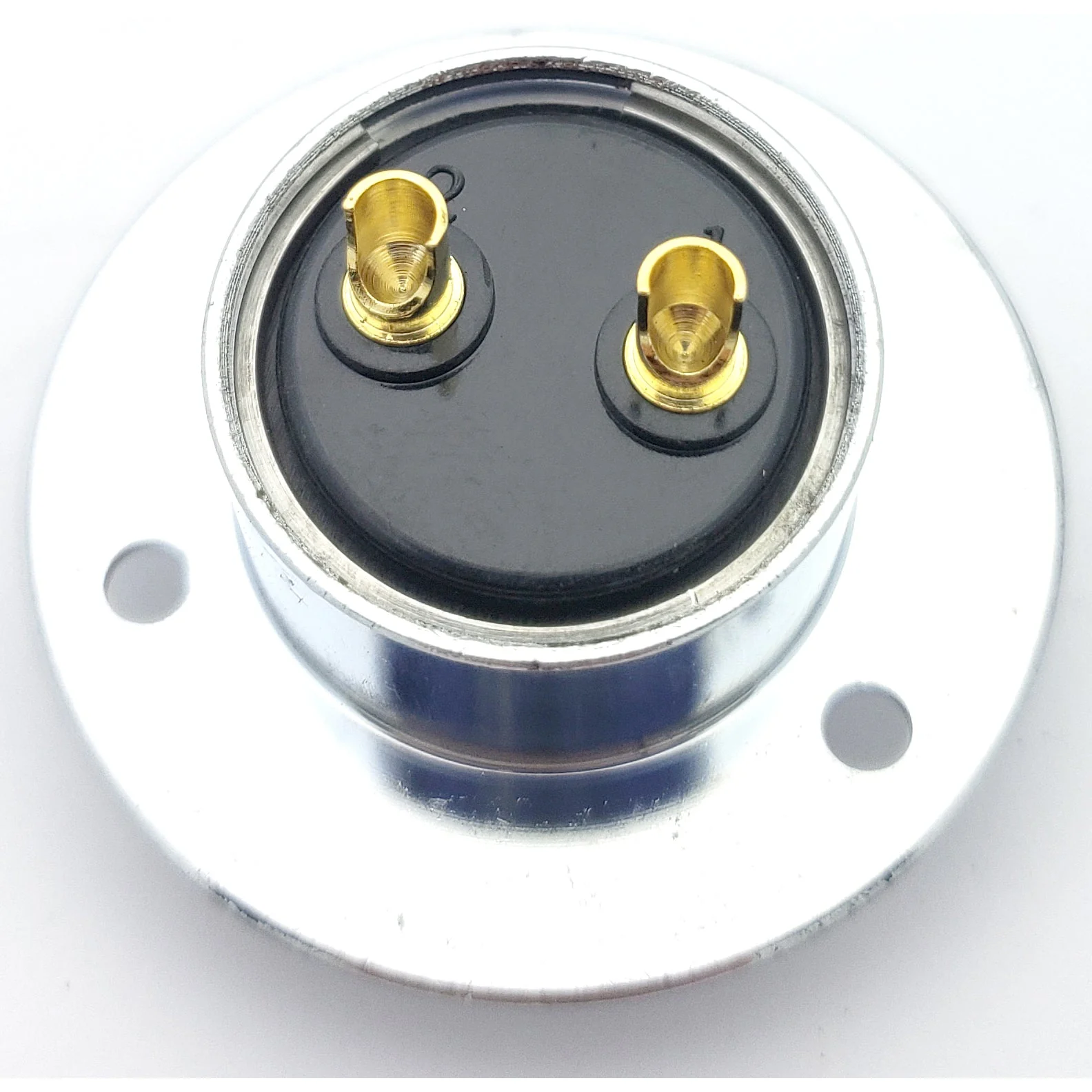

This GX25 2-pin mic connector set is designed for strength. The male chassis mount features solid metal pins (not split or hollow) for maximum conductivity and durability. The pair can safely connect up to 20A of current and is rated up to 300V, making it the perfect choice for 120/250V AC wiring, high-power DC circuits, and more.

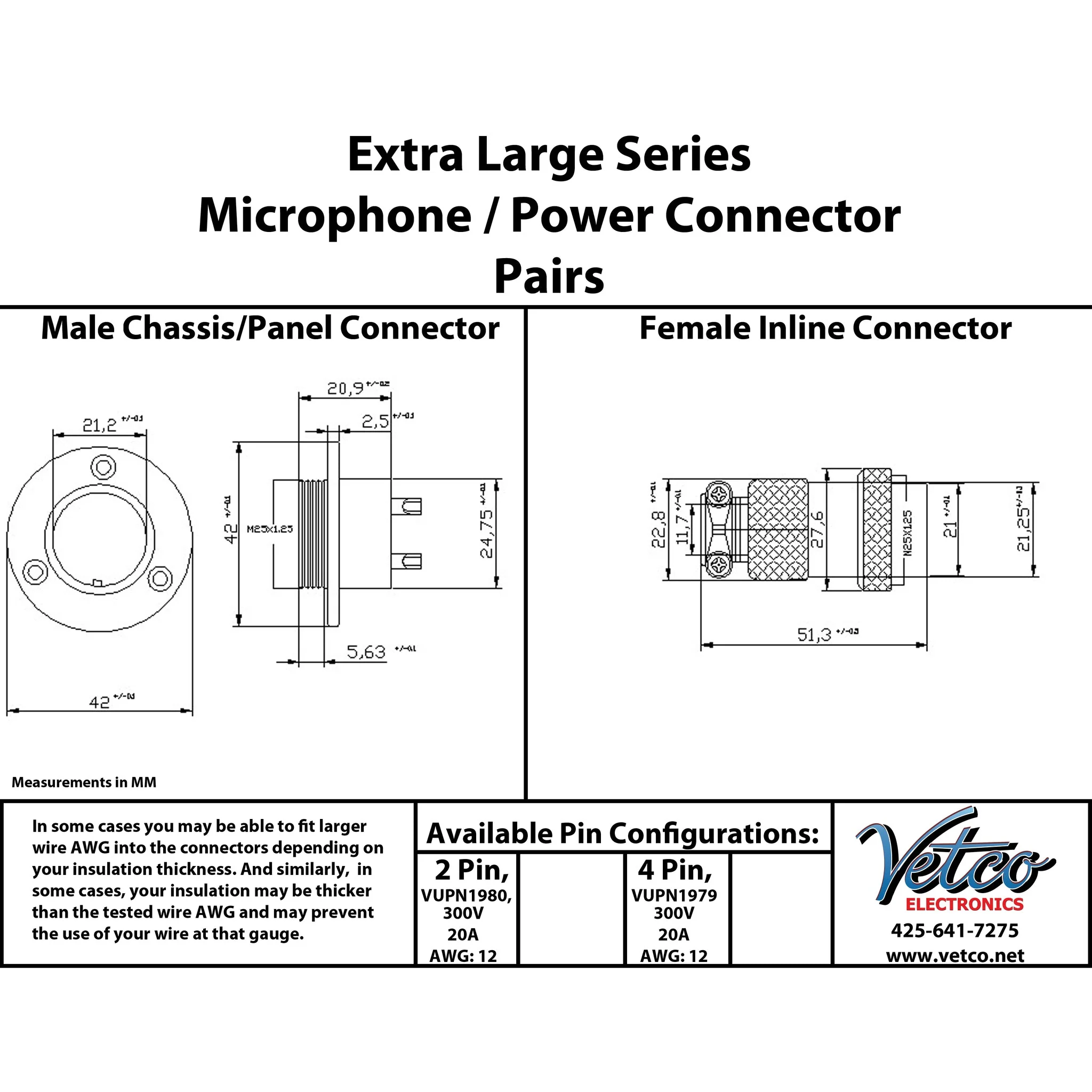

Technical Specifications

• Contact Voltage Rating: 300V AC or DC
• Contact Amperage Rating: 20A
• Wire Size Supported: Up to 12 AWG (certain 10 AWG types may also fit)
• Solder Cup Diameter: 0.110” (2.80mm)
• Chassis Mounting Hole Diameter: 0.978” (24.84mm, recessed portion)
• Chassis Mount Flange Diameter: 1.649” (41.90mm)
• Flange Mounting Hole Centers Distance: 1.089” (27.89mm)
• Flange Mounting Hole Diameter: 0.136” (3.47mm)
• Chassis Recessed Depth: 0.719” (18.27mm)
• Chassis Overall Depth: 1.059” (26.91mm)
• Contact Spacing (center to center): 0.407” (10.35mm)
• Electrical Pin Diameter: 0.136” (3.45mm)
• Female Connector Diameter: 0.821” (20.56mm, black plastic)
• Female Overall Length: 2.006” (50.97mm)
• Female Max Diameter (thread ring): 1.095” (27.82mm)
• Insertable Cable Diameter: 0.442” (11.25mm) max, 0.347” (8.81mm) min
• Included Screw Max Length: 0.473” (12.02mm)
• Included Screw Useful Length: 0.332” (8.45mm)
• Polarity Keying: Yes, all keyed alike
• Internal Contact Type: Solder Cup

What's In the Box?

• 1x Female Inline Connector
• 1x Male Chassis Mount Connector

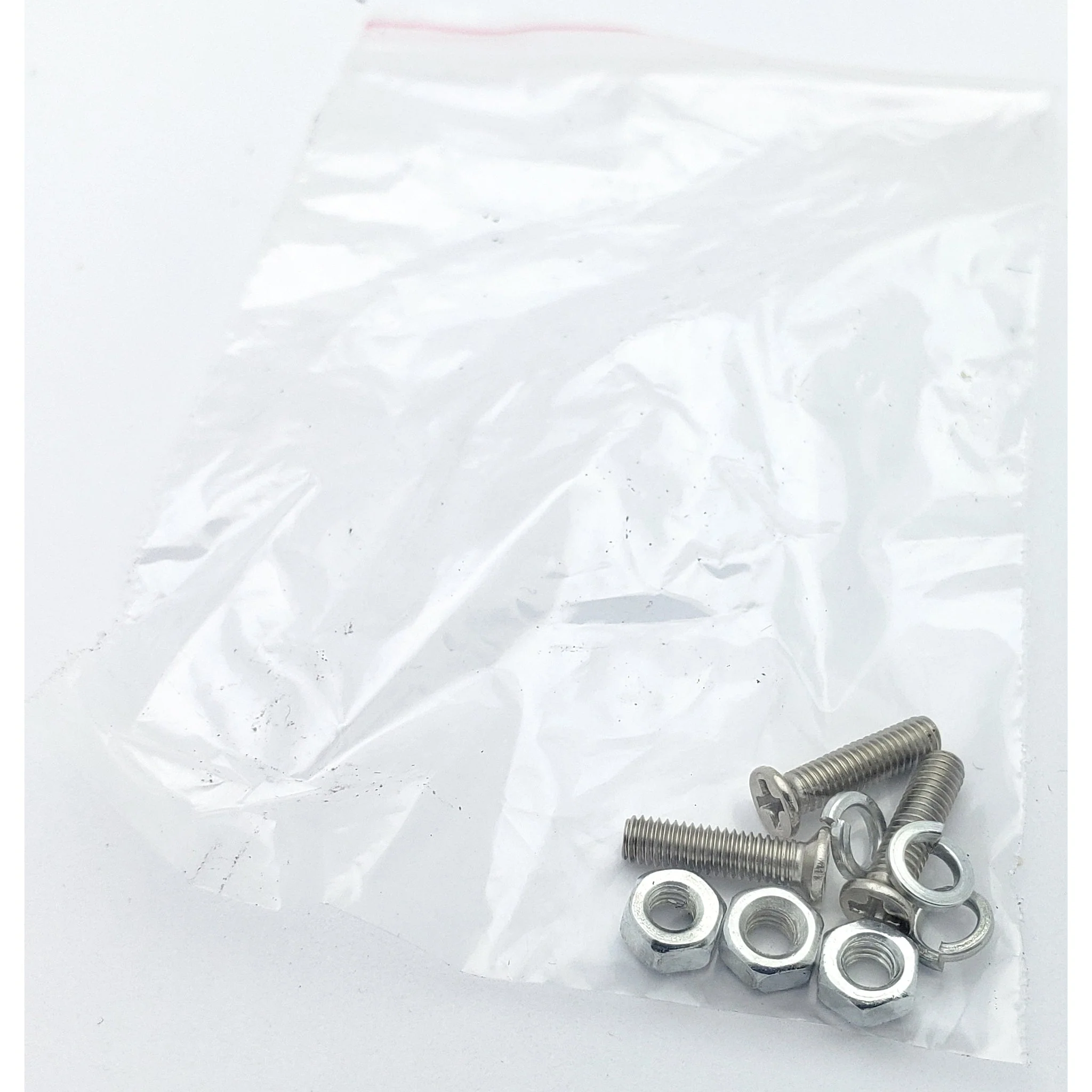

• 3x Screws, 3x Washers, 3x Nuts for mounting
• 1x Protective Rubber Cap (for male chassis connector)

Why Choose the GX25 Heavy Duty Mic Connector?

This male/female mic connector set offers an unbeatable combination of durability, convenience, and high-capacity performance for everyday tech users. From DIY power projects and automotive work to robust audio setups, the GX25 heavy duty 2-pin mic connector gets the job done safely and reliably.

Please note: Not rated for connections on live circuits. Always use the male chassis for power input only to avoid exposure to live pins.
