4 Pin Mic Connector Male/Female Pair – GX20, 7A 250V

Reliable 4 Pin Mic Connector for Audio and Power Applications

Looking for an easy-to-use, heavy-duty connector for your next project? Our GX20 4 pin mic connector male and female pair is a great choice for audio equipment or low to mid-range power connections. Designed for simple installation and durability, these connectors are suitable for everyday DIYers and hobbyists alike.

GX20 Connector Features and Benefits

• Strong Metal Construction: The sturdy metal housing stands up to frequent use, vibration, and tough environments.
• Secure Connection: The connectors use keyed polarity, helping to prevent incorrect or reversed connections and making assembly straightforward.
• Versatile Use: Ideal as a microphone connector, audio equipment connector, or for delivering up to 7 amps at 120V or 250V AC in lighting, robotics, machinery, or hobby projects.
• Complete Pair: Includes 1 female inline connector and 1 male chassis mount connector (with nut and split washer) for a ready-to-use solution.

Easy Installation & Solder-Type Contacts

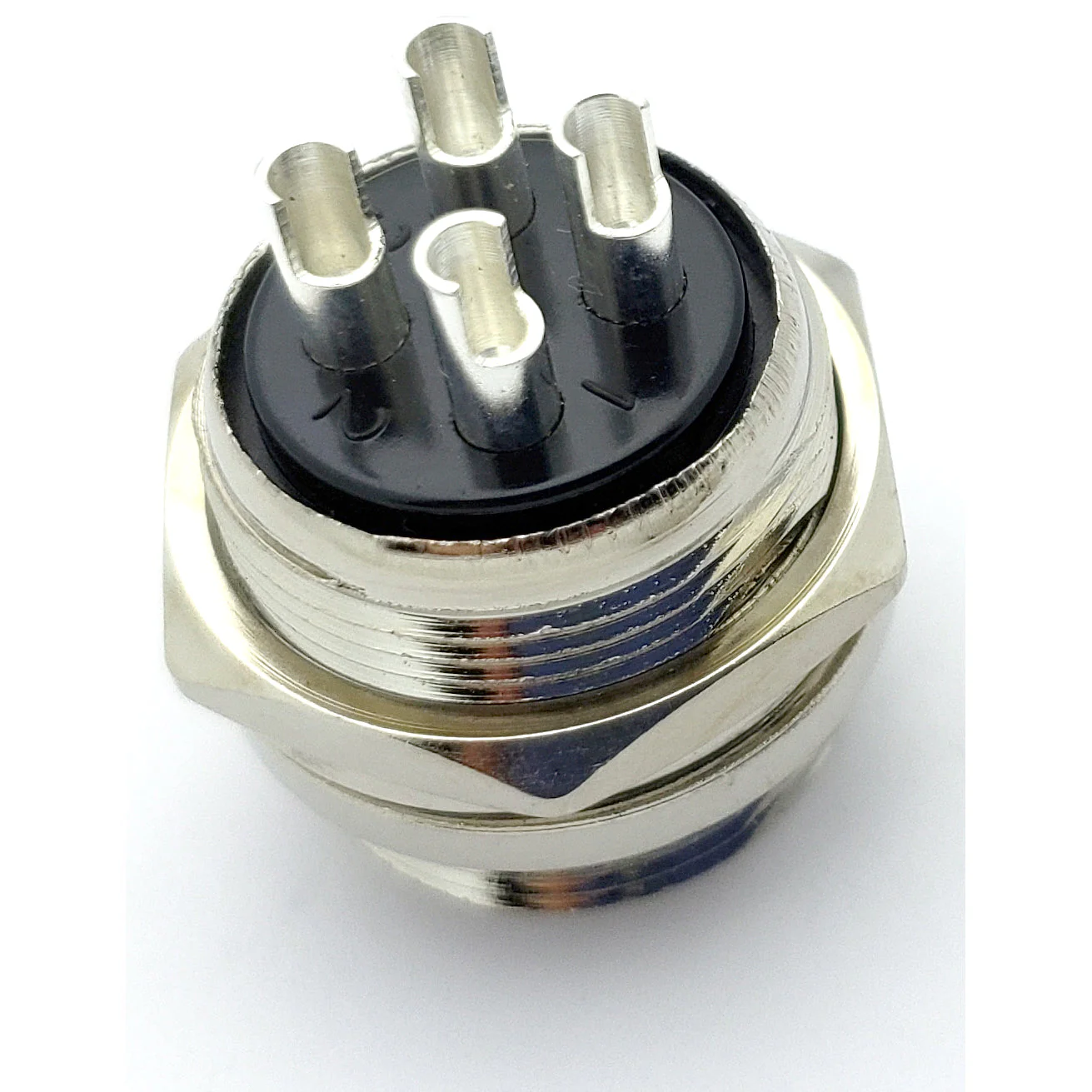

Wiring these 4 pin mic connectors is simple. The chassis mount (male) uses solid split metal solder cups that accept wire sizes up to AWG 14, providing a secure and reliable electrical connection. The female inline connector features a tab-style contact for straightforward assembly.

Cable clamping is designed for a wide range of cable sizes—SOOW cord fits easily and you can adapt smaller wires using heat shrink or electrical tape.

Technical Specifications

• Type: 4 pin mic connector, GX20 size – male and female pair
• Current Rating: 7A
• Voltage Rating: 250V AC or DC
• Contact Type: Solder cup (male), tab (female)
• Wire Size: Up to AWG 14 (may accept larger, depending on insulation)
• Polarity Keying: Yes – all keyed alike
• Mounting Hardware: Nut and split washer included for chassis installation
• Connector Housing: Metal

Note: Do not use the male chassis connector for power output as this could expose live pins. Always follow standard safety guidelines for power connections.

What's Included

• 1 x Female Inline GX20 Connector

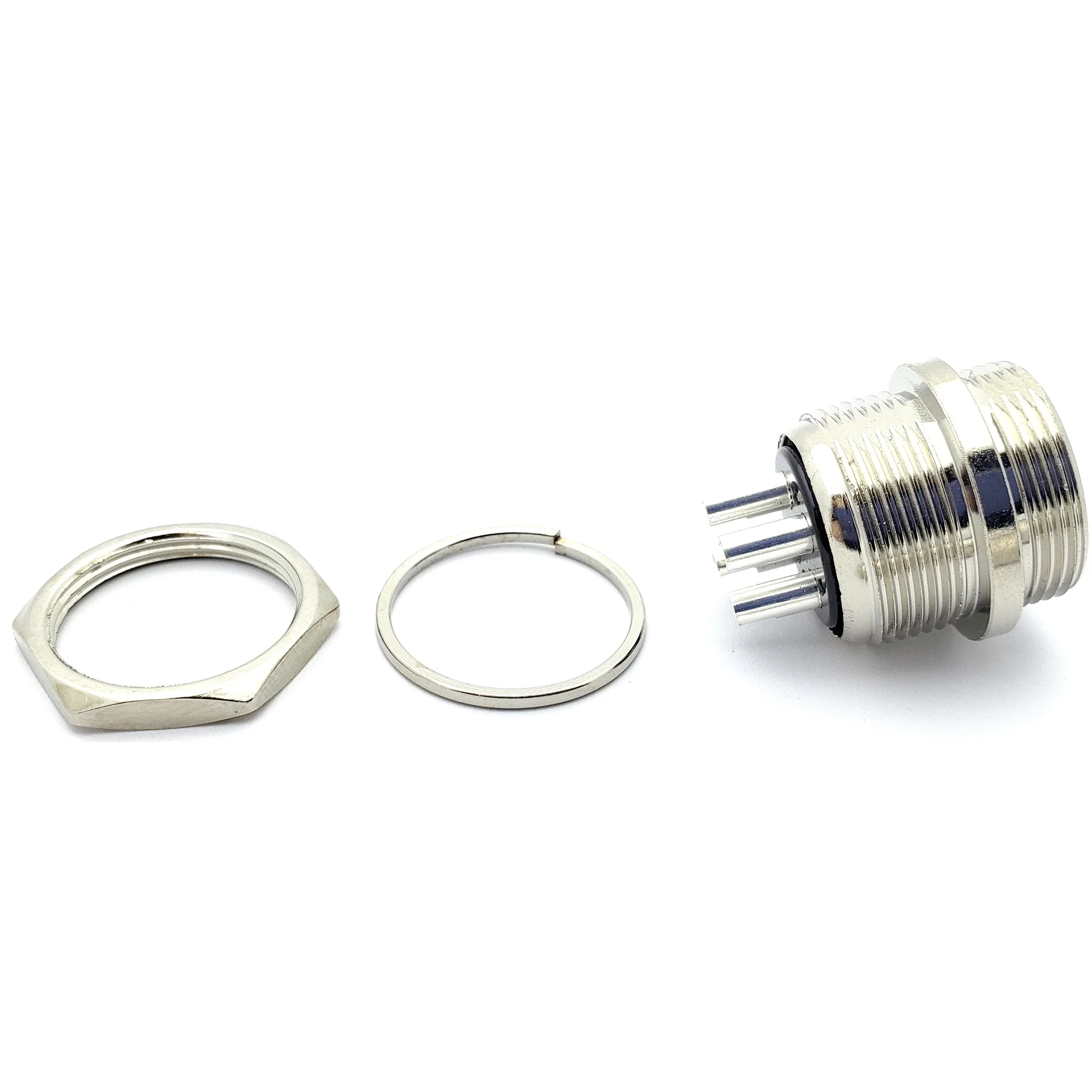

• 1 x Male Chassis Mount GX20 Connector (with nut and split washer)

Looking for a reliable and easy-to-install 4 pin mic connector for your audio or power needs? This GX20 male/female pair is a dependable, user-friendly choice for a variety of applications.
