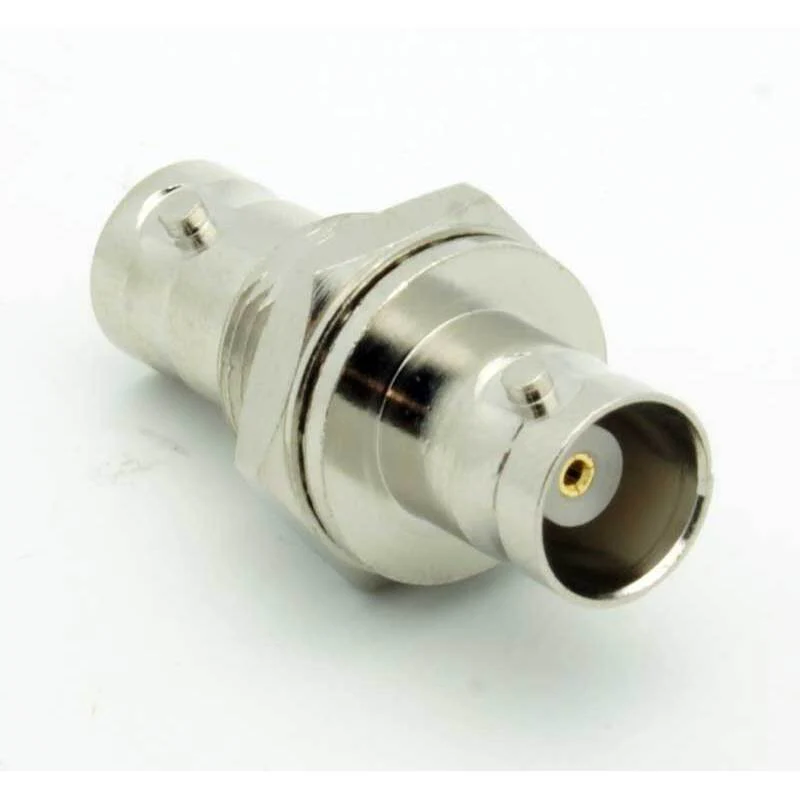

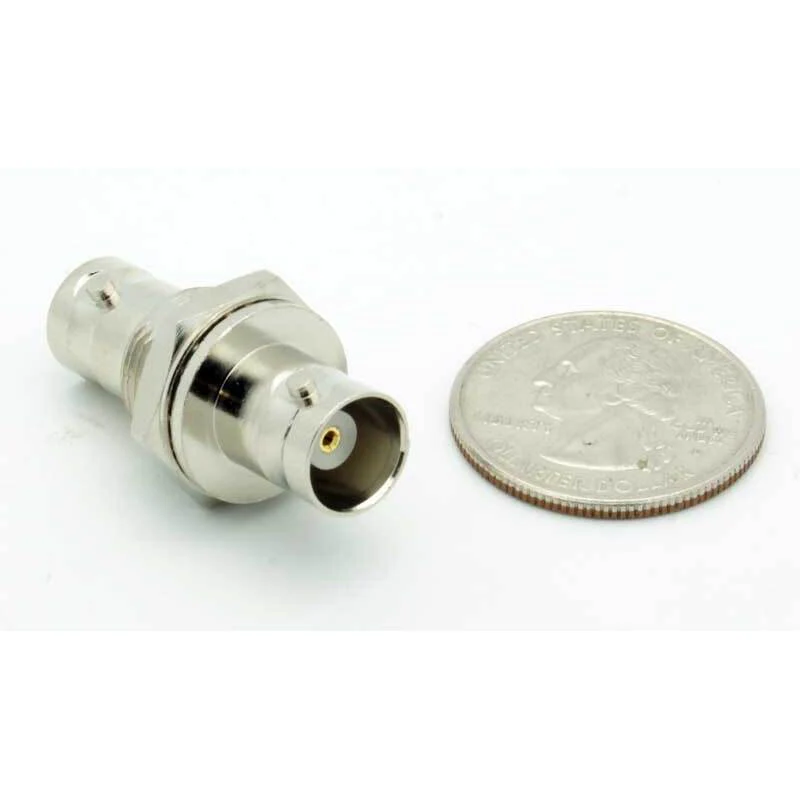

BNC Female Bulkhead Connector

Easy-to-Use BNC Bulkhead Connector for Your Projects

The BNC female bulkhead connector is a reliable, easy-to-mount solution for connecting RF cables or integrating BNC terminations into panels and chassis. This BNC bulkhead connector features a sturdy, nickel-plated body and gold-plated brass or copper conductors for dependable signal performance.

Key Features and Benefits

• Panel Mount Convenience: Designed as a true BNC panel mount connector, it fits securely in a 31/64" (12.3mm) hole using the included mounting nut and washer.
• BNC Female to Female Coupling: Functions seamlessly as a BNC coupler or BNC adapter, providing a female jack on both ends for easy cable joining or extending.
• Durable Construction: Nickel-plated metal body resists corrosion, and gold-plated contacts offer solid electrical performance and minimal signal loss.
• Versatile Uses: Perfect for DIY radio projects, test equipment, custom audio/video panels, or any setup where a BNC female connector is required on a panel, chassis, or enclosure.

Technical Specifications

• Connector Type: BNC female bulkhead (female-female jack, panel/chassis mount)
• Mounting Hole Diameter: 31/64" (12.3mm)
• Overall Length: 1.29" (32.8mm)
• Maximum Body Diameter: 0.48" (12.2mm)
• Body Material: Nickel-plated metal
• Contact Material: Gold-plated brass or copper

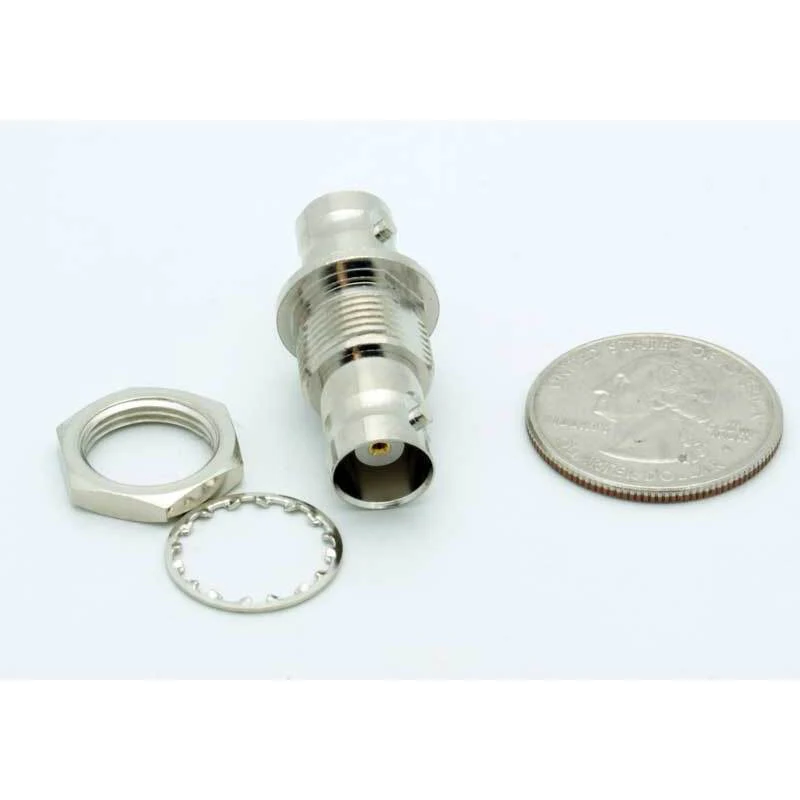

• Includes: Mounting nut and washer
• Quantity: 1 connector per package

Simple Installation

To use this BNC female bulkhead connector, drill or punch a 31/64" hole in your panel, insert the connector, and secure it with the included nut and washer. Attach your BNC cables to either end for a secure, professional-grade connection.
