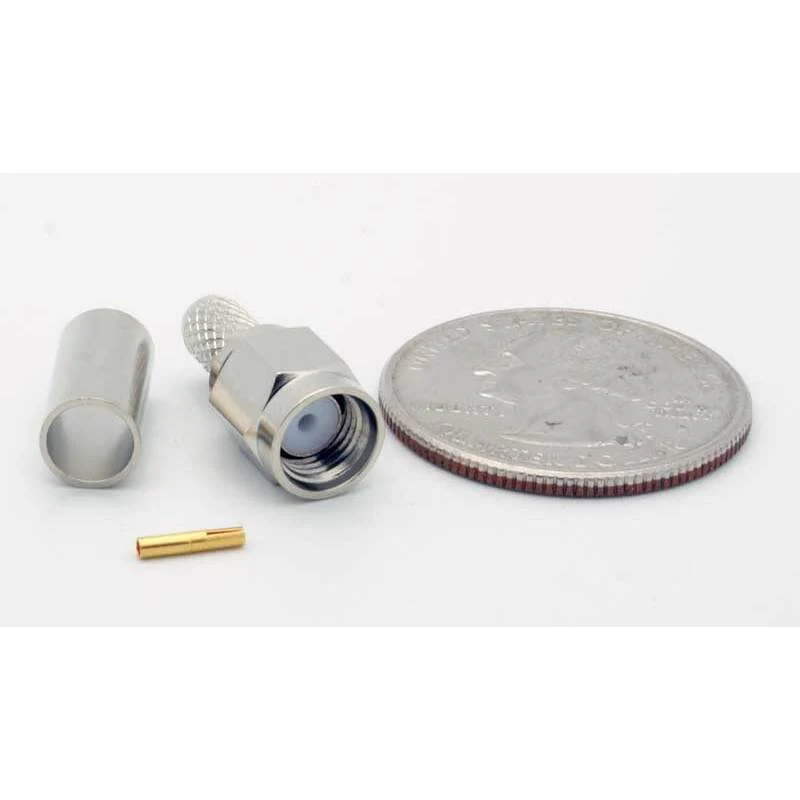

Reverse SMA Male 3-Piece Crimp Connector for RG-58 Coax
Easy Installation Reverse Polarity SMA Male Crimp Connector
This Reverse SMA Male 3-Piece Crimp Connector is designed for quick, reliable connections to RG-58 coaxial cable. Perfect for DIY projects, repairs, or upgrading your RF connections at home, this connector combines easy installation with professional-grade performance. The 3-piece design features a solder-on center pin and a crimp-on body using the included ferrule for secure attachment.
Key Features & Benefits
- Reverse Polarity SMA Male Connector: Features a male body with a female socket, ideal for applications that require RP-SMA compatibility.
- 3-Piece Design: Includes separate center pin, body, and ferrule for precise cable termination.
- Durable Construction: Nickel-plated shell with knurled grips for easy handling and corrosion resistance.
- High-Quality Contacts: Gold-plated brass or copper conductors for superior signal transmission.
- Fits RG-58 Coax: Compatible with standard RG-58 coaxial cable for maximum versatility.
- User-Friendly: Straightforward crimp and solder installation—no special skills required!
Technical Data
- Connector Type: Reverse SMA Male (RP-SMA Male)
- Cable Compatibility: RG-58 Coaxial Cable
- Body Plating: Nickel
- Contact Material: Gold-plated brass or copper
- Overall Length: 0.91" (23mm)
- Overall Diameter: 0.32" (8mm)
- Design: 3-piece (solder pin, crimp body, ferrule)
- Recommended Tools: Crimp Die for RG6/58/59/174 & LMR100/240, 8" Ratcheting Cavity Crimp Tool Handle, Coax Stripper for RG-58
- Included: 1 connector (center pin, body, ferrule)
Installation Instructions
- Strip the RG-58 coaxial cable to expose the center conductor using a coax stripper.
- Solder the center pin to the exposed center conductor.
- Slide the connector body and ferrule over the cable.
- Crimp the ferrule onto the cable using the recommended crimp die and tool.
- Check for secure fit and proper signal continuity.
Applications
- WiFi antennas
- RF projects
- Home networking
- Ham radio setups
- DIY coaxial cable repairs
Upgrade your connections easily with this high-quality Reverse SMA Male 3-Piece Crimp Connector—your go-to solution for RP-SMA cables and RG-58 coax projects.
