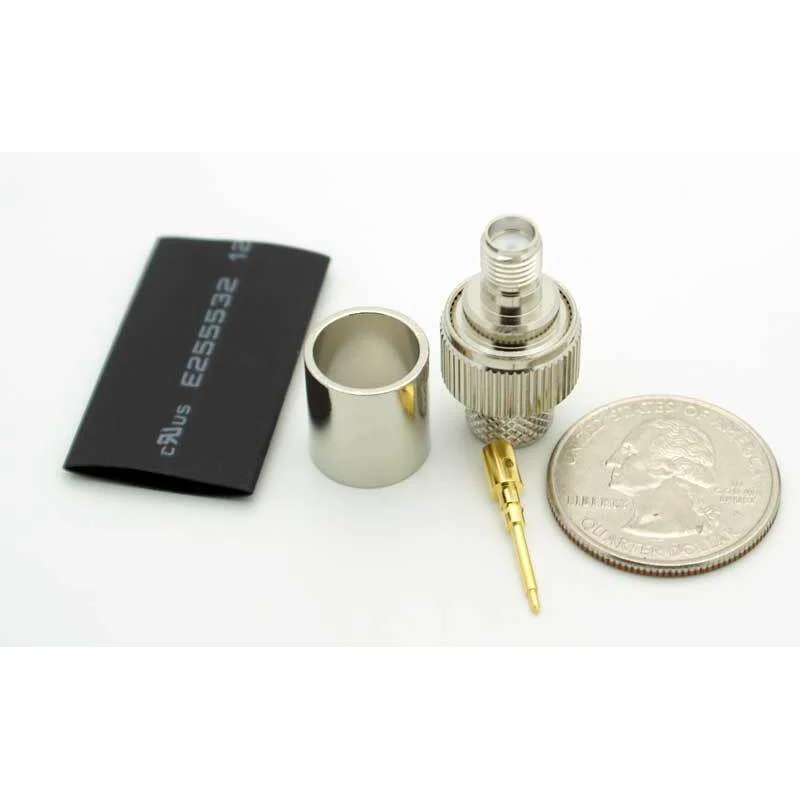

Reverse SMA Female 3-Piece Crimp Connector for LMR-400 Coax
Easy and Reliable Connection for LMR-400 Coaxial Cable
This Reverse SMA Female 3-Piece Crimp Connector is designed for LMR-400 coax cable, making it the perfect choice for RF installations at home or in the field. The connector features an inline/line mount design for flexibility and convenience.
Reverse Polarity SMA Female Connector Features
- 3-piece crimp design: Center pin is soldered to the center conductor, while the connector body is crimped onto the coax using the included ferrule—ensuring a secure and long-lasting connection.
- Reverse polarity configuration: Standard SMA body with a male pin (unlike traditional SMA female connectors), compatible with reverse polarity systems.
- Panel mount capability: Can be panel mounted using the included nut and lock-washer for versatile installation options.
- Quality construction: Nickel-plated connector body with knurled grips for easy handling; gold-plated brass or copper conductors for reliable signal transfer.
Technical Specifications
- Connector Type: Reverse SMA Female, 3-piece crimp
- Cable Compatibility: LMR-400 coaxial cable
- Installation: Solder center pin, crimp connector body with included ferrule
- Materials: Nickel-plated body, gold-plated brass/copper conductors
- Overall Dimensions: 1.40" Long x 0.57" Diameter
- Mounting: Panel mountable; includes nut and lock-washer
- Quantity: 1 connector per package
- Product ID: TES_432923
How to Use
- Strip the LMR-400 coax cable to expose the center conductor and shield.
- Solder the center pin onto the center conductor of your LMR-400 cable.
- Slide the ferrule over the coaxial cable’s shield.
- Insert the cable assembly into the connector body and crimp securely using the included ferrule.
- If desired, use the nut and lock-washer to panel mount the connector.
Whether you need to create custom coax cable assemblies or repair your existing RF systems, this Reverse SMA Female 3-Piece Crimp Connector for LMR-400 makes setup fast and easy. Ideal for WiFi, antenna, and RF signal projects that require a secure and high-quality connection.
