Reverse TNC Female Crimp Connector for LMR-240 Coax

Easy-to-Use Reverse TNC Female Connector

This Reverse TNC Female 3 Piece Crimp Connector is designed for secure and reliable connections with LMR-240 coax cable. If you’re looking for an inline reverse polarity TNC female connector that’s simple to install and built for lasting performance, this is the connector for you.

3-Piece Crimp Design

The 3-piece crimp construction ensures a solid connection. Solder the included center pin onto the center conductor of your LMR-240 coax. Next, crimp the connector using the supplied ferrule—the result is a firm, low-loss connection perfect for RF applications.

Reverse Polarity for Secure Connections

This reverse polarity TNC female connector features a standard TNC body but uses a male pin, matching up with equipment that requires reverse polarity TNC connections. It’s a popular choice for Wi-Fi gear, RF systems, and custom coaxial cable assembly.

Durable and High-Quality Construction

• Nickel-plated, corrosion-resistant body with knurled grips for easy handling
• Gold-plated brass or copper conductors for excellent signal conductivity

Product Specifications

• Connector Type: Reverse TNC Female Crimp
• Cable Compatibility: LMR-240 Coax

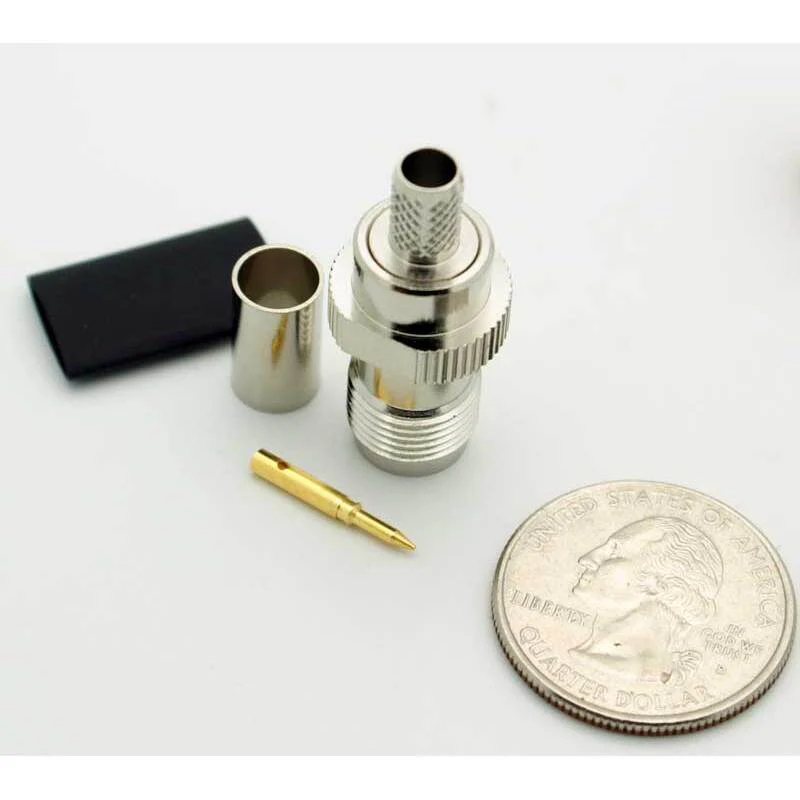

• Design: 3 Piece (center pin, body, ferrule)
• Assembly: Crimp and solder
• Overall Dimensions: 1.43" Long x 0.57" Diameter
• Quantity: 1 connector per package

How to Use

1. Strip your LMR-240 coaxial cable according to standard measurements.
2. Solder the center pin onto the exposed center conductor.
3. Slide the ferrule over the cable, then insert the cable into the connector body.
4. Crimp the ferrule securely to hold the connection together.

For all your RF connector needs—including more reverse polarity TNC connectors and accessories—Vetco Electronics offers a wide variety for easy DIY and home RF projects. If you need help picking the right LMR-240 coax connector, our technical experts are here to help.
