Reverse TNC Female 3 Piece Crimp Connector for LMR-400 Coax

Easy Installation – Reverse TNC Female Crimp Connector for LMR-400

This reverse TNC female 3 piece crimp connector is designed specifically for LMR-400 coax cable. It features a reverse polarity TNC female interface, making it a reliable choice for common wireless and RF applications where reverse polarity connections are required.

3 Piece Design for Secure Connection

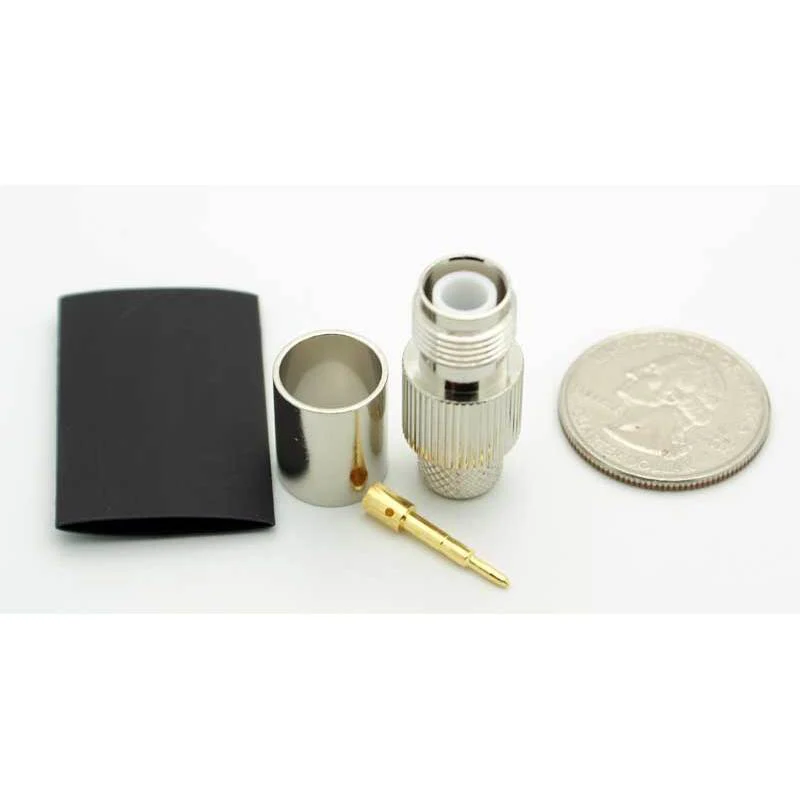

The connector includes a three-piece assembly: a center pin, body, and ferrule. The center pin is soldered onto the coaxial cable's center conductor, while the ferrule is crimped onto the LMR-400 cable's shield for a strong and stable connection. This design helps ensure consistent signal quality and durability.

Quality Construction & Materials

• Body: Nickel-plated, corrosion-resistant with easy-to-handle knurled grips
• Conductors: Gold-plated brass or copper for excellent conductivity
• Reverse Polarity Design: Standard body with a male pin inside

Technical Specifications

• Fits cable: LMR-400 Coax
• Connector Type: Reverse TNC Female, Crimp style
• Installation: Solder center pin, crimp outer ferrule
• Polarity: Reverse polarity (TNC female with male pin)
• Overall Length: 1.44 inches (36.6mm)
• Diameter: 0.51 inches (13mm)
• Quality finish for reliable performance

Simple Steps for Reliable Results

1. Strip the LMR-400 coaxial cable.
2. Solder the gold-plated center pin onto the cable’s center conductor.
3. Slide the connector over the prepared coax and position the ferrule.
4. Crimp the ferrule to secure the connection.

This reverse TNC female crimp connector is ideal for home networking, antenna installations, and custom RF projects using LMR-400 coax. Package includes 1 connector.
