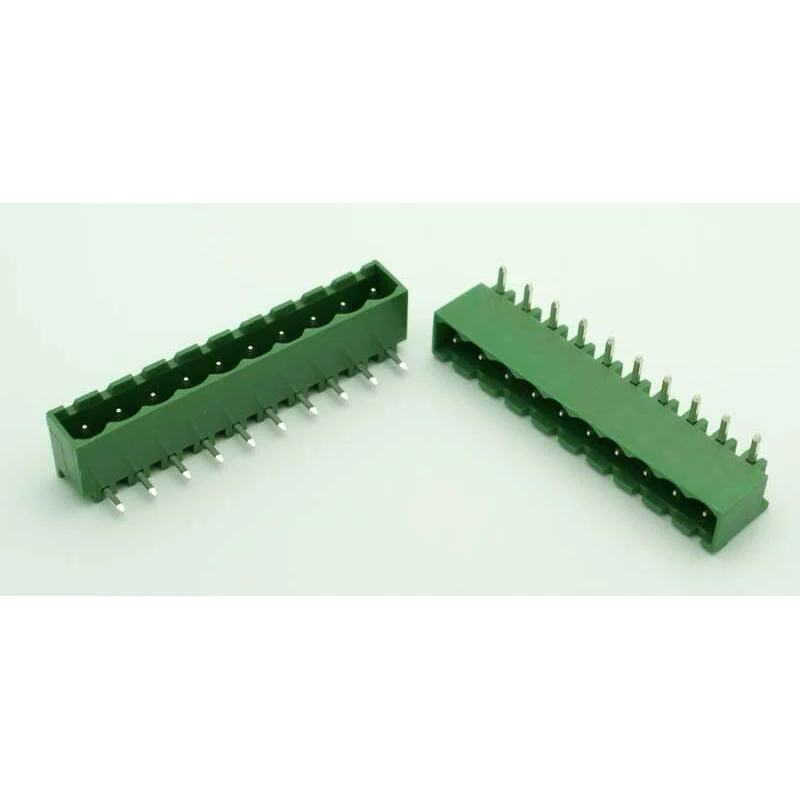

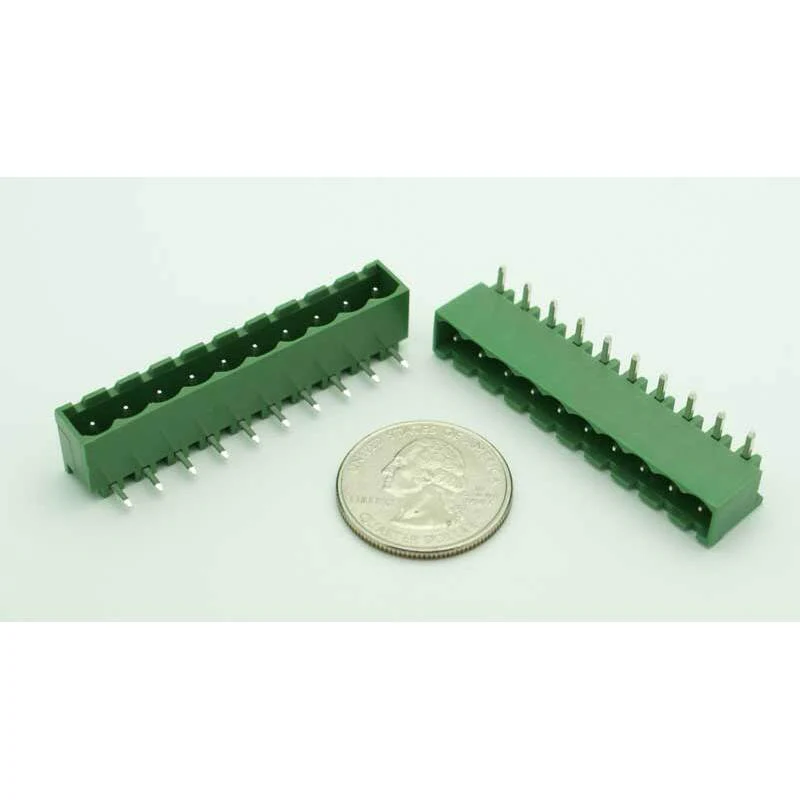

10 Position Phoenix Connector Jack – PCB Mount Terminal Block

Reliable 10 Position PCB Mount Connector for Easy Wiring

Looking for a quick and convenient way to connect multiple wires to your PCB? This 10 position PCB mount connector is a versatile and user-friendly solution designed for everyday electronic projects. Known as a Phoenix connector jack, it allows you to plug and unplug wires as a group, making repairs and upgrades effortless.

Plug-and-Play Convenience

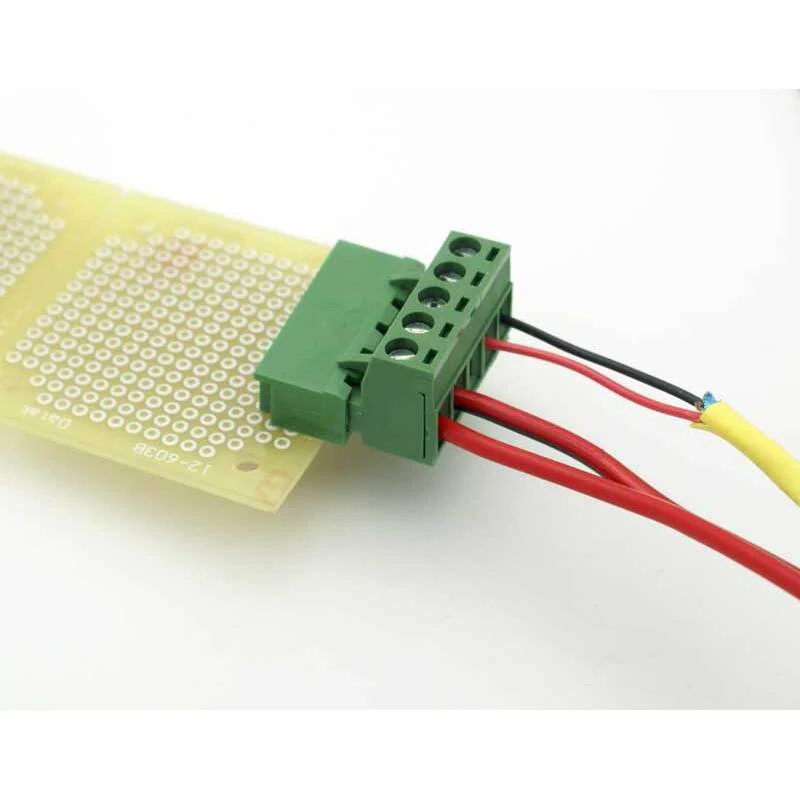

This pluggable terminal strip socket mates perfectly with standard Phoenix connector terminal plugs. No special tools are needed—just plug the wire block in or out for fast connections and maintenance. It's ideal for everything from DIY projects to home automation setups.

Technical Features and Ratings

• Current/Voltage Rating: 15A @ 300V (UL Listed & CSA Certified)
• Positions: 10 circuit contacts
• Contact Material: Tin-plated brass for reliable conductivity and durability
• Housing Material: Type 6/6 Polymide 94VO (high-temperature, flame-resistant plastic)
• Operating Temperature: -40°C to 105°C (or -40°F to 221°F)
• Recommended PCB Hole Size: 0.055" (1.4mm) (use #55 drill bit for mounting)
• Center Spacing: 0.2" (5.08mm) fits perfectly on 0.1" spaced prototype boards
• Angle: 90° horizontal PCB mount keeps wiring parallel to your board

Euro Terminal Block – Versatile and Safe

Also known as a Euro-Mag terminal block or Euro terminal block, this connector is engineered for secure group wiring in a compact footprint. It's frequently used in control panels, LED lighting, audio gear, and industrial automation.

Why Choose Our 10 Position Phoenix Connector Jack?

The Philmore 13-2810 offers hassle-free installation and long-lasting performance. With solder pins for PCB mounting and robust tin-plated brass contacts, you get excellent connection quality and peace of mind for your electronics projects.

Enjoy a straightforward, plug-and-play experience with this UL listed, CSA certified PCB mount terminal block.
