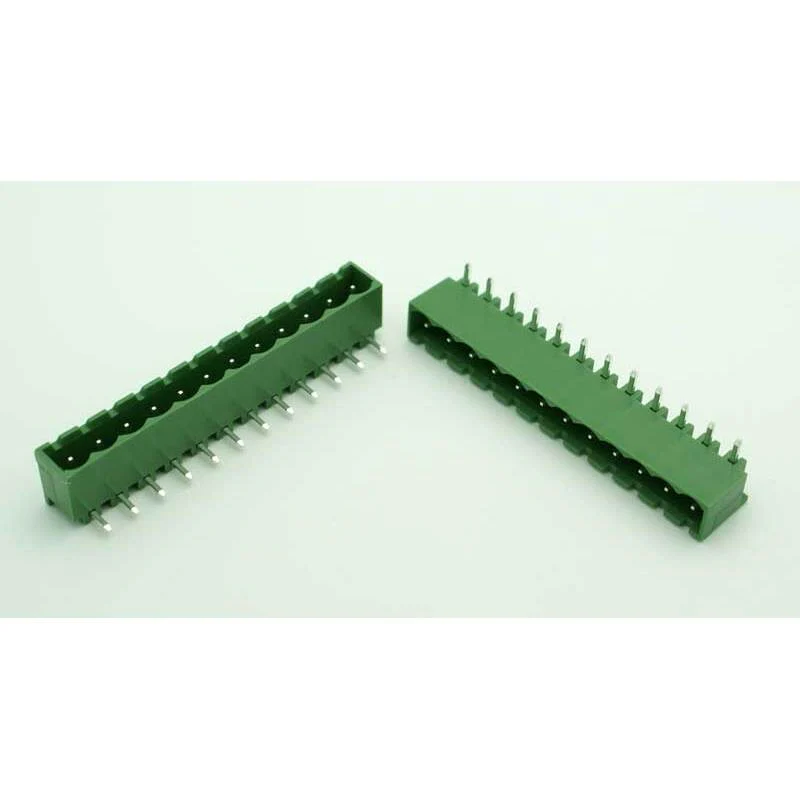

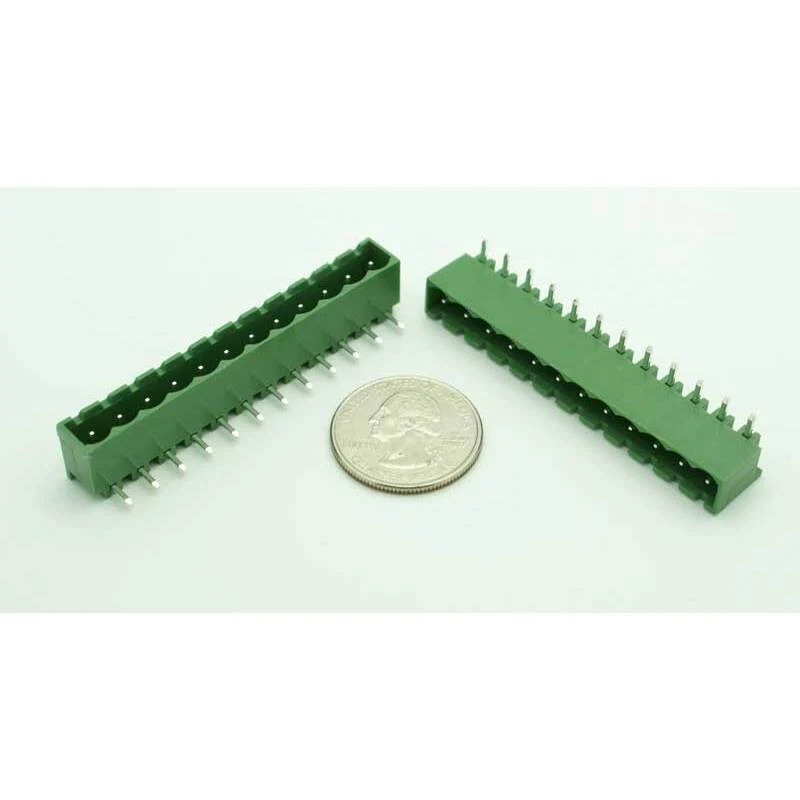

12 Position Phoenix Connector Jack – PCB Mount

Easy Wire Connections with a 12 Position Phoenix Connector Jack

Simplify your electronic projects with this 12 position Phoenix connector jack. Designed for PCB mount applications, this pluggable terminal block makes connecting and disconnecting multiple wires quick and hassle-free – no tools required.

Pluggable Terminal Block for PCB Mounting

This horizontal PCB mount connector features solder pins spaced at 0.2" (5.08mm) apart, making it ideal for use on standard 0.1" spaced prototype boards. The angled 90° design allows the connector to sit parallel to the circuit board for easy integration in compact setups. Commonly referred to as a Euro-Mag terminal block or Euro terminal block, it provides reliable and organized wiring for all your electronics projects.

Quality Construction and Trusted Materials

• Contact Material: Tin-plated brass for excellent conductivity
• Housing Material: Type 6/6 Polyamide (UL 94V-0 rated) for strength and safety
• Recommended PCB Hole Size: 0.055" (1.4mm) – fits a #55 drill bit

Safe and Reliable Performance

• Rated for: 15A at 300V
• UL Listed and CSA Certified for trusted quality
• Operating Temperature: -40°C to 105°C (-40°F to 221°F)

Perfect for Prototyping and Custom Builds

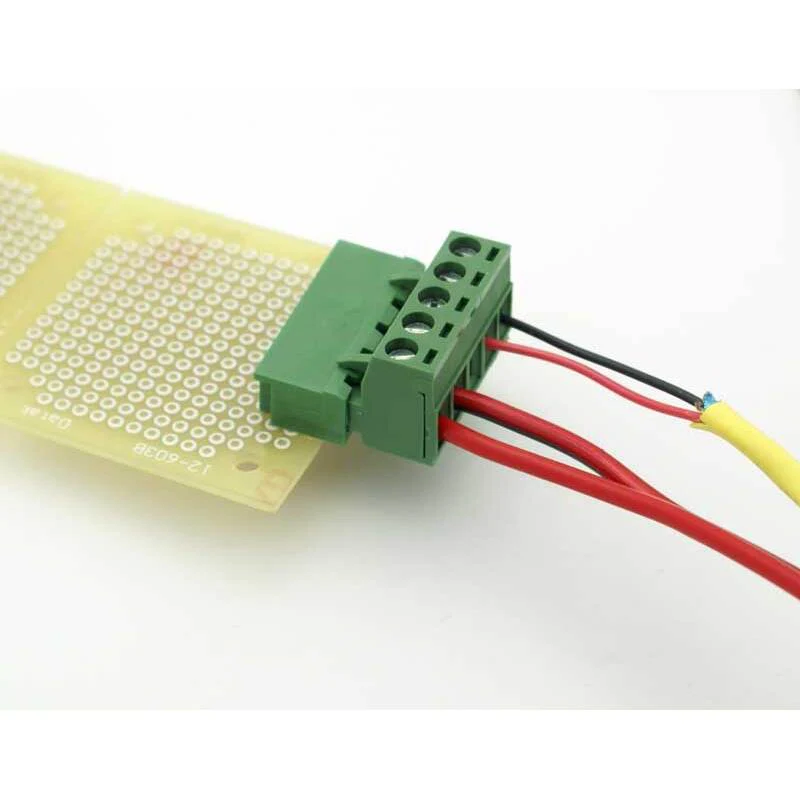

This 12 position horizontal PCB mount Phoenix connector is ideal for hobbyists, DIY electronics builders, and professionals who need secure, pluggable wiring solutions. Mates perfectly with standard Phoenix connector terminal plugs for flexible, modular designs.

Product Information

• Manufacturer: Philmore
• Manufacturer Part Number: 13-2812
• Connector Type: 12 position Phoenix style terminal block, PCB mount
• Alternative Names: Euro-Mag terminal block, Euro terminal block
