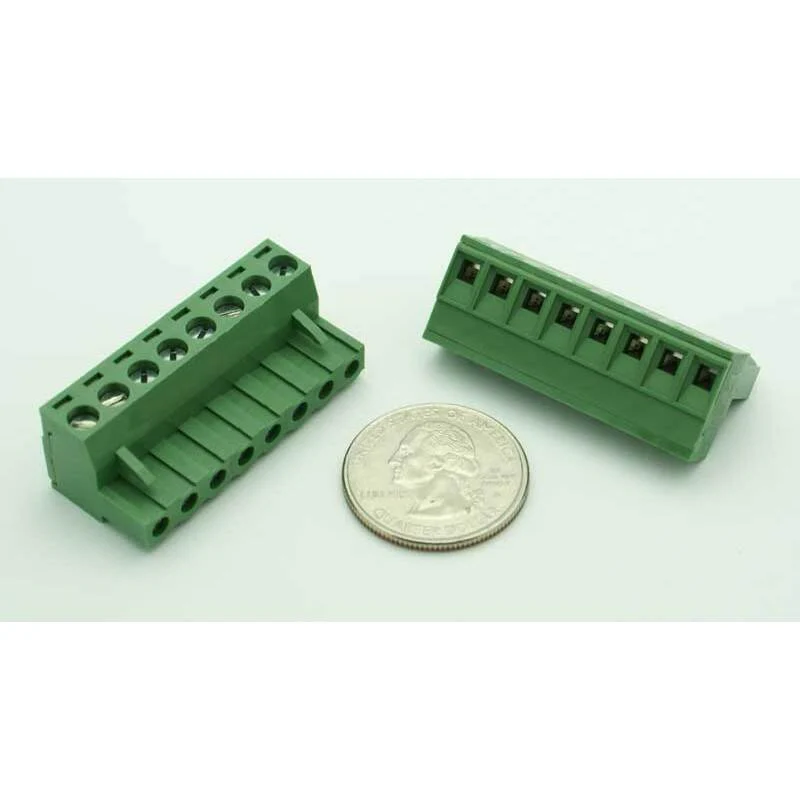

8 Position Phoenix Connector Plug – 12-22 AWG, 15A

Easy Wiring with the 8 Position Phoenix Connector Plug

This 8 position Phoenix connector plug is a simple way to connect and disconnect multiple wires quickly. Accepting wire sizes from 12 AWG to 22 AWG, it’s perfect for home wiring projects, electronics, and DIY repairs. With pluggable design, you can group your wires and plug them in—all without special tools.

Reliable and Safe 15A Phoenix Connector

This connector is rated for 15A at 300V, offering a trusted connection for your electrical needs. UL Listed and CSA Certified, it ensures dependable safety in everyday use. The compression screw terminals hold wires tight with a slot-drive screw, making installation fast and secure.

Features of the Philmore 13-2608 Horizontal Female Connector

• Mates with matching Phoenix connector sockets for easy system expansions
• Angled 90° horizontal design for clean cable management
• Quick pluggable terminal strip plug – unplug multiple wires in one step
• Commonly referred to as “Euro-Mag Terminal Blocks” or “Euro Terminal Blocks”
• Fits 0.2" (5.08mm) center spacing; compatible with 0.1" spaced protoboards

Technical Details – 8 Position Phoenix Connector Plug

• Manufacturer: Philmore
• Manufacturer Part Number: 13-2608
• Positions: 8
• Current/Voltage Rating: 15A @ 300V
• Certification: UL Listed, CSA Certified
• Wire Size Range: 12 AWG – 22 AWG
• Contact Material: Tin Plated Brass
• Housing Material: Type 6/6 Polymide 94V-0
• Screw Size: 3mm x 5mm Zinc Plated Steel, Slot Drive
• Operating Temperature: Max 105°C (221°F), Min -40°C (-40°F)

Why Choose This 8 Position Euro Terminal Block?

Whether you’re replacing old connectors or starting a new DIY project, this 8 position Phoenix connector plug for 12-22 AWG wire makes electrical tasks easy. Enjoy dependable connections, tool-free group disconnects, and safe, certified performance—ideal for hobbyists and everyday users alike.
