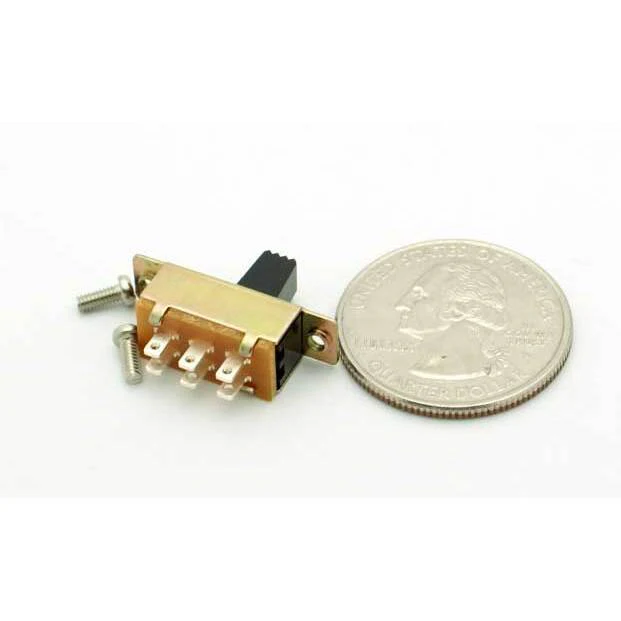

DPDT Miniature Slide Switch – On-On (or Off) 6A

Easy-to-Use Double Pole Double Throw Slide Switch

Upgrade or repair your electronics with this reliable DPDT miniature slide switch from Philmore (Part: 30-9164B). Perfect for everyday projects and home repairs, this compact switch is a favorite for DIYers and hobbyists needing a quick and easy switching solution.

Sleek, Compact, and Versatile Design

Enjoy a miniature slide switch that fits just about anywhere. The sturdy mounting flange features pre-tapped holes for simple panel installation with standard 2-56 screws. Note: Screws are usually included, but may sometimes be omitted by the manufacturer. If you need screws for certain, please let us know when you order.

Switches may have a black or gold/steel copper-wash case—case color is random based on availability.

On-On or On-Off Functionality

This double pole double throw slide switch (DPDT) offers true on-on switching and can easily serve as an on-off slide switch when you wire just one side. It’s ideal for power control, mode selection, and circuit routing in custom electronics or consumer device repairs.

Technical Specifications

• Configuration: DPDT (On-On) Slide Switch
• Current Rating: 6A @ 125VAC
• Terminal Type: Solder Terminals – For 24AWG and smaller wire
• Initial Contact Resistance: 5 mΩ (max)
• Insulation Resistance: 100 MΩ (min)
• Dielectric Strength: 1000V AC / 1 minute
• Contact Material: Bronze, Silver Plated
• Terminal Material: Copper, Silver Plated
• Dimensions: 7.5mm (W) x 15.32mm (L) x 18mm (H)
• Mounting Flange: 7.5mm x 23mm, screw holes 19mm apart
• Actuator Height: 7mm; Travel: 3.75mm
• Quantity: 1 DPDT Miniature Slide Switch (On-On/Off, 6A)

Why Choose This 6A Slide Switch?

This compact slide switch is engineered for durability, supporting up to 6A at 125VAC for dependable performance. The easy-to-install design and versatile DPDT configuration make it a must-have for any consumer electronics slide switch application. Whether you’re working on toys, radios, or custom hobby circuits, this switch delivers smooth actuation and excellent reliability.

Important Notes

• Screws may not always be included—please request them if required.
• Case color (black or gold/steel copper-wash) is random depending on manufacturer supply.
• Also known under Vetco part number: VUPN7962
