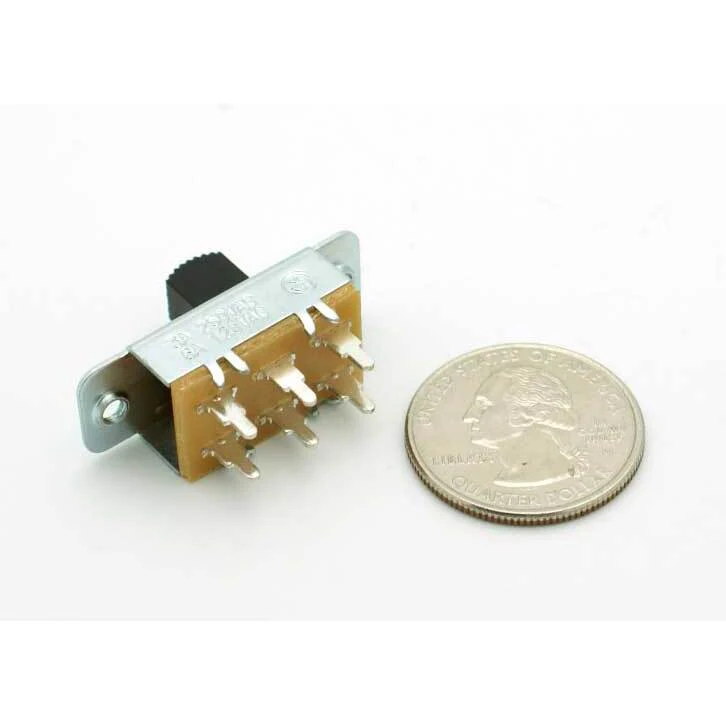

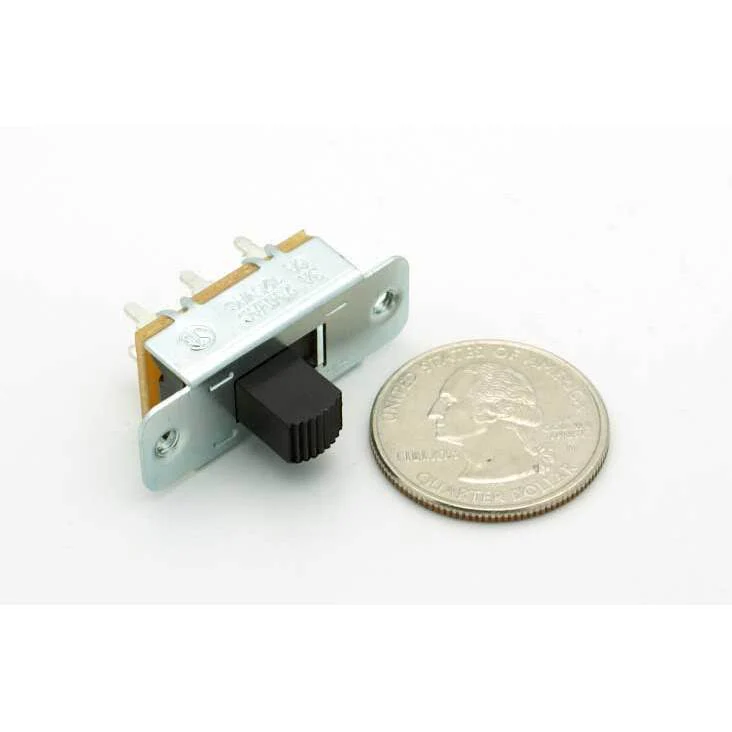

DPDT Slide Switch On-On (or Off) 6A – PCB Mount

Double Pole Double Throw Slide Switch for Everyday Projects

This versatile DPDT slide switch is ideal for repairing or building your own electronics. Whether you’re replacing an old on/off switch or adding a reliable PCB mount slide switch to your next DIY project, this component makes it simple and dependable. The double pole double throw slide switch allows you to control two circuits at once, making it perfect for prototypes, hobby projects, or home electronics upgrades.

Easy Installation & Convenient Mounting

The Philmore 30-9186B slide switch features a built-in flange with tapped 4-40 screw holes for easy mounting in a project box or on a panel. The compact size and PCB pins let you quickly add an on-on slide switch or use it as an on-off slide switch by connecting only two terminals. It’s a great fit for breadboards, control panels, toys, or custom electronics.

Technical Details & Specifications

• Configuration: DPDT (Double Pole Double Throw) – On-On (can be wired On-Off)
• Terminal Type: PCB Pins, Solder
• Current Rating: 6A @ 125VAC / 3A @ 250VDC
• Initial Contact Resistance: 30 Milliohms (Max)
• Insulation Resistance: 100 Meg Ohms (Min)
• Dielectric Strength: 1000V AC for 1 minute
• Contact Material: Bronze, Silver Plated
• Terminal Material: Copper, Silver Plated

Size & Mounting Information

• Overall Dimensions: 13.3mm Wide x 22.65mm Long x 24mm High
• Mounting Flange: 13.3mm x 35mm
• Screw Holes: on 30mm Centers (4-40 screws not included)
• Switch Actuator Height: 10mm, with 5mm travel

Why Choose This 6A DPDT Slide Switch?

This DPDT slide switch balances high-current capability and simple operation. The reliable design means you can use it in everything from robotics and model trains to power supplies and custom audio projects. The Philmore 30-9186B is a trusted choice for dependable switching on your circuit boards and control panels.

Notes & Warnings

• Always double-check your wiring. Only use within rated voltage and current limits.
• 4-40 mounting screws not included.

Includes: 1 x DPDT Slide Switch On-On (or Off) 6A - PCB Mount (Philmore 30-9186B)

Previously known under part number: VUPN7965
