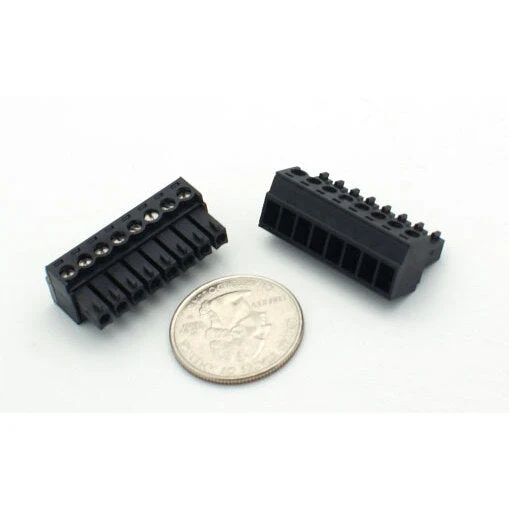

8 Position Mini-Phoenix Connector Plug for 18-24 AWG Wire
Easy-to-Use 8 Position Mini-Phoenix Connector Plug
The 8 Position Mini-Phoenix Connector Plug is a reliable, easy-to-use solution for connecting multiple wires. Designed for everyday consumers and DIY enthusiasts, this mini-Phoenix connector supports 18AWG to 24AWG wire, making it perfect for small electronics projects, home automation, and repairs.
Key Features of the Mini-Phoenix Connector
- 8 Position Connector Plug for organizing wires neatly and securely
- Compatible with 18-24 AWG wires, suitable for a wide range of low-voltage applications
- 8A Current Rating for dependable performance in circuits up to 8 amps
- Right Angle Design (90°) for easy access and compact installations
- Compression Screw Terminals ensure firm wire connections using a standard slotted screwdriver
- 3mm Pin Spacing fits Mini-Phoenix and Mini-Euro style sockets/jacks
- Tool-free plug and unplug functionality allows fast, easy maintenance or upgrades
How the 8 Position Connector Plug Works

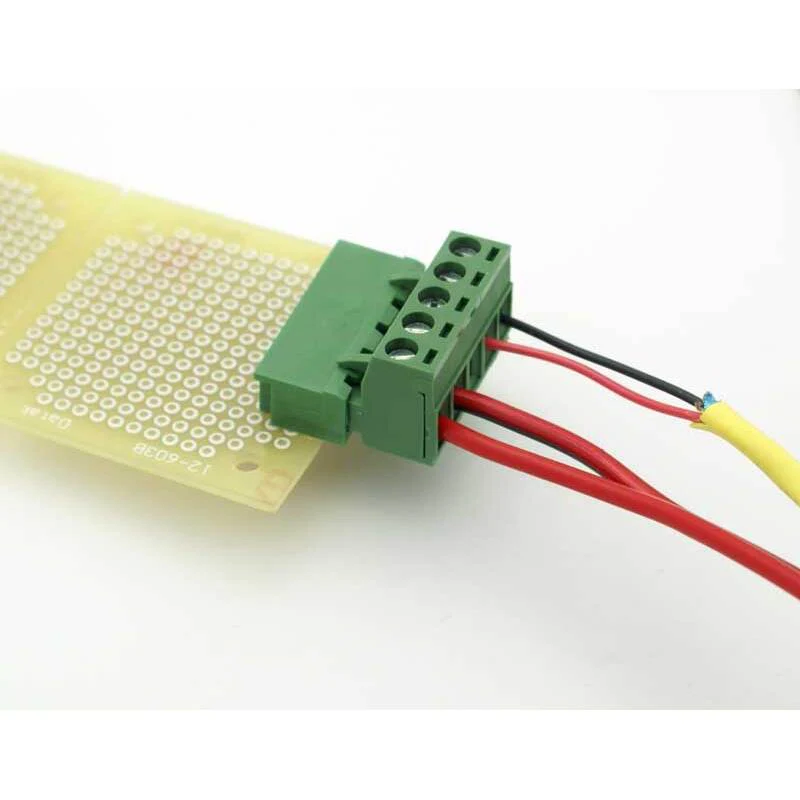

This mini-Phoenix connector plug uses compression screw terminals activated by a top-mounted slot-drive screw. Just insert your stripped wire and tighten the screw for a secure, reliable connection. When it’s time to disconnect or reorganize, simply unplug the entire block—no special tools needed, making it convenient for quick changes or troubleshooting.
Technical Information
- Number of Positions: 8
- Accepted Wire Sizes: 18-24 AWG
- Current Rating: 8A
- Pin Spacing: 3mm
- Connector Angle: 90° (right angle entry)
- Termination Type: Compression screw terminal
Applications for the Mini-Phoenix 8 Position Connector
Perfect for DIY electronics, home automation, prototyping, and small wiring projects, this 8 position connector plug offers trustworthy connections and simple setup. Commonly known as a Mini-Euro-Mag Terminal Block or Mini-Euro Terminal Block, it is ideal for quick, tool-free group wiring changes.
Why Choose Vetco Electronics?
Vetco Electronics offers carefully selected, quality connectors for hobbyists and everyday consumers. Our technical support team is ready to assist with product selection and wiring advice. Product ID for reference: VUPN8396.
